Quick Details
-
Application:
-
Hotel, Garage, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGXIN
-
Model Number:
-
FJI-G
-
Power (W):
-
1500
-
Voltage (V):
-
220-240
-
Capacity:
-
30L/50L/80L/100L
-
Heating element:
-
Red Copper
-
Working Pressure:
-
0.8 Mpa
-
Waterproof:
-
IPX4
-
Max working Temperatur:
-
75
-
Temp Cutting:
-
93
-
Inner tank:
-
Enamel Inner Tank
-
Thermostat:
-
Integrated Thermostat
-
Control type:
-
Mechanical Control
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Installation:
-
Wall Mounted
-
Application:
-
Hotel, Garage, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGXIN
-
Model Number:
-
FJI-G
-
Power (W):
-
1500
-
Voltage (V):
-
220-240
-
Capacity:
-
30L/50L/80L/100L
-
Heating element:
-
Red Copper
-
Working Pressure:
-
0.8 Mpa
-
Waterproof:
-
IPX4
-
Max working Temperatur:
-
75
-
Temp Cutting:
-
93
-
Inner tank:
-
Enamel Inner Tank
-
Thermostat:
-
Integrated Thermostat
-
Control type:
-
Mechanical Control
Product Description
Product Features

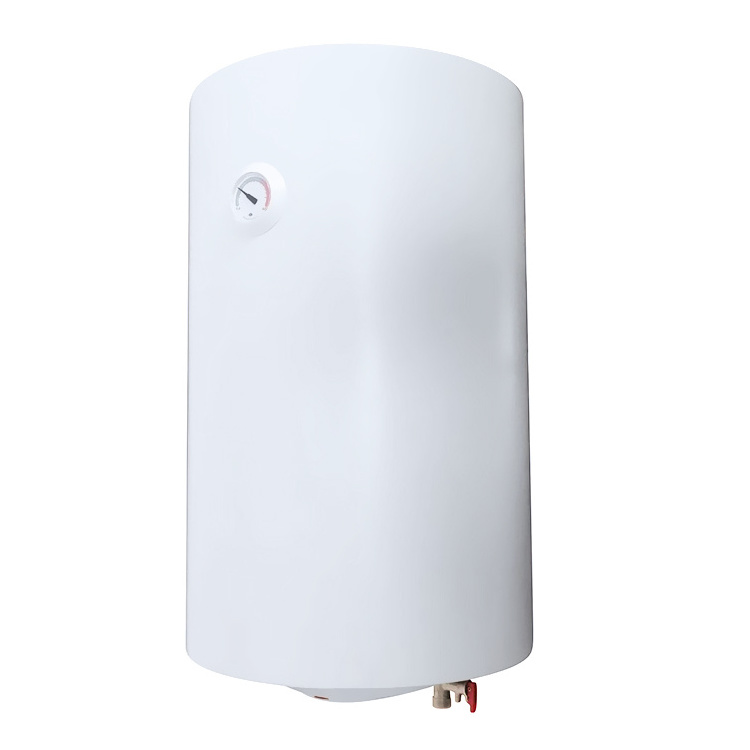

1. WALL HUNG CYLINDRICAL TYPE
2. SPCC STEEL TANK,10 BAR PRESSURE TESTED AND EXCLUSIVE VITREOUS ENAMEL COATING
3. HIGHLY EFFICIENT
THERMAL INSULATION AND ENVIRONMENTALLY SOUND
THERMAL INSULATION AND ENVIRONMENTALLY SOUND
4. ANTI-PROOF,ANTI-CORROSION DESIGN
5. INTERNAL REGULATION THERMOSTAT
6. 8 BAR SAFETY
VALVE WITH 1/2’’ COPPER OULET
VALVE WITH 1/2’’ COPPER OULET
7. DUAL POLE THERMAL CUT-OUTS
8. UNVENTED CONTROL KIT SUPPLIED WITH CYLINDER
|
Model No.
|
FJI-30G
|
FJI-50G
|
FJI-80G
|
FJI-100G
|
|||
|
Capacity
|
30
|
50
|
80
|
100
|
|||
|
Type
|
Vertical Circular Model Number 1:Mechanical special offer type
|
|
|
|
|||
|
Rated Power
|
1500W
|
|
|
|
|||
|
Rated Voltage
|
220V ~240V
|
|
|
|
|||
|
Control type
|
Mechanical Control
|
|
|
|
|||
|
Adjustable water temperature
|
/
|
|
|
|
|||
|
Heating element material
|
Red Copper
|
|
|
|
|||
|
Thermostat
|
Integrated Thermostat
|
|
|
|
|||
|
Inner tank material+coating
|
Enamel Inner Tank
|
|
|
|
|||
|
Inner tank thickness
|
30/50L： 1.5mm
|
|
80/100L： 1.8mm
|
|
|||
|
Inner tank diameter
|
30L：Ф300mm
|
50/80/100L： Ф410mm
|
|
|
|||
|
Foam layer thickness
|
20mm
|
|
|
|
|||
|
Magnesium rod specifications
|
φ20*200
|
|
|
|
|||
|
Outer Shell material
|
SPCC+Spray
|
|
|
|
|||
|
Eend cover material
|
PP/Injection Molded Matte
|
|
|
|
|||
|
Safe Care
|
/
|
|
|
|
|||
|
Leakage protective line
|
/
|
|
|
|
|||
|
Power cord
|
European Standard Plug/10A Poer Cord
|
|
|
|
|||
|
Package
|
Brown Carton
|
|
|
|
|||
|
Waterproof
|
IPX4
|
|
|
|
|||
|
Safe Care
|
/
|
|
|
|
|||
|
Product size
|
30L:φ340x570
|
50L:φ450x570
|
80L:φ450x790
|
100L:φ450x900
|
|||
|
Packing size
|
30L:405x405x620
|
50L:515x515x620
|
80L:515x515x840
|
100L:515x515x950
|
|||
|
Net Weight
|
30L:13.5kg;
|
50L:16.5kg
|
80L:23.5kg;
|
100L:27.5kg
|
|||
|
Gross Weight
|
30L:16.5kg;
|
50L:19.5kg
|
80L:27.5kg;
|
100L:31.5kg
|
|||
FAQ
Q: Is your company a trading company or a factory ?
A: We are a professional factory manufacturing electric water heaters.
Q: Where is your company ?
A: Our company quarter is located in Shengzhou,shaoxing China.But plant in both Zhejiang and Guangdong.
Q: What certification do you have ?
A: CE, CB, ROHS, and CCC.
Q: What is your sample policy ?
A: Sample and freight is paid temporarily and will be returned back to you based on your normal order.
Q: Can I have my own brand on product ?
A: Yes, that's ok.
Q: How about delivery time ?
A:Normal order within 30 days, trial order within 15 days, sample order within 7 days.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight.
We'll show you the photos of the products and packages before you pay the balance.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
