maintained conveniently precast 3d concrete made with house printer for sale

maintained conveniently precast 3d concrete made with house printer for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $87000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 3*6m, 3.3*6.6m, 3.6*7.2m

Storage Weight:: 80 ton

Tank Diameter:: 280cm

Tank Volume:: 60 cubic meter

Tank Total Height:: 1105cm

Straight Segment height:: 900cm

Steel Thickness:: 6mm

Weight:: 3600kg

Trestle Height:: 300cm

Quick Details

Place of Origin:: China

Brand Name:: TC

Application:: civil houses and public buildings

Dimension(L*W*H):: 3*6m, 3.3*6.6m, 3.6*7.2m

Storage Weight:: 80 ton

Tank Diameter:: 280cm

Tank Volume:: 60 cubic meter

Tank Total Height:: 1105cm

Straight Segment height:: 900cm

Steel Thickness:: 6mm

Weight:: 3600kg

Trestle Height:: 300cm

Product Description

We need six machines to finished the production

Parameters	Concrete Mixer A (Type: TC8041)	Concrete Mixer B (Type: TC8042)
Feed Volume	800L	1600L
Discharge Volume	500L	1000L
Efficiency	25 m3/h	50 m3/h
Rotating Speed	35 r/min	25 r/min
Aggregate Size	Max 80mm	Max 80mm
Blades	14 pcs	20 pcs
Voltage	380 v	380 v
Power	18.5 kw	37 kw
Machine Size	428279651mm	877344654cm
Weight	3900 kg	8750kg

Parameters	Batching Machine A (Type: TC8051)	Batching Machine B (Type: TC8052)
Weighing Volume	800L	1200L
Storage Hopper	5m3	7m3
Efficiency	48m3/h	60m3/h
Batching Error	±1%	±1%
Max Weighing Value	3000kg	4000kg
Transfer Speed	1m/s	1.25m/s
Voltage	380V	380V
Power	12kw	16kw
Machine Size	560183270cm	900250350cm
Weight	2450kg	4500kg

Parameters	Assembled Storage Tank A (Type: TC8061)	Assembled Storage Tank B (Type: TC8062)
Storage Weight	80 tons	150 tons
Volume	60 m3	111 m3
Diameter	280cm	320cm
Straight Segment height	900cm	1350cm
Total Height	1105cm	1584cm
Trestle Height	300cm	300cm
Steel Thickness	6mm	8mm

Parameters	CNC Rebar Processing Machine (Type: TC8030)
Processing Speed	20-40m/min
Processing Diameter	4-14mm Rebar
Rebar Type	Round Rebar, Deformed Rebar
Principle	Hydraulic
Control System	CNC
Voltage	380v
Power	9kw
Machine Size	20075110cm
Weight	900kg

Parameters	House Forming Machine (Type: TC8010)
Principle	Hydraulic
Automation	Semiautomatic
Production Method	RC Filling
Forming Time	2-3Hours
Machine Material	Full Steel
Side Sheet	Slidable
Inner Box	Shrinkable
Weight	17000-23000KG
Size	36m, 3.36.6m, 3.6*7.2m
Can Be Customized	Yes

Parameters	House Quick-solidifying Machine A (Type: TC8021)	House Quick- solidifying Machine B (Type: TC8022)
Efficiency	500kg/h Evaporation	1000kg/h Evaporation
Preset pressure	0.7Mpa	0.7Mpa
Temperature	170 celsius	170 celsius
Voltage	380V	380V
Power	1.4kw	3.3kw
Weight	2500kg	4500 kg
Size	Diameter 1m, Height 2.6m	Diameter 1.5m, Height 2.8m

Concrete modular house features

1)The cost of building houses is low
2)Extreme speed of construction
3)Earthquake resistance
4)Wind-resistant.
5)Long life

6)Fire retardant
7)Sound insulation
8)Insulation
9)Energy-saving and environmentalprotection
10)Flexible assembly

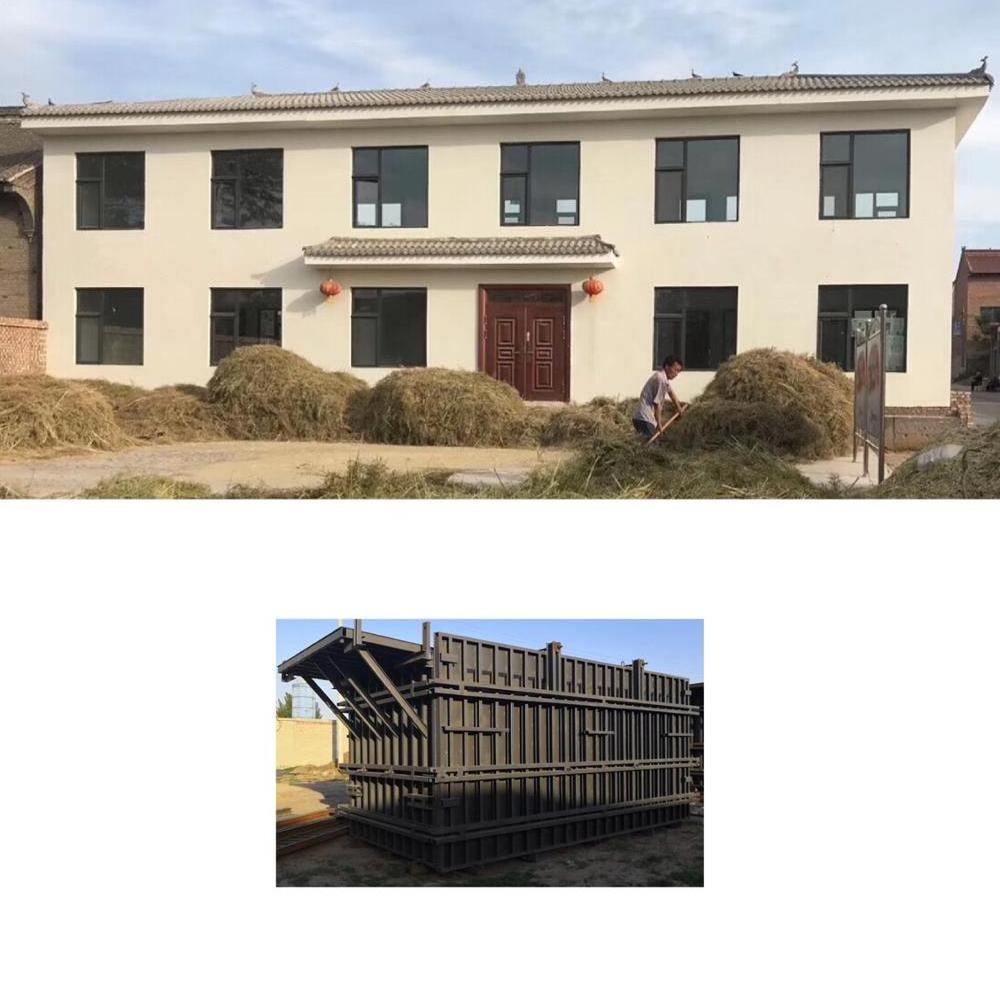

Detailed Images

Accessories And Tools:

Concrete Hopper 、Welder 、Wire Tope 、U-shaped Buckle 、Vibrating Rod、Cover Box .... And Others.

The production process of concrete modular house

1.Processing the rebar by CNC rebar Machine ,and weave the rebar （reinforcement）into grid and cover it on the inner chassis of forming machine.

2.Producing the concrete by the concrete machines.

3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full

4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .

5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.

We can purchase tool equipment for our customers or can be search and purchase locally

Advantage

It is characterized by earthquake resistant and wind resistant, moisture proof and fireproof , sound insulation and heat insulation.

Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world.

We have three Scale production line corresponds to different productivity for your reference .

Small

Total Price: USD87,000

Productivity:
600 Units Modules(House) / Year

Configuration:
2 sets of House Forming Machine 1 set of House Quick solidifying Machine A 1 set of CNC Rebar Processing Machine
1 set ofConcrete Mixer A
1 set of Batching Machine A
1 set Assembled Storage Tank A
Accessories and Tools
Engineer's on-site debugging equipment and technical training (30days)

Middle

Total Price: USD143,000

Productivity:
1200 Units Modules (House) / Year

Configuration:
4 sets of House Forming Machine 1 set of House Quick solidifying Machine B
2 set of CNC Rebar Processing Machine
1 set of Concrete Mixer A
1 set of Batching Machine A
1 set of Assembled Storage Tank A
Accessories and Tools
Engineer's on-site debugging equipment and technical training (40days)

Large

Total Price: USD266,000

Productivity:
2400 Units Modules (House) / Year

Configuration:
8 sets of House Forming Machine
2 sets of House Quick solidifying Machine B
3 sets of CNC Rebar Processing
Machine
1 set of Concrete Mixer B
1 set of Batching Machine B
1 set of Assembled Storage Tank B
Accessories And Tools
Engineer's on-site debugging equipment and technical training (50days)

Our Service

We will provide:

1)debugging equipment and technical training,

2)teaching customers to produce, design and assemble houses, let our client produce and sell the house locally

Packing&Shipping

Company Introduction

Hubei Tengcang building material technology company have built a new five-star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff, are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise

FAQ

1.What are your terms of delivery?

We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost
effective for you.

2.Are you factory or trading company?
We are manufacturers

3. How big land I need to get for build a factory?
The land size should be 80m*40m at least.

4. Does the concrete module can be customized to be any size?
No, at present, the general sizes of one concrete module are:

Width*length: 3*6m, 3.3*6m, 3.3*6.3m, 3.3*6.6m, 3.5*7m, 3.6*6m, 3.6*6.6m, 3.6*7.2m.
Height: 2.8m,3m,3.2m,
Length of eaves: 0-1.5m.

Contact information

Cynthia Chen

Hubei Tengcang Building Materials Technology Co., Ltd.
Address: Xingbei Road, Sancha Town, Xiaonan District, Xiaogan, Hubei, China (Mainland)
Mobile/Wechat/WhatsApp:+86 13692109735
