Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Piesia
-
Model Number:
-
N-BOX-T6
-
Operating System:
-
Win10,11;Linux
-
Chipset Type:
-
Intel X86
-
Product Name:
-
Mini PC Computer
-
Chipset:
-
Baytrail-I/D/M series Processor single chip
-
Memory:
-
1 *204pin SODIMM,DDR3 1333MHz,up to 16GB
-
Type:
-
Embedded Computer
-
LAN:
-
2X I225/I211 high-performance Gigabit network card
-
CPU:
-
Intel Gemini Lake single
-
Chassis:
-
Fanless
-
COM:
-
2*DB9 COM,2*RS-232 or 4COM(RS232)
-
Display port:
-
1*HD+1*VGA Port
-
material:
-
Alluminum Alloy+ Iron
Quick Details
-
Use:
-
For Gaming
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
DDR3
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Piesia
-
Model Number:
-
N-BOX-T6
-
Operating System:
-
Win10,11;Linux
-
Chipset Type:
-
Intel X86
-
Product Name:
-
Mini PC Computer
-
Chipset:
-
Baytrail-I/D/M series Processor single chip
-
Memory:
-
1 *204pin SODIMM,DDR3 1333MHz,up to 16GB
-
Type:
-
Embedded Computer
-
LAN:
-
2X I225/I211 high-performance Gigabit network card
-
CPU:
-
Intel Gemini Lake single
-
Chassis:
-
Fanless
-
COM:
-
2*DB9 COM,2*RS-232 or 4COM(RS232)
-
Display port:
-
1*HD+1*VGA Port
-
material:
-
Alluminum Alloy+ Iron
Product Paramenters
Main features:
◆ Embedded Design Intel Baytrail-D/I/M series processor;
◆ Embedded Design Intel Baytrail-D/I/M series processor;
◆ DDR3 SODIMM 204 Socket RAM socket Max support8G;
◆ Onboard 32/64/128G EMMC chip(Optional);
◆ Mini-PCIE socket,Support wifi module,and SIM card socket,support 3G Module;
◆ Rich I/O Interface,include 2*USB ports,4*Intel I211 Lan card,1*HD-MI,1*RJ45 RS232 Interface;
◆ Fanless Design,Noiseless design,Stable and efficient;
◆ 12V DC power supply,Power supply is simple and convenient
|
Processor System
|
SOC Embedded，Intel Baytrail-M/D series，J1900/J1800
|
|
|
EFI BIOS
|
|
Memory
|
1 *204pin SO-DIMM，DDR3 1333MHz，up to 16GB
|
|
Storage
|
1 *SATA3
|
|
|
1 *M-SATA Slot
|
|
Graphics
|
1 *VGA，up to 1920x1200
|
|
|
Intel HD Graphics
|
|
I/O Interface
|
1 *DC jack
|
|
|
1 *VGA
|
|
|
2 *RJ45
|
|
|
5 *USB2.0，1 *USB3.0
|
|
|
4 *COM（RS232）
|
|
|
1 *Mic-in，1 *Line-out jack
|
|
Others
|
LAN Controller:2 *Intel I211AT Giga LAN or i225 LAN Card
|
|
|
Audio:Realtek ALC662
|
|
|
Super I/O: ITE8786E
|
|
|
8bit GPIO
|
|
|
Watchdog: 0-255sec
|
|
|
Thermal: Fanless
|
|
Power
|
DC12-19V，60W
|
|
Environment |
Operating Temp: -20℃ ~ +60℃
|
|
|
Storage Temp: -40℃ ~ +85℃
|
|
|
Operating Humidity: 5% ~ 90%
|
|
|
Storage Humidity: 5% ~ 90%
|
|
OS Support
|
Windows7，Windows8.1，Windows10，Linux
|
|
Dimensions
|
134 x 126 x 46.8mm
|
|
Net Weight
|
0.5Kg
|
|
Certifications
|
CE，FCC，ROHS
|

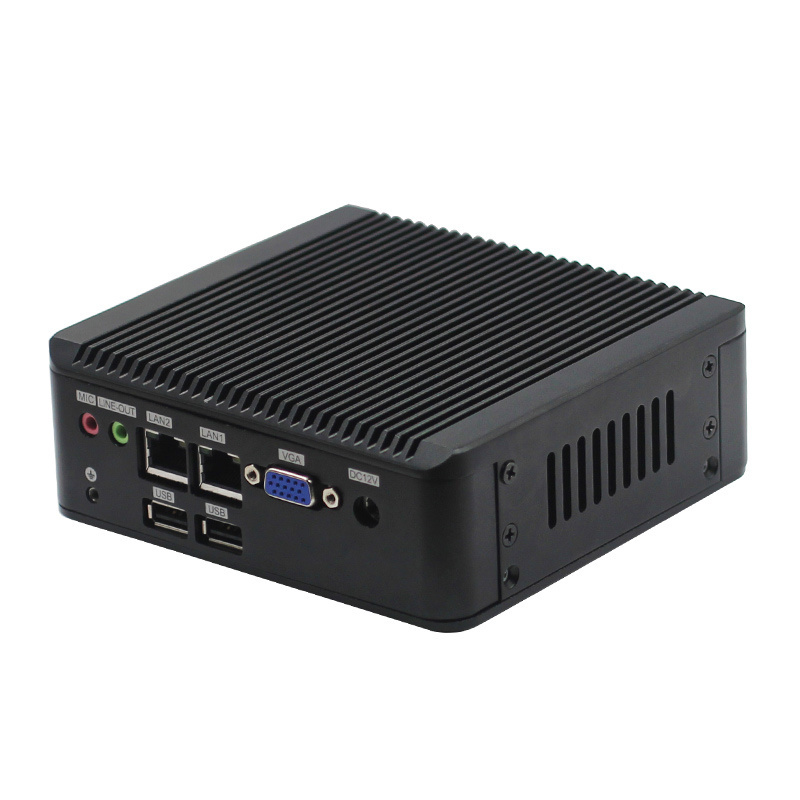

Details Images
