The display shows the weight and counts automatically.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
80
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HZPK
-
Dimension(L*W*H):
-
48*74*141CM
-
Bag Width:
-
50-100mm
-
Film Width:
-
50-200mm
-
Bag Height:
-
50-150mm
-
Sealing type:
-
Back sides sealing
-
Filling range:
-
1-100g
-
Accuracy:
-
±0.2g
Quick Details
-
Function:
-
FILLING, Sealing, counting
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
80
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HZPK
-
Dimension(L*W*H):
-
48*74*141CM
-
Bag Width:
-
50-100mm
-
Film Width:
-
50-200mm
-
Bag Height:
-
50-150mm
-
Sealing type:
-
Back sides sealing
-
Filling range:
-
1-100g
-
Accuracy:
-
±0.2g
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 13 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
Product Description
|
Voltage
|
220V 50-60Hz
|
|
Total Power
|
≤1.5kw
|
|
Packing Speed
|
5-25bags/min
|
|
Bag Width
|
50-90mm
|
|
Bag Height
|
50-150mm
|
|
Film Width
|
50-200mm
|
|
Packing Volume
|
1-100g
|
Introduce:

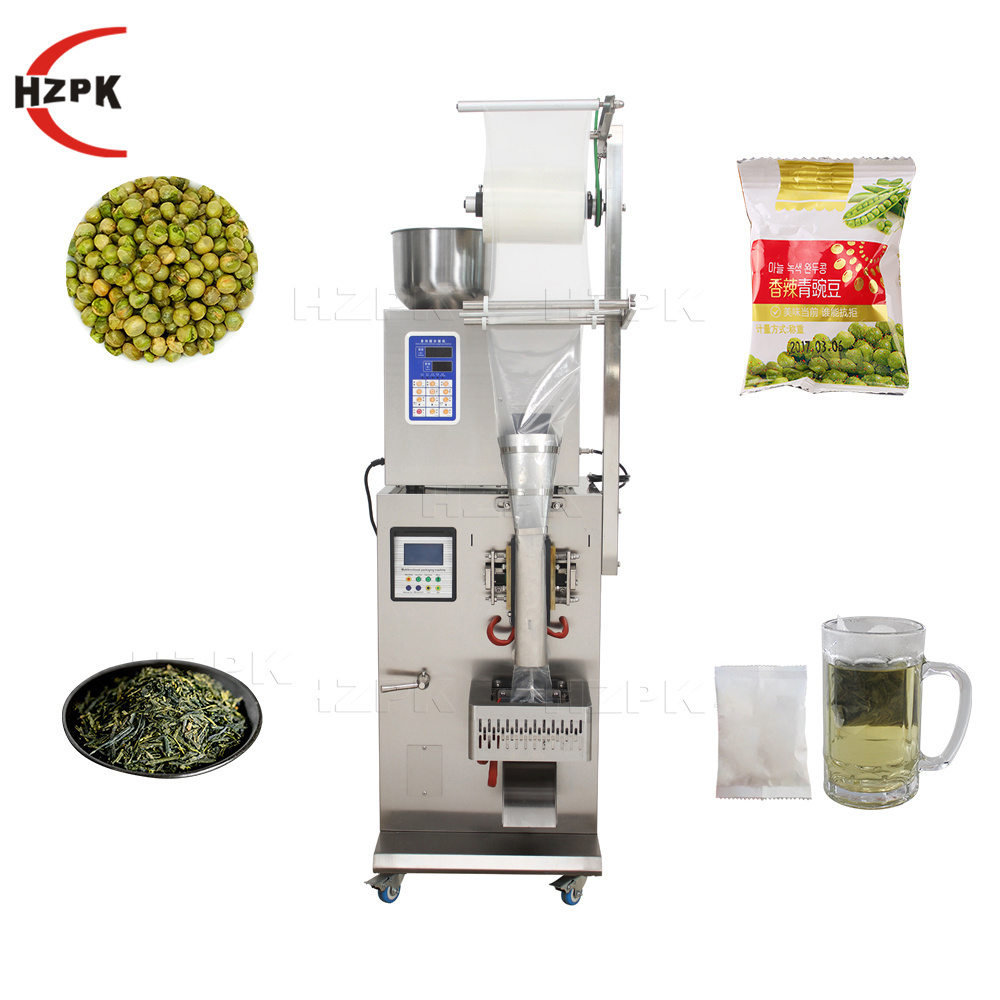

Automatic filling and sealing machine is suitable for
granule
, such as grains, tea, spices, coffee, etc.
Suitable film material: plastic film, aluminum foil,filter paper.
Suitable industries: food, cosmetics, daily chemicals, etc.
Features:
1. Auto complete Bag-making, filling, sealing, cutting and counting.
2. Controlled by microcomputer and simple buttons, easy to operate.
3. The machine body is made of stainless steel, which is durable and food grade.
We provide back sealing, three side sealing, four side sealing and packaging machines suitable for powder, liquid, paste and granule.
Details Images
Weighing Filling Machine
The machine adopts vibration feeding and weighing quantitative, with high filling accuracy.
Vibrating plate
Vibrating plate made of 304 stainless steel,with is food grade.
The feeding of materials is driven by two different vibration frequencies, with high accuracy and speed.
Packing range:1-100g (
customizable)
Accuracy: ±0.2g
Control System
Controlled by microcomputer and simple buttons, easy to operate
.
Sealing temperature, film pulling speed and interval time can all be adjusted as required.
Bag Forming Structure
The film is passed through a custom formed structure, the sides of the film are overlapped, and the bag is formed after sealing.
One forming structure is only suitable for one width of film, if there are multiple width films, multiple forming structures need to be customized.
Vertical Sealing
After the bag is formed, it is automatically sealed vertically.
Sealing length: 50-150mm
If you need a larger size, you can
contact us for customization
contact us for customization
Guide Rail Structure
Crafted with precision and efficiency in mind, our system adopts an innovative guide rail structure. This design ensures that the sealing strip moves seamlessly in parallel, elevating the sealing effectiveness to new heights and creating an impeccably flat seal.
Horizontal Sealing + Cutting
Horizontal sealing and automatic cutting
Film
width: 50-200mm
The standard model is the three-side seal type, if you need to customize the back seal type, please contact us.
