Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
450x350x350mm
-
Application:
-
laboratory
-
Weight (KG):
-
34 KG
-
Max.Working Width(mm):
-
32.5 mm
-
keywords:
-
Low Speed Diamond Saw
-
Speed Range:
-
Variable 0-600 rpm with LED digital display
-
sample holder:
-
two
-
cutting width:
-
1mm ~ 24mm
-
cutting depth:
-
32.5mm max.
-
Power(W):
-
1000W
-
warranty:
-
1 year
-
SiC blade:
-
4" x 0.35 mm x 0.5"
-
Al2O3 blade:
-
4" x 0.35 mm x 0.5"
-
diamond blade:
-
4" x 0.35 mm x 0.5"
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
United States
-
Showroom Location:
-
United States
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CYKY
-
Usage:
-
cut samples
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
450x350x350mm
-
Application:
-
laboratory
-
Weight (KG):
-
34 KG
-
Max.Working Width(mm):
-
32.5 mm
-
keywords:
-
Low Speed Diamond Saw
-
Speed Range:
-
Variable 0-600 rpm with LED digital display
-
sample holder:
-
two
-
cutting width:
-
1mm ~ 24mm
-
cutting depth:
-
32.5mm max.
-
Power(W):
-
1000W
-
warranty:
-
1 year
-
SiC blade:
-
4" x 0.35 mm x 0.5"
-
Al2O3 blade:
-
4" x 0.35 mm x 0.5"
-
diamond blade:
-
4" x 0.35 mm x 0.5"
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
United States
-
Showroom Location:
-
United States
-
Certification:
-
CE

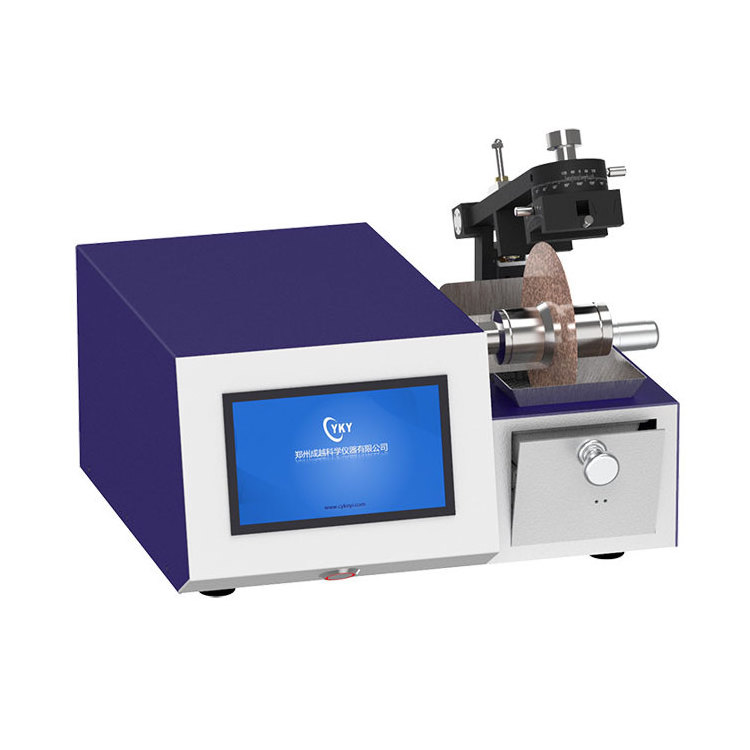

Compact precision low speed diamond wheel saw for cutting fragile materials
Introduction of mini diamond saw machine
CY-CM-150 is a low-speed diamond saw, which equips with the advanced digital micrometer and digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for britt le crystals, ceramics, TEM samples, and even plastic samples.
Specification of mini diamond saw machine
|
Voltage and Power |
AC 110V/220V switchable for worldwide usage 110VDC Motor 8Amp fuse installed |
|
Speed Range |
Variable 0-600 rpm with LED digital display |
|
Cutting Width & Depth |
The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. 32.5mm max. cutting depth (when using 35mm Dia. blade flange) |
|
Diamond Blades |
Three blades are included for cutting various materials SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys. Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel. Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials |
|
Sample Holder & Mini-vise |
Two angle adjustable sample holder is included One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max. |
|
Balancing Weights |
Front (CY-CM150-03): 0.75 lbs
|
|
Warranty |
one years limited with lifetime support (not including rusted parts due to inadequate storage conditions) |
More photos of mini diamond saw machine
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A. T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A. 1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
