Quick Details
-
Warranty:
-
5 Years
-
Certification:
-
ISO 9001:2015
Quick Details
-
Place of Origin:
-
Pulau Pinang, Malaysia
-
Brand Name:
-
ALGATEC
-
Size:
-
500 X 42 X 26 (mm)
-
Warranty:
-
5 Years
-
Certification:
-
ISO 9001:2015
Product Description

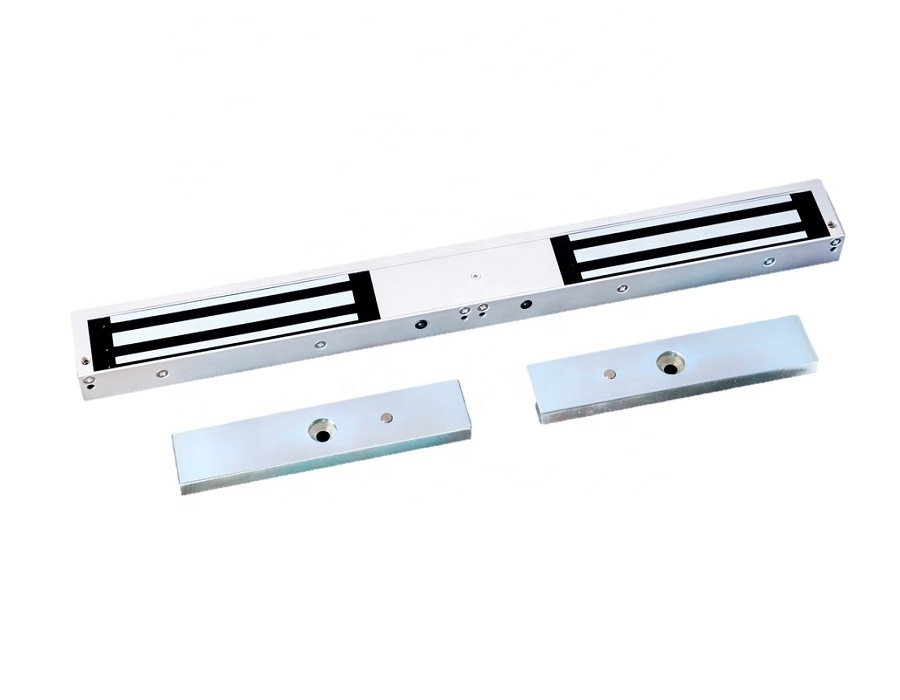

- 600lbs Double Series Surface EM locks were designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation.
- Fail Safe,Robust, Durable & Efficient.
- Zero Residual Magnetism.
- Dual Voltage Input, 12Vdc or 24Vdc selectable.
- Ease of installation with low maintenance & low energy consumption.
- Operate quietly & care free .
- Versatile mounting brackets: U1-275, ZL-275, LS-275, GG-275, ZLC-275, ZLC-275-G, ZLDC-275-G, LSDC-275-G, AHM-275, AB-275 are suitable for 600lbs double leaf electromagnetic lock.
Features
1) Lock Status Monitoring Function with Inbuild Bond Sensor.
2) Zero Residual Magnetism with Instant Release Feature.
3) LED Indication: Green Indicates Door Locked; Red Indicates Door Released.
4) Dual Voltage Input: 12/24 Vdc Selectable.
5) Holding Force up to 600lbs.
Specification
|
Item
|
Details
|
|
Place of Origin
|
Malaysia
|
|
Brand Name
|
ALGATEC
|
|
Model Number
|
UL275-DL
|
|
Certification
|
ISO 9001:2015, CE Certified, RoHS Compliant, TUV Performance Test,
Fire Resistance Performance Test
|
|
Size
|
500 X 42 X 26 (mm)
|
|
Warranty
|
5 Years
|
|
Application
|
Double Series EM Lock is for door access control system which serve in
diverse applications such as corporate building, retail, industrial, hospital, transportation, finance institution and military facility.
It is a surface mounted EM Lock that ideal for double leaf wooden door,
glass door, aluminium door frame and etc.
|
|
Features
|
UL275-DL
|
|
Lock Status Monitoring
|
Yes
|
|
Holding Force
|
Up to 600lbs x 2
|
|
Magnet Size
|
500 x 42 x 26 mm
|
|
Armature Size
|
180 x 38 x 11 mm
|
|
Current Drain
|
480mA±10%/12Vdc, 240mA±10%/24Vdc
|
|
Operating Temperature
|
(-10 to 55)°C, (14 to 131)°F
|
|
Housing Finishing
|
Anodized Aluminium Housing
|
|
Est. Weight
|
3.7kg
|
Suitable Mounting Brackets Selections
U1-275
ZL-275
