Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
thread rolling machines
-
Spindle speed:
-
36,47,60,78r/min
-
Length of thread:
-
unlimited
-
Hydraulic power:
-
2.2kw
-
Function:
-
Rebar Thread Rolling Screw
-
Certification:
-
ISO 9001
-
After-sales Service Provided:
-
Online Technical Support
-
Package:
-
Wooden Package
-
Advantage:
-
Easy Operation High Performance
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YINUO
-
Weight (KG):
-
1700
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
thread rolling machines
-
Spindle speed:
-
36,47,60,78r/min
-
Length of thread:
-
unlimited
-
Hydraulic power:
-
2.2kw
-
Function:
-
Rebar Thread Rolling Screw
-
Certification:
-
ISO 9001
-
After-sales Service Provided:
-
Online Technical Support
-
Package:
-
Wooden Package
-
Advantage:
-
Easy Operation High Performance
Product Description

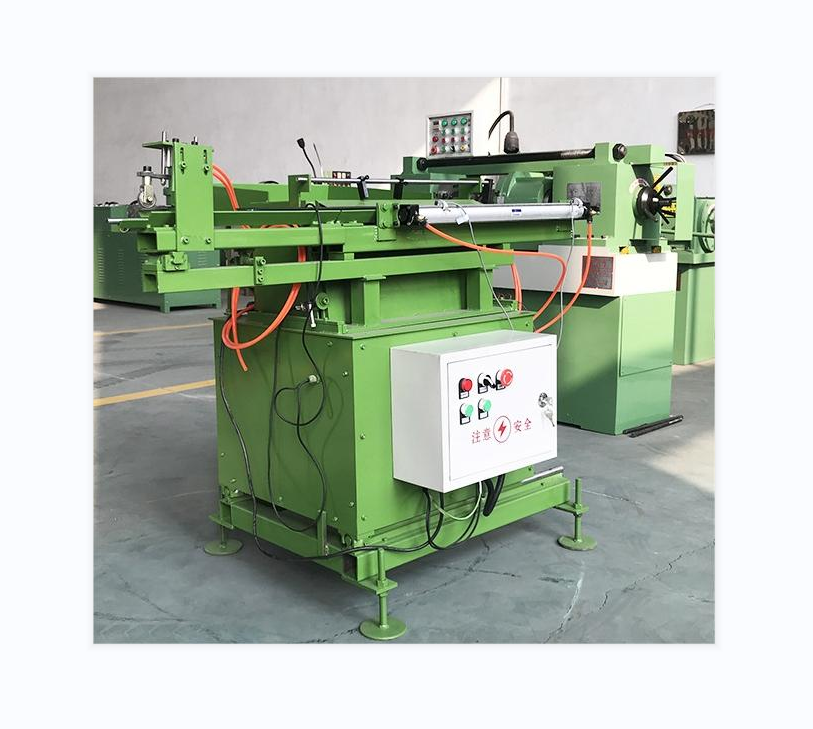

Z28-80 Thread rolling machine
Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..
Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/mm².
The cold rolling process of wire rolling is a kind of non-cutting machining, which can improve the internal and surface quality of the work piece, and the radial compressive stress generated during processing can improve the fatigue strength and torsional strength of the work piece.
Product highlights:
1. It can make the thread form of good quality. And it has the high precision.
2. It can be used to process screw and rebar. The rebar processed by the machine has the good overall mechanical. It can make the tensile strength increased by 20%-30%, the fatigue strength increased by 40%-60%, corrosion resistance increased by 50%-200%. Mechanical properties of rebar connector reached and more than international standards.
3. It works safe and reliable. It can works all day long, and can save steel and energy.
4. It adopt innovative design and advanced technology, also it has the high precision and easy to operate.
Specification
|
Model
|
40
|
80
|
160
|
185
|
200
|
|
Rolled thread diameter
|
6-30mm
|
50mm
|
60mm
|
80mm
|
80mm
|
|
Rolled thread pitch
|
0.5-3.5mm
|
6mm
|
20mm
|
6mm
|
6mm
|
|
Thread Roller Outer Diameter
|
120-170mm
|
4mm
|
6mm
|
160mm
|
160mm
|
|
Thread Roller Aperture
|
54mm
|
0.5mm
|
54mm
|
210mm
|
210mm
|
|
Rolling wheel thickness
|
100mm
|
100mm
|
100mm
|
250KN
|
250KN
|
|
Rolling pressure
|
120KN
|
120KN
|
120-170mm
|
|
210MM
|
|
Spindle tilt angle
|
-3
|
-3
|
-3
|
-5
|
-5
|
|
Spindle speed (RPM)
|
34.43.57.72
|
34.43.57.72
|
37.46.63.79
|
37.46.63.79
|
37.46.63.79
|
|
Spindle power
|
4kw-4
|
4kw-4
|
7.5kw-4
|
7.5kw-11kw
|
7.5kw-11kw
|
|
hydraulic power
|
2.2kw-4
|
2.2kw-4
|
2.2kw-4
|
2.2kw
|
2.2kw
|
|
cooling pump
|
125w
|
125w
|
120w
|
90w
|
90w
|
|
Machine quality
|
1000kg+-30kg
|
1700kg+-50kg
|
1820kg+-50kg
|
2000kg
|
2000kg
|
|
Dimensions
|
1480*1500*1050mm
|
1520*1550*1445mm
|
1520*1550*1445mm
|
1520*1550*1445mm
|
1520*1550*1445mm
|
