Quick Details
-
Voltage:
-
380V
-
Power:
-
7.5-11kw
-
Weight:
-
300kg
-
Dimension(L*W*H):
-
2200*500*1200 mm
-
Warranty:
-
1 year
-
Product name:
-
dry corn grinder
-
Name:
-
homemade corn grinder
-
Raw material:
-
Wheat Maize Corn Rice
-
Final products:
-
Maize Grits
-
Function:
-
Making Corn Powder
-
Application:
-
grinder corn
-
Type:
-
Grain Flour Grinder Machine
-
Processing type:
-
Single Equipment
-
Used for:
-
Wheat Flour Mill Milling Machine
-
Color:
-
Blue/light green
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
megaplant
-
Production Capacity:
-
98%
-
Voltage:
-
380V
-
Power:
-
7.5-11kw
-
Weight:
-
300kg
-
Dimension(L*W*H):
-
2200*500*1200 mm
-
Warranty:
-
1 year
-
Product name:
-
dry corn grinder
-
Name:
-
homemade corn grinder
-
Raw material:
-
Wheat Maize Corn Rice
-
Final products:
-
Maize Grits
-
Function:
-
Making Corn Powder
-
Application:
-
grinder corn
-
Type:
-
Grain Flour Grinder Machine
-
Processing type:
-
Single Equipment
-
Used for:
-
Wheat Flour Mill Milling Machine
-
Color:
-
Blue/light green
-
Certification:
-
CE ISO
I. Corn flour milling machine / Maize grits making machine

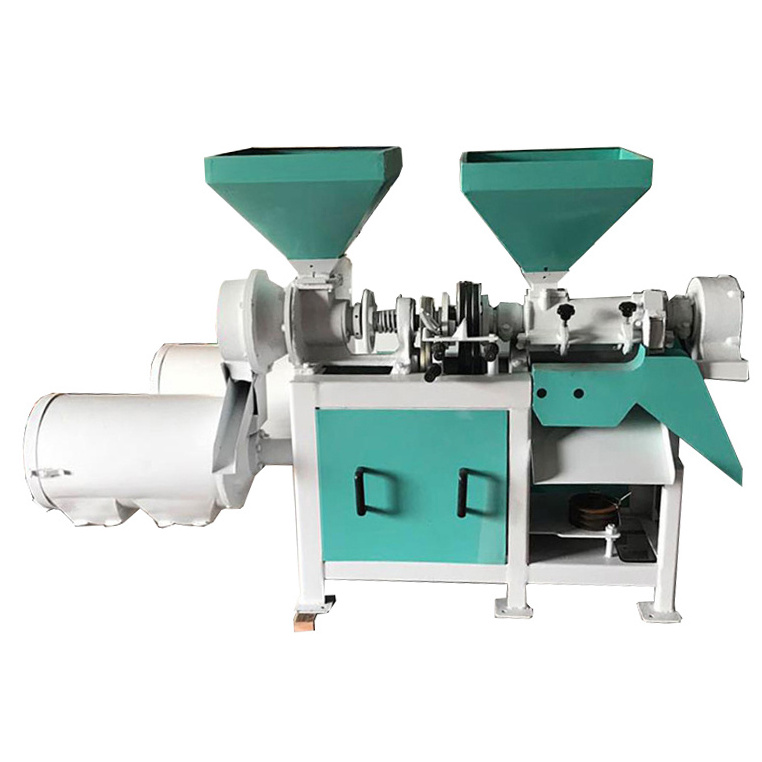

Following is photo of MG-DNM-3B corn flour milling machine / maize grits making machine. The price online is for DNM-3B corn maize grits making machine(including 7.5kw, 380v electric motor), you can place order directly with this link. Anything unclear, please feel free to contact us, thank you.
II. Specifications for Maize Grits Flour Milling Machine
Other name: corn flour milling machine/maize grits machine, corn skin removing machine
|
Specifications for Maize Grits Flour Milling Machine
|
|
|
|
Model
|
MG-DNM-3B
|
|
|
|
Corn/Maize 300KG/HOUR
|
|
|
|
Corn Grits: 1000KG/HOUR
|
|
|
|
Corn Flour: 350KG/HOUR
|
|
|
|
White Rice: 400KG/HOUR
|
|
|
|
Wheat: 400KG/HOUR
|
|
|
Power(kw)
|
7.5kw, 380V/50Hz
|
|
|
Spindle speed
|
860r/min
|
|
|
Machine size:
|
2200×500×1200mm
|
|
|
Machine weight(kg)
|
300kg
|
|
|
Color
|
Blue, Light Green, or As required.
|
|
III. Description of Corn milling machine
1). The corn dehulling grits grinding machine is the popular product in our country.
2). The machine mainly has three functions: corn dehulling, corn grits, finished product classification, what can achieve disposably the processes for corn : clean up, dehulling, embryo removal, root removal, black navel removal, crushing, grits, grading, polishing, etc.
3). The machine can be divided into three kinds of finished products: middle grits, small grits and corn flour. The size of grits can be adjusted by the slag-making handle, and the distance between the two teeth in slag making, which can be controlled to the size of grits.
4). The corn kernel after dehulling will be collected by the machine through the wind channel of the built-in fan and the micro-skin of the corn kernel.
IV. Main features:
1). Beautiful appearance, convenient operation, reliable performance, green and environmental protection, one machine multi-purpose.
2). Adopt wet descaling, once molding.
3). Set dehulling, grits milling and finished product classification function, using a 7.5 KW motor as power equipment, reduce the cost of input. That can be applied to corn, wheat, sorghum and other grain dehulling, granulation and flour.
4). It is the first choice for foreign processing households in rural areas and urban-rural fringe areas. Mobile operations and fixed operations are both fine.
V. Machine in working
VI. Spare parts for maize milling machine
Spare parts: Bowl; Brush; Nylon Mesh; Screen ect.
Packaging:
Machine will be packed into Wooden Crate or Pallet or bare package in standard containers for export;
Shipping:
All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several importers' transaction History.
6. Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L. Also we accept the payment such as L/C, Escrow Or PayPal.
7. What's your warranty time?
A: Under normal operation condition, this contract mechanical is guaranteed by seller for one year non-pay repairmen after the date of shipment. Otherwise, the damages caused for the force majeure or accidents or reasons beyond control, buyer shall pay charges for parts and the parts freight and the technicians. Electrical component will be excluded when the damage caused by the voltage vibrant fluctuation, phase & circuit shortage, faulty wiring.
