Quick Details
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
air motor driven
-
Power:
-
-
-
Dimension(L*W*H):
-
1500x830x1240mm
-
Weight:
-
680 kg
-
Output:
-
5m3/h
-
Drive mode:
-
Air Motor Driven
-
Suitable Mix Ratio(Cement/Sand):
-
1:3~5
-
Application:
-
Spraying Concrete
-
Air Motor Type:
-
TMH6A
-
Certification:
-
ISO, CE
-
Conveying Pressure:
-
0.2-0.4MPa
-
Air Motor Air Pressure:
-
0.5MPa
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11rpm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
air motor driven
-
Power:
-
-
-
Dimension(L*W*H):
-
1500x830x1240mm
-
Weight:
-
680 kg
-
Output:
-
5m3/h
-
Drive mode:
-
Air Motor Driven
-
Suitable Mix Ratio(Cement/Sand):
-
1:3~5
-
Application:
-
Spraying Concrete
-
Air Motor Type:
-
TMH6A
-
Certification:
-
ISO, CE
-
Conveying Pressure:
-
0.2-0.4MPa
-
Air Motor Air Pressure:
-
0.5MPa
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11rpm

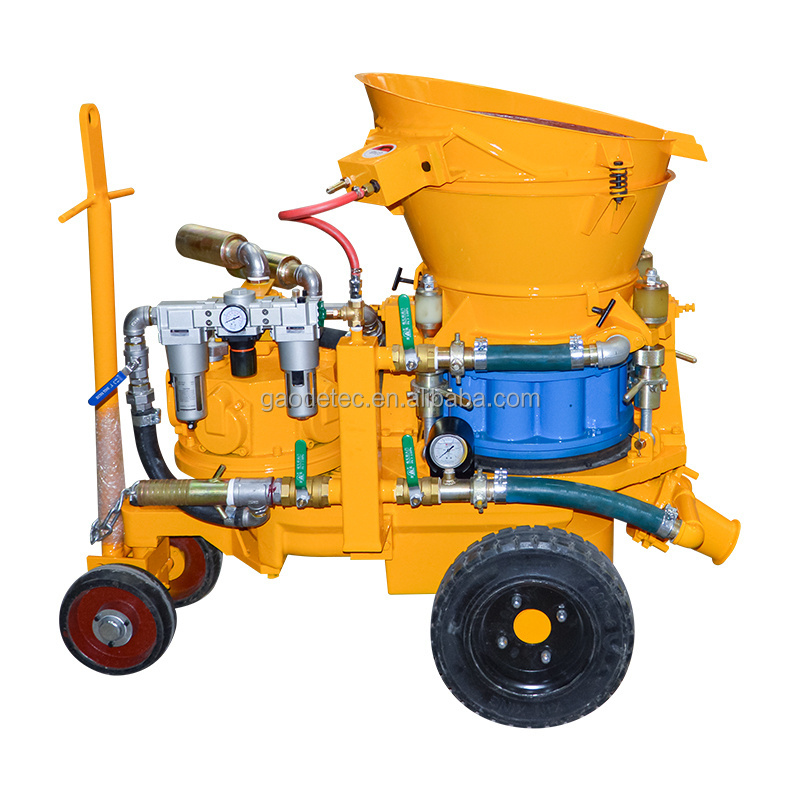

Small size dry mix tunnel gunite shotcrete machine price
Description:
GZ-5A dry mix explosion proof shotcrete machine is medium-sized shotcrete machine for the dry spraying process. And it is widely used by so many contractors. GZ-5A shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
Parameter:
|
Output Capacity |
5m3/h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio (Cement/Sand) |
≤1:3~5 |
|
Max. Aggregate Size |
Φ15 mm |
|
Conveying Hose Inner Diameter |
Φ51 mm |
|
Conveying Pressure |
0.2-0.4MPa |
|
Air Consumption for conveying material |
7~8m3/min |
|
Air Motor Air Pressure |
0.5MPa |
|
Material Charging Height |
1.1m |
|
Rotor Speed |
11rpm |
|
Air Motor Type |
TMH6A |
|
Air Motor Air Consumption |
7.5m3/min |
|
Overall Dimension(L× W× H) |
1500x830x1240mm |
|
Net Weight |
680kg |
Features:
- Reasonable design, convenient to move
- Convenient operation and longevity of service
- High quality, reliable performance, support global service
- Four-point clamping device make it easy to adjust the press between seal plate and rotor disk so as to no air and dust leak and prolong consumption parts life
- Non-adhesion going-througth rotor with new material chamber, completely eliminat bonding and blocking during operation so as to reduce clearance and maintenance period
- Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality
Detailed images:
Application:
The GZ-5 is widely used in:
- Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect
- Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
Packaging & shipping:
In order to protect our air rotor dry-mix shotcreting machine and avoid damage during transport, our machine adopts plywood box packaging.
