Quick Details
-
Model Number:
-
BK-CA02
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Blood Coagulation Analyzer
-
Test Principle:
-
Optical Colorimetry
-
Test Items:
-
PT,APTT,TT,FIB
-
Test Channel:
-
2(can test different projects at the same time)
-
Wavelength:
-
470nm
-
Sample Incubation Position:
-
12
-
Reagent Incubation Position:
-
5
-
Detection Position Temperature:
-
37.0±1.0℃
-
lncubation Time:
-
1-999s
-
Reaction Time:
-
1-99s
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-CA02
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Blood Coagulation Analyzer
-
Test Principle:
-
Optical Colorimetry
-
Test Items:
-
PT,APTT,TT,FIB
-
Test Channel:
-
2(can test different projects at the same time)
-
Wavelength:
-
470nm
-
Sample Incubation Position:
-
12
-
Reagent Incubation Position:
-
5
-
Detection Position Temperature:
-
37.0±1.0℃
-
lncubation Time:
-
1-999s
-
Reaction Time:
-
1-99s
Product Description

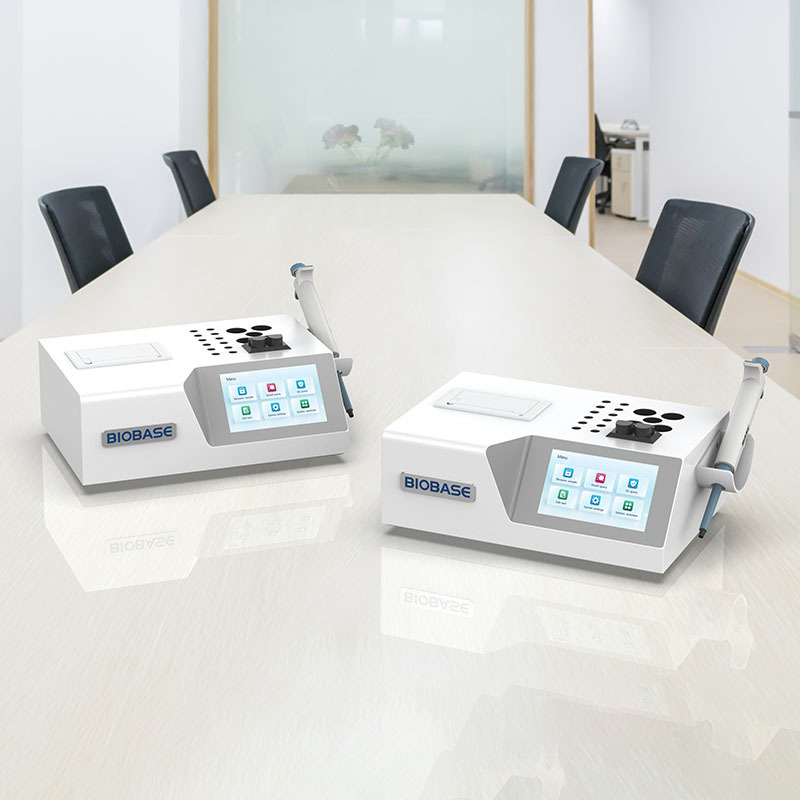

Biobase Blood Coagulation Analyzer PT APTT TT FIB test 2 channel Coagulometer Analyzer BK-CA02
The
blood coagulation analyzer
adopts the principle of optical colorimetry for detection.
After the reagent is mixedwith the plasma, fibrinogen is converted into fibrin and coagulated, which leads to the change of the optical densityof the test specimen, and the instrument detects the coagulation end point.
Features of
Blood Coagulation Analyzer:
1. Dual-channel independent detection, can analyze different items at the same time.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
Technical Specification of Blood Coagulation Analyzer:
|
Model
|
BK-CA02
|
|
Test Principle
|
Optical Colorimetry
|
|
Test Items
|
PT,APTT,TT,FIB
|
|
Test Channel
|
2(can test different projects at the same time)
|
|
Wavelength
|
470nm
|
|
Detection Time
|
Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds
|
|
Sample Incubation Position
|
12
|
|
Reagent Incubation Position
|
5
|
|
Detection Position Temperature
|
37.0±1.0℃
|
|
Incubation Position Temperature
|
37.0±1.0℃
|
|
lncubation Time
|
1-999s
|
|
Reaction Time
|
1-99s
|
|
Reagent Dosage
|
Minimum dosage 20μl
|
|
Sample Volume
|
20μl~40μl
|
|
Display
|
5-inch high-definition color touch screen
|
|
Storage
|
20,000 results storage, automatically save measurement data when power off
|
|
Display
|
7-inch color LCD touch screen
|
|
Communication Interface
|
RS232 serial interface, support LlS system
|
|
Printer
|
Built-in thermal printer
|
|
Power Supply
|
AC100~240V,50/60Hz
|
|
Consumption
|
70VA
|
|
Ambient Temperature
|
10℃~30℃
|
|
Relative Humidity
|
≤80%
|
|
Atmospheric Pressure
|
86kPa~106kPa
|
|
External Size (W* D*H)
|
360*210*120mm
|
|
Net Weight
|
3.5kg
|
|
Package Size (W*D*H)
|
376*246*316mm
|
