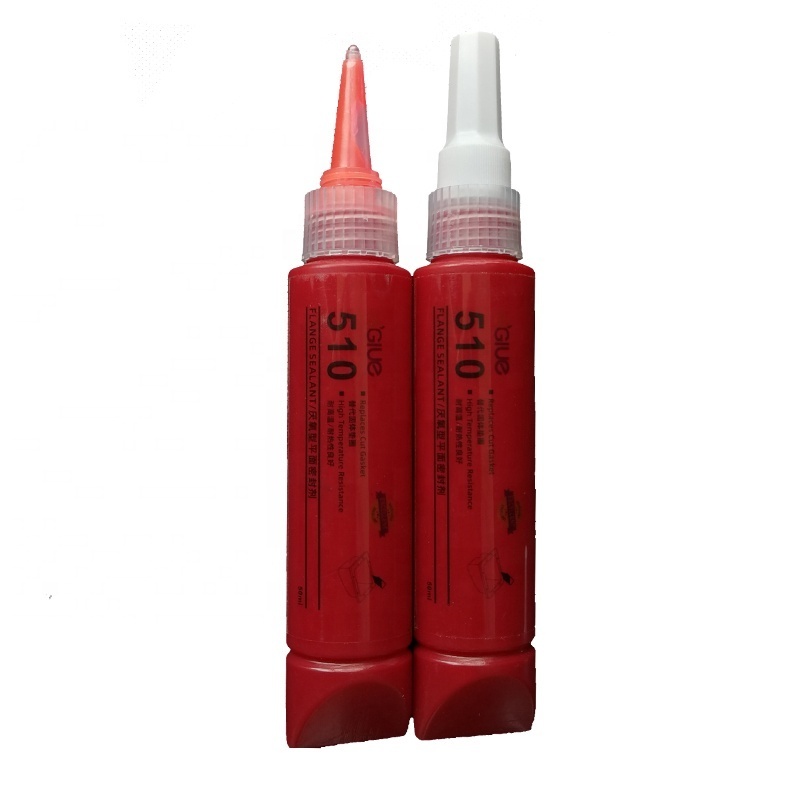

Quick Details
-
Main Raw Material:
-
Dimethacrylate Ester, Dimethacrylate Ester
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
510, 510/ 515 /518/ 574/573/5182/5208
-
Type:
-
Flange sealant
-
Product name:
-
anaerobic adhesive
-
Packing:
-
50ml, 250ml, 1kg, 17kg
-
Curing time:
-
12 hours
-
Strength:
-
High strength
-
Viscosity:
-
High
-
Use:
-
Sealing rigid flange faces on transmissions and motor casings
-
Color:
-
Pink
Quick Details
-
CAS No.:
-
25852-47-5
-
Other Names:
-
Flange Sealant
-
Place of Origin:
-
China
-
Main Raw Material:
-
Dimethacrylate Ester, Dimethacrylate Ester
-
Brand Name:
-
HiGlue, HiGlue
-
Model Number:
-
510, 510/ 515 /518/ 574/573/5182/5208
-
Type:
-
Flange sealant
-
Product name:
-
anaerobic adhesive
-
Packing:
-
50ml, 250ml, 1kg, 17kg
-
Curing time:
-
12 hours
-
Strength:
-
High strength
-
Viscosity:
-
High
-
Use:
-
Sealing rigid flange faces on transmissions and motor casings
-
Color:
-
Pink
Anaerobic Locking Adhesive 222 242 243 262 270 271 272 277 290
HiGlue anaerobic thread sealant enable clients to lock bolts, studs, nuts and screws. Also to avoid loosening caused by stress and vibration.
• Replace mechanical washers and fasteners.
• Prevent loosening caused by vibration, mechanical and thermal shock.
• Lubricate for easier assembly.
• Maintain the initial applied torque.
• Available in 3 grades of locking strength: low (easy to dismantle), medium (possible to dismantle), high (permanent locking).
* Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
* Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
* Permits disassembly with ordinary hand tools for easy service and maintenance
1. Strength
▶ Low Strength (Purple): Ideal for fasteners <1⁄4" (6 mm). Easy disassembly using hand tools, like 222.
▶ Medium Strength (Blue): Designed to be removable with standard hand tools on 1⁄4" to 3⁄4" fasteners, like 242 243 262 263.
▶ High Strength (Red): Designed to deliver high strength on 1⁄4" to 3⁄4" (6 mm to 22 mm) fasteners. For removal, it may require
localized heat (>550°F/260°C), hand tools, and disassembly while hot, like 271 272 290.
2. Viscosity
▶ Liquid Formulas: Everyday assembly; ideal for fine threads and blind holes
▶ Semisolid Formulas: Pocket-friendly, ideal for overhead applications
▶ Tape Formula: Pocket-friendly; controlled application; can be pre-applied several days before assembly
3. Application Methods
▶ Pre-Applied: QuickTape threadlocker can be applied beforehand on bolts that are waiting to be assembled
▶ Pre-Assembly: Most HiGlue liquid threadlockers are designed to be applied at the moment that parts will be assembled
▶ Post-Assembly: Wicking grade formula can be applied on parts that are already assembled
Using Process:
Cleaning thread surface with high efficiency detergent;
In the bolt, nut, screw hole dispensing, suggest gluing at least above 3 buttons;
Assembling bolt, nut and tighten to the specified torque;
The ordinary glue lock is used and the spanner can be disassembled. If the high strength glue lock is used, the spanner can not be directly disassembled. At this time, the bolt and nut should be heated to 260 degrees, and the heat can be disassembled.
◆ Glue 222 is a low-strength anaerobic threadlocker that allows the adjustment of screws including countersunk head screws and set screws. Good on low-strength metals which could fracture during disassembly, e.g. aluminum or brass. The product works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids.
◆ Glue 243 is a medium strength blue threadlocking adhesive that seals and secures metal nuts and bolts to prevent loosening due to shock and vibration.
◆ Glue 271 is a red, low viscosity, methacrylate-based threadlocking adhesive with high strength. With steel fixture time of 10min, brass 5min and stainless steel 15 min.
◆ Glue 272 is a red, high strength, medium viscosity, methacrylate-based threadlocking adhesive with high temperature resistance.
◆ Glue 277 is a red, high strength, high viscosity, methacrylate-based threadlocking adhesive. It has a fixture time on steel of 30 min, brass 25 min and stainless steel 270 min making it deal for applications where migration of the adhesive must be prevented.
◆ Glue 290 is a low viscosity and capillary action, the product wicks between engaged threads and eliminates the need for disassembly prior to application. The product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage due to shock and vibration. The product can also fill porosities in welds, castings and powdered metal par
