Quick Details
-
Model Number:
-
CS-528A1
-
Max. Current:
-
15A
-
Mechanical Life:
-
50000 Cycles
-
Item name:
-

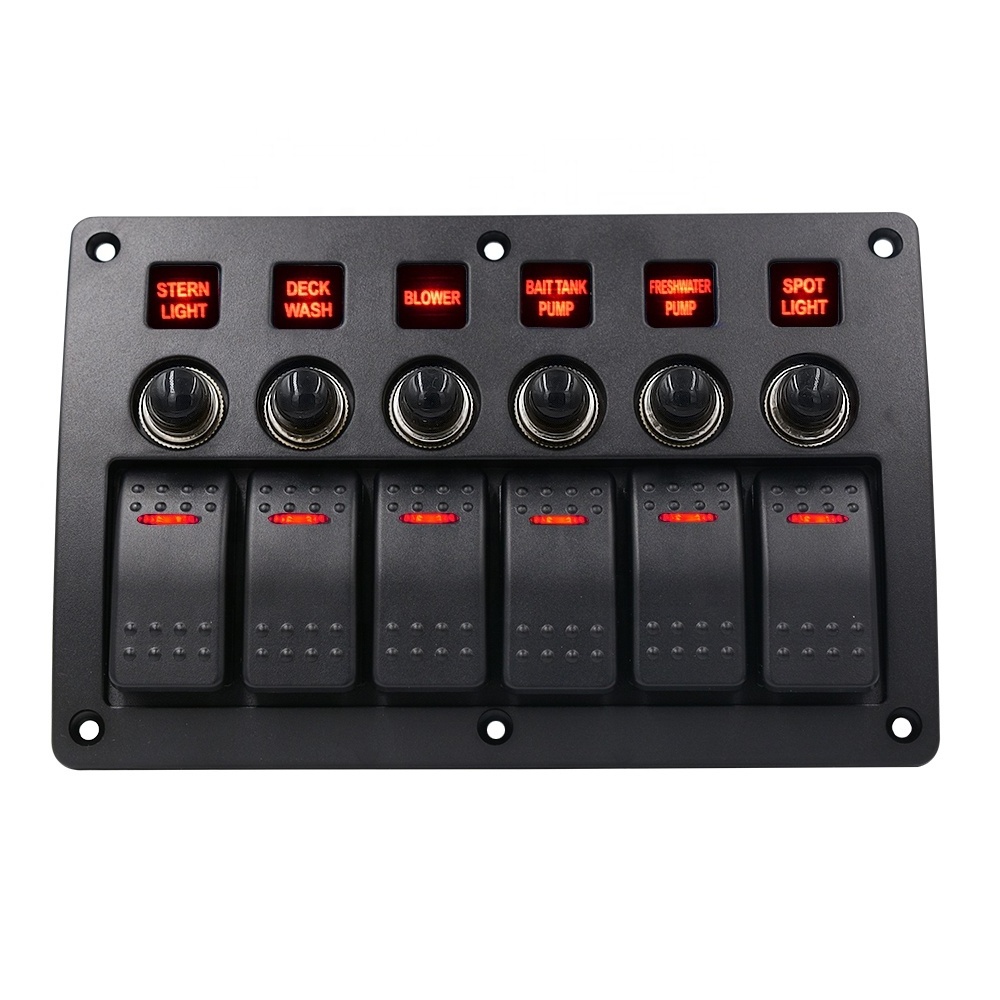

3pin 6-position combined panel switch with lamp and lens
-
Material:
-
ABS+PBT+PC+POM
-
Input voltage:
-
DC12/24V
-
Power:
-
120-260W
-
Working temperature:
-
-25℃-80℃
-
Product size:
-
23.6*12*7.5cm
-
Weight:
-
489g
-
Sample:
-
Available
-
Customized:
-
Available
-
Certification:
-
CE/ROHS/UL
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-528A1
-
Max. Current:
-
15A
-
Mechanical Life:
-
50000 Cycles
-
Item name:
-
3pin 6-position combined panel switch with lamp and lens
-
Material:
-
ABS+PBT+PC+POM
-
Input voltage:
-
DC12/24V
-
Power:
-
120-260W
-
Working temperature:
-
-25℃-80℃
-
Product size:
-
23.6*12*7.5cm
-
Weight:
-
489g
-
Sample:
-
Available
-
Customized:
-
Available
-
Certification:
-
CE/ROHS/UL
Products Description
Product Accessories:
Self tapping screws*6, functional stickers and scratch resistant gaskets
Product Use:
It can be used as headlamp switch, fog lamp switch, visual width lamp switch, on-board refrigerator switch, on-board vacuum cleaner switch, etc
Scope Of Use:
It is applicable to the installation and use of high-grade large-scale transportation tools such as ships, yachts, recreational vehicles and buses
Product Advantages:
【1】 The product is a 6-position switch panel, including 6 switches, which can
control the switching status of 6 consumers at the same time
【2】 The input voltage of the product is 12/24v. 12/24v can be installed and used by all ships and trucks, with a very wide range of applications
【3】 The products are ABS, PC and PBT high and low temperature resistant, flame retardant and environmental friendly materials, which can be used in the environment with the lowest temperature of -25 ° and the highest temperature of 80 ° 【4】 The product is equipped with an overload protector. When the user controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically cut off power without causing any damage to the user. After the overload protector is pressed again, the user with the corresponding current can continue to use
|
Product Name
|
3pin 6-position combined panel switch with lamp and lens
|
|
Product Model
|
CS-528A1
|
|
Net Weight
|
420.4g
|
|
Gross Weight Of Product
|
488.9g
|
|
Product Size
|
18.3*12*7.5cm(7.2*4.72*2.95inch)
|
|
Opening Size
|
15.3*8.6cm(6.02*3.39inch)
|
|
Product Material
|
ABS, PC, PBT high and low temperature resistant, flame retardant and environmental friendly materials
|
|
Product Color
|
black
|
|
Light Color
|
red
|
|
Input Voltage
|
DC12V/24V
|
|
Maximum Power
|
120-260W
|
|
Working Temperature
|
-25℃-80℃
|
|
Waterproof Grade
|
IP65
|
|
Relevant Certificates
|
CE/ROHS/UL
|
