Quick Details
-
Application:
-
Fuel Level Sensor
-
Material:
-
Stainless Steel
-
Product name:
-
Float Board Magnetic Level Gauge
-
Type:
-
Mafgnetostrictive Level Meter
-
Output signal:
-
RS485(MODBUS-RTU)
-
Measuring range:
-
300-15000mm
-
Accuracy:
-
0.3mm
-
Name:
-
Magnetic Liquid Level Gauge
-
Usage:
-
Magnetic Sensor
-
Keywords:
-
Liquid fuel tank oil level gauge
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUIHE
-
Model Number:
-
SYW-A
-
Application:
-
Fuel Level Sensor
-
Material:
-
Stainless Steel
-
Product name:
-
Float Board Magnetic Level Gauge
-
Type:
-
Mafgnetostrictive Level Meter
-
Output signal:
-
RS485(MODBUS-RTU)
-
Measuring range:
-
300-15000mm
-
Accuracy:
-
0.3mm
-
Name:
-
Magnetic Liquid Level Gauge
-
Usage:
-
Magnetic Sensor
-
Keywords:
-
Liquid fuel tank oil level gauge
Magnetostrictive Liquid diesel fuel tank oil level gauge

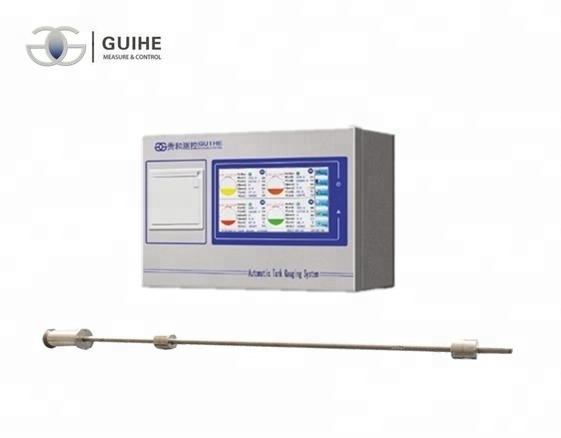

Magnetostrictive Liquid Level Meter (Tank gauging system) for gas stations produced by Guihe consists of Probe and Touch Control Console. There are three different plans to satisfy different customers according to their effective demands.
1. SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet
- I ndustrial design, long service life, fast in running.
- Excellent compatibility with different brand Central Control System.
- Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
- Information are stored in memory for future in qu iry.
- It enjoys a tank tilt compensation function
- It can connect with explosion-proof ringer outdoors avoiding the product spilled
- With an e mbedded printer it can print inventory reports, delivery reports, leak reports and shift reports
- It can monitor up to 1 2 tanks and display dynamic ally the product level and water level with colored graphics in proportion.
- After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.
SYW-A Magnetostrictive Probe
The probe consist of:
F ully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
F loater made according to the product.
Features :
S afety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy : level accuracy is ±0. 3 mm
Stability : s trong anti-jamming ability
Efficiency : less than 1 second to test one tank.
Probe Performance
|
Item |
SYW-A |
|
Purpose |
To measure product level, water level and temperature |
|
Titles of medium |
Gasoline, diesel, kerosene, ethanol , water etc. |
|
State of medium |
Liquid |
|
Explosion-proof grade |
ExiaIIBT4 (Intrinsically safe) |
|
Pressure range |
-0.02Mpa~0.6Mpa |
|
Certificate |
PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
|
Temperature |
-40℃~70℃ |
|
Product Level Accuracy |
±0. 3 mm |
|
Water Level Accuracy |
±0. 3 mm |
|
Temperature Accuracy |
±0.2℃ |
|
Height Resolution |
0.023mm |
|
Repeatability |
±0.1mm |
|
Temperature Effect |
Error<0.2mm |
|
Vibration Effect |
Error<0.5mm |
|
Lowest Product Inactive Zone |
2.5'' floater-180mm |
|
Lowest Water Inactive Zone |
2.5'' floater-25mm |
|
Measured Variable |
Product level, interface level and temperature of 5 sensors and average temperature |
|
Probe Length |
600~ 40 00mm |
|
Method of Communication |
RS-485 |
|
Probe Material |
1Cr18Ni9Ti |
|
Power Supply |
+24~26VDC |
|
Protection Class of Probe Canister |
IP67 |
|
Max Communication Distance |
1200m |
