Quick Details
-
Drilling Speed:
-
0.1mm/s
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CTZX 32
-
Voltage:
-
220V/380V, 220v/380V
-
Dimension(L*W*H):
-
1000*800*1200mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
205 KG
-
Wattage:
-
750w
-
MOQ:
-
1set
-
Size:
-
1000*800*1200mm
-
Net Weight:
-
205kg
-
Power(W):
-
750
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32 mm
-
Range of Spindle Speed(r.p.m):
-
95 - 1420 r.p.m
-
Drilling Speed:
-
0.1mm/s
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CTZX 32
-
Voltage:
-
220V/380V, 220v/380V
-
Dimension(L*W*H):
-
1000*800*1200mm
-
Power (kW):
-
0.75
-
Weight (KG):
-
205 KG
-
Wattage:
-
750w
-
MOQ:
-
1set
-
Size:
-
1000*800*1200mm
-
Net Weight:
-
205kg
-
Power(W):
-
750
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
FEATURES
1. High precision grinding all steel spindle;
2. High strength with square column;
3. Good strength gear grinding, low nosie;
4.Headstock tilts left and right;
5. Wide electrical box, easy operation;
6. High precision manual feeder;
7. Depth ruler, easy operation and read.
3. Good strength gear grinding, low nosie;
4.Headstock tilts left and right;
5. Wide electrical box, easy operation;
6. High precision manual feeder;
7. Depth ruler, easy operation and read.
|
Maximum drilling diameter
|
32mm
|
|
|
|
Maximum end milling diameter
|
63mm
|
|
|
|
Maximum vertical milling diameter
|
20mm
|
|
|
|
Spindle travel
|
85mm
|
|
|
|
Maximum distance from the spindle end to the work surface
|
445mm
|
|
|
|
Spindle axis to square column surface distance
|
203mm
|
|
|
|
Spindle taper
|
MT3
|
|
|
|
Spindle speed
|
95-1420r/min 50HZ
|
|
|
|
Y-axis travel
|
205mm
|
|
|
|
X-axis travel
|
410mm
|
|
|
|
Z-axis travel
|
310mm
|
|
|
|
Workbench area
|
180*700mm
|
|
|
|
Swing angle of the spindle
|
±90°
|
|
|
|
Motor
|
750w
|
|
|
|
Net weight
|
205kg
|
|
|
|
Dimensions(L*W*H)
|
1000*800*1200mm
|
|
|
|
Operating Voltage
|
220V or 380V 3phase
|
|
|
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
Machine package size 720x720x1050mm
Net weight/gross weight of machine(excluding floor cabinet) 205/220KG
Identification
A.Control Panel
B.Z-Axis Crank
C.X-Axis Handwheel
D.Y-Axis Handwheel
E.X-Axis Handwheel
F.Spindle Motor
G.Spindle Speed Levers
H.Coarse Downfeed Levers
I.Digital Readout
J.Fine Downfeed Handwheel
K.Quill & Spindle

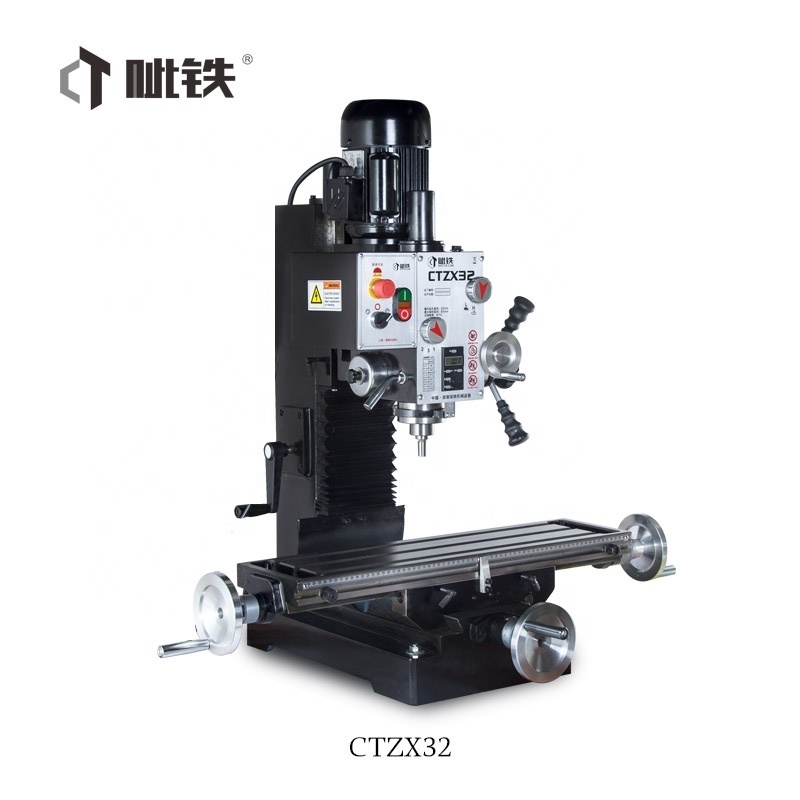

Product display
DETAILS INTRODUCE
A. Emergency stop switch
B. Forward and reverse knob
C. Spindle start switch
D. Spindle stop switch
E. Gearbox six-speed adjustment knob
① Power button
② Metric-imperial conversion keys
③\④ Preset number settings
⑤ Displays
⑥ Reset/preset function keys
⑦ Electrical compartment
Standard Accessories（Attached in Machine）
