Quick Details
-
Product Name:
-
Heavy duty double doors 500KG magnetic lock
-
EL-1200D:
-
Without indicator lights
-
EL-1200DS:
-
With LED (Red only)
-
EL-1200DST:
-
Built-in LED, door sensor, and time delay
-
Lock Dimension:
-
530Lx72Wx40H(mm)
-
Armature Plate Dimension:
-
185Lx60Wx13H(mm)
-
Holding Force:
-
500kgx2(1200Lbsx2)
-
Certification:
-
CE FCC ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
EL-1200D
-
Product Name:
-
Heavy duty double doors 500KG magnetic lock
-
EL-1200D:
-
Without indicator lights
-
EL-1200DS:
-
With LED (Red only)
-
EL-1200DST:
-
Built-in LED, door sensor, and time delay
-
Lock Dimension:
-
530Lx72Wx40H(mm)
-
Armature Plate Dimension:
-
185Lx60Wx13H(mm)
-
Holding Force:
-
500kgx2(1200Lbsx2)
-
Certification:
-
CE FCC ROHS
Hot selling products

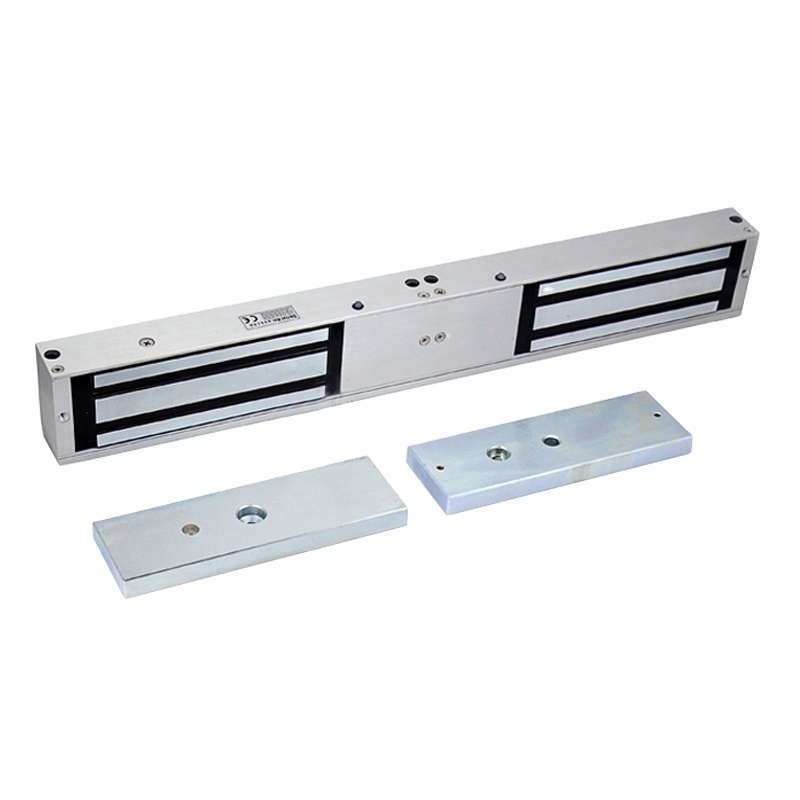

Heavy duty double doors 500KG magnetic lock
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
|
Product Parameter |
Parameter Description |
|
EL-1200D |
Without indicator lights |
|
EL-1200DS |
With LED (Red only) |
|
EL-1200DST |
Built-in LED, door sensor, and time delay |
|
Lock Dimension |
530Lx72Wx40H(mm) |
|
Armature Plate Dimension |
185Lx60Wx13H(mm) |
|
Holding Force |
500kgx2(1200Lbsx2) |
|
Input Voltage |
DC12V or DC24V |
|
Current Draw |
12V/500mAx2 24V/250mAx2 |
|
Suitable for |
Wooden door, Glassdoor, Metal door, Fireproof door |
|
Signal Output |
Need to order EL-D1200S |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10℃ ~ 55°C (14°F-131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
9KG |
|
Standard Packing |
4pcs |
