Quick Details
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST400-2000
-
TEST RANGE:
-
300MM TO 1000MM
-
testing medium:
-
diesel, kerosene, gasoline, hydraulic oil, and other liquid media
-
testing range(mm):
-
300mm 400 500 600 mm 700 800 900 1000
-
Signal output:
-
4-20mA Modbass, SSI
-
accuracy:
-
0.1%FS 0.3%FS
-
screw thread:
-
M18*1.5
-
IP Grade:
-
IP67
-
electrical connection:
-
Direct lead, standard cable length 1m
-
Main material:
-
stainless steel
-
Product name:
-
Water Level Control Float Switch Level Sensor for Hot Water Tank
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
one year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST400-2000
-
TEST RANGE:
-
300MM TO 1000MM
-
testing medium:
-
diesel, kerosene, gasoline, hydraulic oil, and other liquid media
-
testing range(mm):
-
300mm 400 500 600 mm 700 800 900 1000
-
Signal output:
-
4-20mA Modbass, SSI
-
accuracy:
-
0.1%FS 0.3%FS
-
screw thread:
-
M18*1.5
-
IP Grade:
-
IP67
-
electrical connection:
-
Direct lead, standard cable length 1m
-
Main material:
-
stainless steel
-
Product name:
-
Water Level Control Float Switch Level Sensor for Hot Water Tank

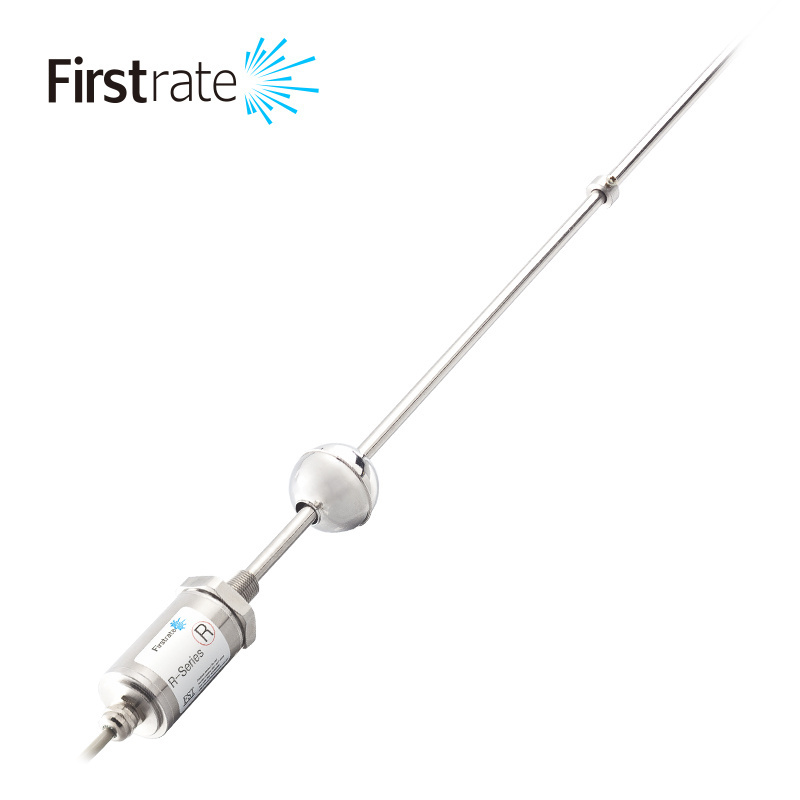

Firstrate FST400-2000 Electrical Water Level Control Float Switch Level Sensor for Hot Water Tank
♦
Focus on sensor production for more than 50 years;
♦
Factory Outlet, Low price;
♦
12 months free repaire warranty;
♦
Firstrate products have past CE, ROHS, ISO9001 etc.
| Product Features | |
|
♦ Solid and firm, fully closed design
♦ Linear measurement, absolute value output ♦ Non-contact measurement, no abrasion ♦ High accuracy, high Resolution ♦ Good environmental adaptability, reliability and stability |
|
| Applicable Scope | |
|
♦ food storage tank level control
|
|
| Product Parameters | |
| Testing Data | Position |
| Testing Range ( mm ) | 300,400,500,600,700,800,900,1000 |
| Output Signal | 4~20mA |
| Supply voltage | 24VDC (-15% ~ + 20%) |
| Working current | <70mA |
| Polarity protection | Over-load protection up to -30VDC |
| Maximum | 33VDC |
| Resolution | 16-bit D / A |
| Nonlinearity | ± 0.1% FS ± 0.05% FS |
| Repeatability | ± 0.008% FS |
| Update time | Analog signal 0.5mS (travel <1000mm) |
| Operating temperature | -40 ~ +85 ℃ |
| Storage temperature | -40 ~ +100 ℃ |
| Temperature effect | <0.007% FS / ℃ |
| Humidity and dew point humidity | 90% RH, no condensation |
| Fault indication | LED diagnosis function |
| Rod Material | stainless steel |
| Electronic warehouse | aluminum alloy |
| Rod pressure | ≤ 34MPa |
| Position Magnetic Ring | conventional float, corrosion-resistant float is for option |
| Pressure port | M18*1.5 |
| Electrical connection | direct lead |
| IP Grade | IP67 |
