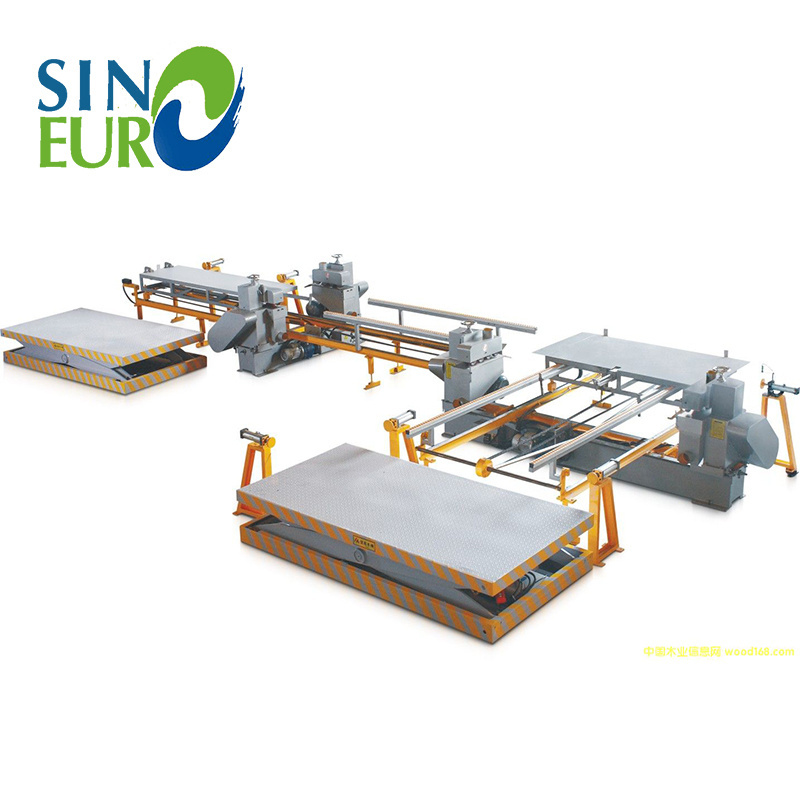

Automatic vertical and horizontal edge sawing machine is suitable for the production of wood-based panel edge cutting process. This product has the advantages of high speed, stable operation and low noise; The advantages of standard and unified size of finished products; Its automatic sawing has the characteristics of high cutting quality, smooth plate end face, no edging and high production efficiency. It is also one of the indispensable equipment for high-end wood-based panel production enterprises.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
8500x5500x1020mm, 8500x5500x1020mm
-
Weight (KG):
-
5000 kg
-
Usage::
-
woodworking
-
weight:
-
5T
-
Working speed:
-
10-30m/min
-
Capacity::
-
8-12 pcs/min(18mm)
-
power:
-
37.4KW
-
Rotation speed of blad:
-
6500-7000r/min
-
Cutting thickness:
-
3-50mm
-
Weight:
-
5T
-
Power:
-
37.4KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sinoeuro
-
Voltage:
-
380V/415V/440V
-
Dimension(L*W*H):
-
8500x5500x1020mm, 8500x5500x1020mm
-
Weight (KG):
-
5000 kg
-
Usage::
-
woodworking
-
weight:
-
5T
-
Working speed:
-
10-30m/min
-
Capacity::
-
8-12 pcs/min(18mm)
-
power:
-
37.4KW
-
Rotation speed of blad:
-
6500-7000r/min
-
Cutting thickness:
-
3-50mm
-
Weight:
-
5T
-
Power:
-
37.4KW
Product Description
|
Long saw cutting size
|
2440mm(adjustable)(1830-2500mm)
|
|
Lateral saw cutting size
|
1220mm(adjustable)(915-1300mm)
|
|
Working speed
|
10-30m/min
|
|
Power
|
42kw
|
|
Saw blade dimension
|
Diameter 305mm,lnner diameter 25.4mm
|
|
Capacity
|
8-12pcs/min
|
|
The working style
|
infrared ray guidance
|
|
Feed Way
|
Full Automatic
|
|
Work Methods
|
Full Automatic
|
|
Weight
|
5000kgs
|
|
Overall dimension
|
8000*5000*1200(mm)
|
Main Features
1. The main structure is strong with enoughrigidity and high stability.
2. The high efficiency: one shift working(2 worker and 8 hours) can produce 4000-5000pcs(18mm).
3. This saw has high precision anti-wearing guide rail, infrared guidance.
4. High automatic: all working process is controlled by PLC, automatic cutting and stacking.
5. Automatic device to clear and collect the edge strips cut off from the panel.
6. This machine only needs 2 workers for feeding, and automatic feeding style onely need one worker.
7. Servo motor supply the smooth running, high speed,high precise, precise position.
Detailed Images
Driving Servo Motor
Domestic famous motor, strong driving force, low power consumption. From the lowest to the highest speed, speed servo motor can run smoothly and strong ability of overload.
Saw blade
The overal diameter is 305mm, the inner diamter is 24.5mm
Infrared Ray Device
Infared ray device can give a clear size cutting
guidance, to make it high precision size cutting , also make the workers easy to judge the exactly position for the board feeding .
Automatic stacking system device
Full automatic stacking system to gurantee the whole trimming jobs process smooth and fast.
Saving labors and time. It can stack and tidy the finished board in to bunddles.
