The gold grinding machine mainly achieves water balance, uniform proportioning, low gas content, and improves the molding rate and molding quality through repeated stirring, rolling, crushing, and rolling of raw materials. It has the characteristics of high density, good strength, and non-porous proportion. High efficiency and energy saving, high output, this product is used to recycle the tailings in the iron ore process, so that the ore powder will not be lost and the effective resources can be fully utilized.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1500 KG
-
Product name:
-
Gold Wet Pan Mill
-
Keywords:
-
Wet pan mill
-
Main products:
-
gold extraction wet pan mill
-
Advantage:
-
High Recovery Rate
-
Material:
-
Steel
-
Function:
-
Washing Gold Ore
-
Installation:
-
Engineer Guide
-
Power:
-
3-66Kw
-
Color:
-
Blue
-
After sale service:
-
Life-long Service
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fuyuan
-
Voltage:
-
220V/380V
-
Weight:
-
1500 KG
-
Product name:
-
Gold Wet Pan Mill
-
Keywords:
-
Wet pan mill
-
Main products:
-
gold extraction wet pan mill
-
Advantage:
-
High Recovery Rate
-
Material:
-
Steel
-
Function:
-
Washing Gold Ore
-
Installation:
-
Engineer Guide
-
Power:
-
3-66Kw
-
Color:
-
Blue
-
After sale service:
-
Life-long Service
Product description

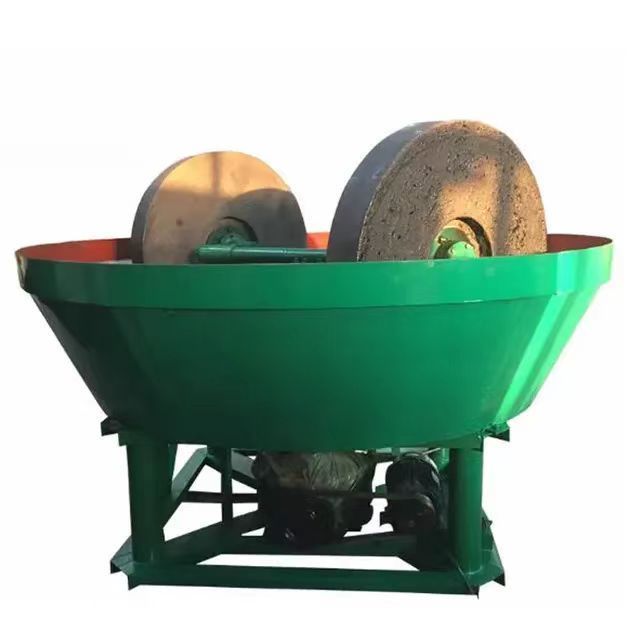

Grind gold machine are also known as gold mills, electric mills, stone mills, mills, and gold separators. The wet mill is an indispensable machine for grinding certain granular materials into powder materials or mixing various powder materials into another material；The process design is scientific and reasonable, the production is excellent, the use is convenient, the actual operation is simple, the maintenance is convenient, and the production capacity is high. It has been recognized by many customers. The main features of such a conical wet mill are: while increasing the net weight of the roller, the bearing area is reduced, and the pressure intensity of the compacted minerals is increased through the rotating motion of the roller to achieve the purpose of improving the benefit.
The characteristics of the gold mill
Product advantages
1.Simple structure of roller pan mill ,easy in installation and maintenance.
2.Low investment, high production capacity, low consumption, good efficiency.
3. Professionally-designed, thus its technical data is reasonable.
4.Short grinding and mixing cycle, high efficiency.
5.Low noise and low consumption. The materials can be grinded and mixed uniformly.
6.Compact structure, easy to operate and maintenance
Data Sheet
|
Model
|
Specification
|
Input size
|
Rotate Speed
|
Powder
|
|
FY1600 A
|
1600×400×200×500±20mm
|
＜30 mm
|
20-22 r/min
|
Y6L-30KW
|
|
FY1500 A
|
1500×350×200×460±20mm
|
|
20-22 r/min
|
Y6L-22KW
|
|
FY1500 B
|
1500×350×150×460±20mm
|
|
20-22 r/min
|
Y6L-22KW
|
|
FY1500 C
|
1500×300×150×420±20mm
|
|
20-22 r/min
|
Y6L-22KW
|
|
FY1400 A
|
1400×250×150×350±20mm
|
|
16-18 r/min
|
Y6L-18.5KW
|
|
FY1400 B
|
1400×250×150×350±20mm
|
|
21-23 r/min
|
Y4L-18.5KW
|
|
FY1350 A
|
1350×250×150×350±20mm
|
|
16-18 r/min
|
Y6L-18.5KW
|
|
FY1350 B
|
1350×250×150×350±20mm
|
|
21-23 r/min
|
Y4L-18.5KW
|
|
FY1300 A
|
1300×250×150×350±20mm
|
|
16-18 r/min
|
Y6L-15KW
|
|
FY1300 B
|
1300×250×150×350±20mm
|
|
21-23 r/min
|
Y4L-15KW
|
|
FY1200 A
|
1200×220×80×270±20mm
|
＜25 mm
|
17-19 r/min
|
Y6L-7.5KW
|
|
FY1200 B
|
1200×200×80×250±20mm
|
|
23-25 r/min
|
Y4L-7.5KW
|
|
FY1100 A
|
1100×200×80×250±20mm
|
|
17-19 r/min
|
Y6L-7.5KW
|
|
FY1100 B
|
1100×200×80×250±20mm
|
|
23-25 r/min
|
Y4L-7.5KW
|
|
FY1000
|
1000×200×80×250±20mm
|
＜25 mm
|
13-15 r/min
|
Y4L-5.5KW
|
Working principle
The Wet pan mill repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth.
Application Field
This kind of machinery and equipment is widely used in metallurgy, mining, petrochemical, electric power, refractory and other industries.
Company Introduction
Henan Fuyuan Machinery Manufacturing Co., Ltd
Located in High-tech Zone, Zhengzhou City, Henan Province. Our factory was founded in 1984,
1.Stone crusher series ( jaw crusher,impact crusher,cone crusher,hammer crusher);
covering an area of over 38, 000 square meters and a building area of over 26,000 square meters. There are more than 300 employees, including 5 senior engineers, 23 engineers and more than 60 technicians. After decades of development, the company's appearance is changing with each passing day, and the comprehensive quality of employees has been greatly improved.
Our company has begun to take group scale and form ten series of products:
2.brick making machine
3.Mobile crushing plant series;
4.Sand making machine series;
4.Sand making machine series;
5.Ball mill；
6.
Beneficiation equipment
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% should be paid as down payment; 70% should be paid before delivery.
Q4: How long is the warrenty of your equipments?
A: The warranty period of crusher equipments is 1 year.
Q5: If I need the complete crushing plant can you help us to build it?
A: Yes, we can give you related professional advices .
