Quick Details
-
Brand Name:
-
NAI-LOK
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel 316
-
Working Pressure:
-
6000Psi
-
Creaking pressure range:
-
15-225Psi
-
Orifice:
-
4.8MM
-
Bonede seal:
-
NBR, FK
-
Size:
-
1/4
-
Inlet Connection:
-
male NPT
-
Outlet Connection:
-
female NPT
-
OEM service:
-
Avaliable
Quick Details
-
Port Size:
-
1/4
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
RV
-
Brand Name:
-
NAI-LOK
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel 316
-
Working Pressure:
-
6000Psi
-
Creaking pressure range:
-
15-225Psi
-
Orifice:
-
4.8MM
-
Bonede seal:
-
NBR, FK
-
Size:
-
1/4
-
Inlet Connection:
-
male NPT
-
Outlet Connection:
-
female NPT
-
OEM service:
-
Avaliable

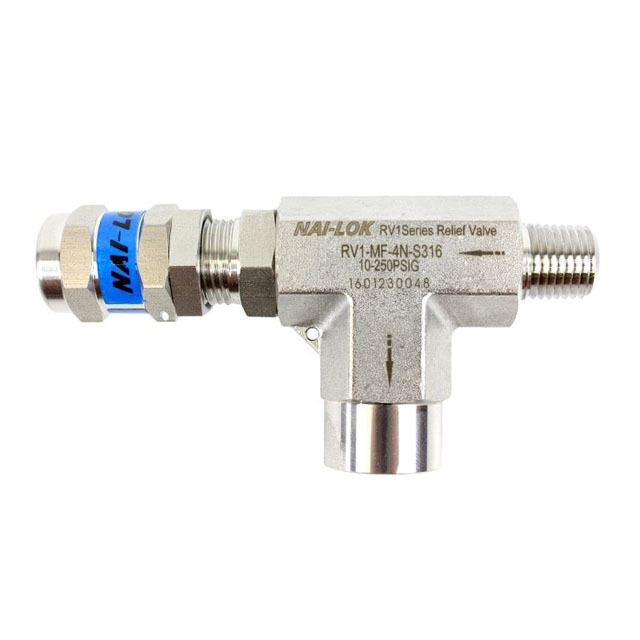

NAI-LOK SS316 Proportional safety relief valve
Product Description
Products in stock for immediate delivery:
SS316,Inlet 1/4 Male NPT,outlet 1/4 Female NPT
,
Set pressure:15 to 225 psig
- Working temperature from -18F to 400 . F(-28 . C to 204 . C)
- Balance stem design to eliminate the effect of system back pressure.
- Wide range of set pressure.
| Spring Designator | Cracking Pressure | |
| Psig | Bar | |
| RV1 | 15-225 | 3.4-24 |
| RV2 | 225-750 | 24-51.6 |
| RV3 | 750-1500 | 51.6-103 |
NAI-LOK SS316 Pressure relief valve
System Application
Ordering Information:
| RV | SS | M | N | 4 | L |
| Basic series | Materials | Inlet connection | End connection | Size | Cracking pressure |
| RV | SS-316 stainless steel | M-Male NPT | N-NAI-LOK | 4-1/4 in. | L-15-225psi |
| N-NAI-LOK | M-Female NPT | 6-3/8 in. | A-225-750psi | ||
| 8-1/2 in. | B-750-1500psi |
Trade Assurance
| Trade Assurance protects buyers’orders; It minimizes risk by guaranteeing money back in the event of a supplier failing to meet the terms of the order contract - including delivery delays, quality and quantity discrepancies or other processing problems. Trade Assurance applies a credit-rating system that incentivizes suppliers to produce and deliver high-quality goods on time and according to the buyers' specifications. | |
| Secure online payment options include e-Checking, credit card and T/T. Your payment is secured by Alibaba.com's anti-fraud system. | |
Processing Flow
Quality
Exhibitions
Warranty
Quality Assurance: Within one year after buying our products,If any quality problem that verified to be our responsibility, we will replace the defective products!
