CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank
CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank

CFL-100 LNG station used cryogenic liquid gas storage tank 100m3 lng storage tank

FOB Reference Price: Get Latest Price
≥1 Sets
US $16430
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CNZH
Marketing Type:
Hot Product
Dimension(L*W*H):
3620mm*3620mm*15390mm
Capacity:
100 m³
Weight:
38340
Inner Material:
stainless steel, Stainless Material or as required
Outer Material:
Q235B or as required, Q235B or as required
Design Pressure(MPa):
0.8Mpa
Design Standard:
ISO
Working Temperature(℃):
-162 - 30 ℃
Product name:
100m³ lng storage tank
Work Presure:
0.8Mpa
Volume available:
2-200 m³
Work fluid:
natural gas, ,nitrogen, argon, hydrogen,oxygen
Certification:
ISO9001 ISO14001 ASME
Color:
white or as required
LPG Tank model:
vertical or horizontal
Application:
LNG storage

Quick Details

Volume (m³):
100 m³
Max Working Pressure(MPa):
1.03 MPa
Place of Origin:
Shandong, China
Brand Name:
CNZH
Marketing Type:
Hot Product
Dimension(L*W*H):
3620mm*3620mm*15390mm
Capacity:
100 m³
Weight:
38340
Inner Material:
stainless steel, Stainless Material or as required
Outer Material:
Q235B or as required, Q235B or as required
Design Pressure(MPa):
0.8Mpa
Design Standard:
ISO
Working Temperature(℃):
-162 - 30 ℃
Product name:
100m³ lng storage tank
Work Presure:
0.8Mpa
Volume available:
2-200 m³
Work fluid:
natural gas, ,nitrogen, argon, hydrogen,oxygen
Certification:
ISO9001 ISO14001 ASME
Color:
white or as required
LPG Tank model:
vertical or horizontal
Application:
LNG storage
Product Description

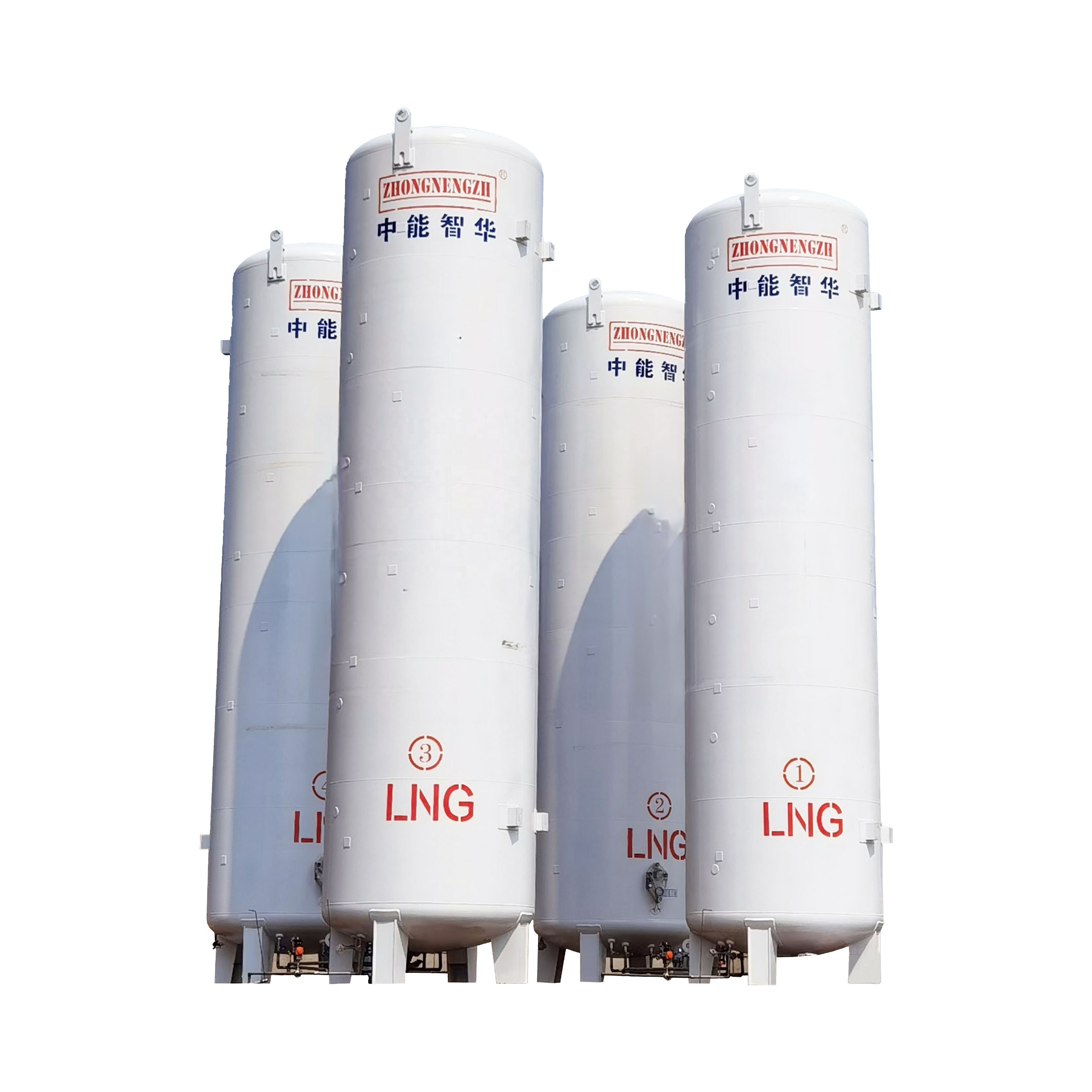

LNG Storage Tank
Cryogenic LNG Storage Tank is a vertical or horizontal double-layer vacuum adiabatic storage tank for storing LNG.
The inner material is austenitic stainless steel, outer material is selected Q235B, Q245R, 345R or as requirements.
The interlayer of inner and outer containers is filled with thermal insulation materials ,such as pearlite sand , aluminum foil, or thermal insulation cotton , then vacuum
Specification
Item
Cryogenic LNG Storage Tank
Place of Origin
China
Shandong
Brand Name
CNZH
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product
Core Components
Pressure vessel
Dimension(L*W*H)
3324mm*3324mm*18739mm
Capacity
100 m³
Weight
45620
Volume (m³)
100m³
Inner Material
stainless steel
Outer Material
Q235B or as required
Design Pressure(MPa)
0.8Mpa
Max Working Pressure(MPa)
1.03 MPa
Design Standard
ISO
Working Temperature(℃)
-162℃
Warranty
1 Year
Key Selling Points
Long Service Life
Applicable Industries
Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location
Russia, None
Product name
100 m³  lng storage tank
Inner Material
Stainless Material or as required
Outer Material
Q235B or as required
Work Presure
0.8Mpa
Volume available
2-200 m³
Work fluid
natural gas, ,nitrogen, argon, hydrogen,oxygen
Certification
ISO9001 ISO14001 ASME
Color
white or as required
LPG Tank model
vertical or horizontal
Application
LNG storage
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1st step blanking

2nd rolling

3rd, assemble

4th welding
5th shot blasting
6th paint then delivery
FAQ
1. Can you provide installation and commissioning services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service.
Except those we will ship the related files such as "installation, commissioning and operation instructions”, graphic materials, related video and audio materials together with the equipment.
Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance files to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. Can you use English (or other languages) version of your control system panel, operating language and factory materials?
Absolutely. We can provide it in all languages according to your request.

3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have professional design engineers to provide you with customized design services.

4. What is the service life of your product?
Designed service life is 20 years. In fact it can be extended according to the actual use situation. Some of our customers haveused it for 30 years.
5. Can I put my logo on the product?
Of course, we support product painting color and logo customization.
