Quick Details
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC120-277V(50/60Hz)
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
72
-
Lamp Luminous Flux(lm):
-
500lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Product Name:
-
Explosion Proof LED Exit Sign
-
Warranty:
-
5 Years
-
Driver:
-
Meanwell
-
LED Chip:
-
3030*12PCS
-
Color:
-
Grey, Yellow
-
IP Grade:
-
IP66
-
Housing material:
-
Heavy duty copper free aluminum alloy housing, ABS+PC handle
-
Application Area:
-
Class I Div 1 Hazarous Areas
-
EX Code:
-
Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Warranty(Year):
-
5-Year
-
Working Temperature(℃):
-
-40 - 50
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC120-277V(50/60Hz)
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
72
-
Lamp Luminous Flux(lm):
-
500lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Product Name:
-
Explosion Proof LED Exit Sign
-
Warranty:
-
5 Years
-
Driver:
-
Meanwell
-
LED Chip:
-
3030*12PCS
-
Color:
-
Grey, Yellow
-
IP Grade:
-
IP66
-
Housing material:
-
Heavy duty copper free aluminum alloy housing, ABS+PC handle
-
Application Area:
-
Class I Div 1 Hazarous Areas
-
EX Code:
-
Ex d IIB T6 Gb/Ex tb IIIC T85°C Db

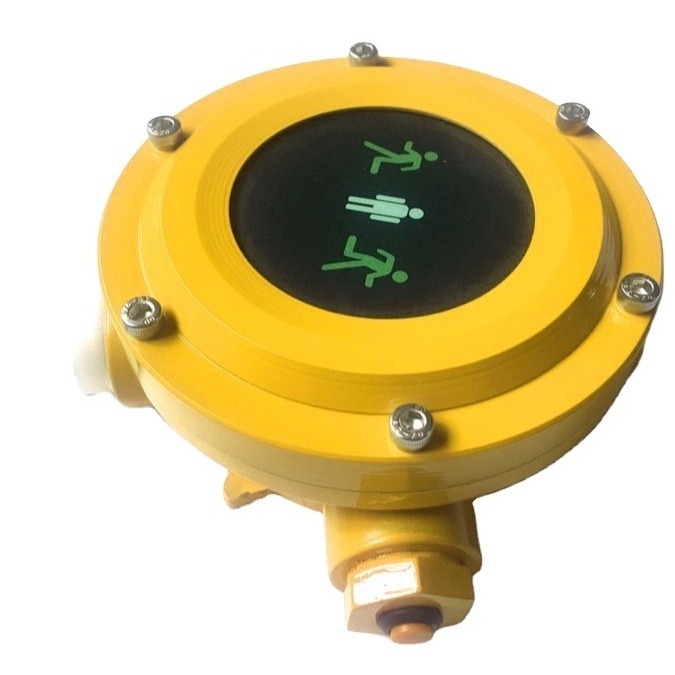

Class I Div2 Emergency Exit Sign LED Lights 5W for Hazardous Locations - IP66, Emergency 3 Hours Run Time
-
CES LED Explosion-proof emergency sign light rate for Class I Division 1&2, Class II Division 1&2, and is ideal emergency exit marking solution for hazardous locations where fail safe reliability is a must.
It has back up emergency ballast, it uses normal external power to illuminate 5W LED under normal conditions. In any situation where power is interrupted, it’ll automatically switches to a battery backup model which will power for 3 hours or until power is restored.
- Installation: Wall & Floor
-
4 Color
Certification standards
- UL844 – Class I Division 1&2 Group A.B.C.D
- IEC/ATEX Standard
- Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
- Zone 1, Zone 21, Zone 2, Zone 22
Application
- Oil refinery tank/Loading Docks / Platforms / Shipyards of Exit
- Chemical Processing Facility of Exit
- Petrochemical Processing Facility of Exit
Parameters
|
Items |
CES-BS |
|
Rated Power |
5W |
|
Input Voltage |
AC120-277V(50/60Hz) or DC12-24V(Emergency Mode Run time:3 hours) |
|
Input Frequency |
50/60Hz |
|
Power Factor |
≥0.95 |
|
Surge Protection |
1.5kv |
|
Correlated Color Temperature (CCT) |
5000K |
|
Color Rendering Index (CRI) |
>73 |
|
Ambient Operating Humidity |
5%~95% RH |
|
Ambient Operating Temperature |
-40°C ~+50°C/ - 40°F~+122°F |
|
OptimalOperating Temperature |
25°C (77°F) |
|
T-Code |
CID1: T6 CID2, CIID2: T4A |
|
Housing Material |
Heavy duty copper free aluminum alloy housing, ABS+PC handle |
|
Lens Material |
10mm |
|
Emergency Time |
3 Hours |
|
IP Rate |
IP66 |
|
IK Rate |
IK10 |
Contact us to know more about our Explosion proof LED exit signs
CESP strives to produce high-quality patent products for military and industrial applications, and is the largest OEM/ODM supplier of explosion-proof lighting solutions in China. It was the first company in China to receive certification from UL & CUL for hazardous location LED lighting fixtures. The existing products have complete certification including UL, CUL, DLC, ETL, CETL, CNEX, CE, ROHS, ATEX, SAA, C-TICK, etc.
Abundant Financial and Exquisite Technology is to Providing Technical Services and Complete Security Solutions, Free R&D and Free Technical Services, Quickly Response that Just Only 15 Days to Design, 30 Days to Die Sinking, 1 Month Can be Done for Class I Div 2 Certification, 3 Months Can be Done for Class I Div 2 Certification.
1.How can I make order?
2.What is the MOQ?
Any order quantity is welcome.mixed or samples order is also accepted.
4.What's your Warranty Policy?
All products are passed and reached export standard by third-party testing authority. We will provide 5 years warranty.
5.What's your Payment Method?
We usually accept the payment methods including PayPal, TT, or Western Union. 30% deposit in advance and balance before shipping. The buyer can choose which payment ways that you accept. By the way, PayPal is the most useful and safe payment method. Please don 't refuse PayPal fee when you choose PayPal.
6.What's your Shipping Method?
We can delivery the goods by sea, air and express. It depends on your requirements.
