Quick Details
-
Brand Name:
-
Chint
-
Model Number:
-
NXM-250S/3300 225A
-
Rated Frequency (Hz):
-
50/60Hz
-
Poles Number:
-
3P/4P
-
Number of poles:
-
3 pole / 4 pole
-
Protection level:
-
IP30
-
Tripping action mode:
-
Electromagnetic / thermomagnetic
-
Breaking capacity:
-
36KA
-
Rated frequency (Hz):
-
50/60HZ
-
temperature range:
-
-35℃~70℃
-
Installation mode:
-
Fixed, plug-in
-
Electrical life (time):
-
10000 times
-
type:
-
Plastic shell
Quick Details
-
Breaking Capacity:
-
36kA
-
Rated Voltage:
-
230V/240V,400V/415V
-
Rated Current:
-
225A
-
Brand Name:
-
Chint
-
Model Number:
-
NXM-250S/3300 225A
-
Rated Frequency (Hz):
-
50/60Hz
-
Poles Number:
-
3P/4P
-
Number of poles:
-
3 pole / 4 pole
-
Protection level:
-
IP30
-
Tripping action mode:
-
Electromagnetic / thermomagnetic
-
Breaking capacity:
-
36KA
-
Rated frequency (Hz):
-
50/60HZ
-
temperature range:
-
-35℃~70℃
-
Installation mode:
-
Fixed, plug-in
-
Electrical life (time):
-
10000 times
-
type:
-
Plastic shell
Products Description

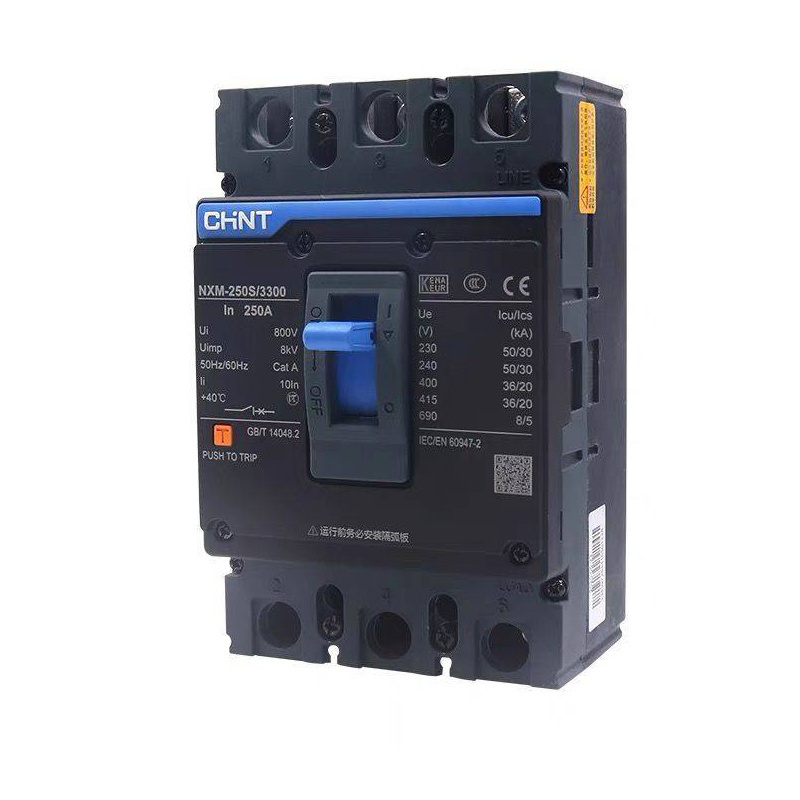

Picture details
Product Paramenters
Optional specifications
|
Model
|
Amp
|
Number of poles
|
Overall dimension (mm)
Width (W) × height (H) × depth (d)
|
|
NXM-63S,H/2300,3300,4300
|
10,16,20,25,32,40,50,63
|
2,3,4
|
56/78/103
x
135x56/78/103
|
|
NXM-125S,H/2300,3300,4300
|
10,16,20,25,32,40,50, 63,80,100,125
|
2,3,4
|
56/78/103x135x56/78/103
|
|
NXM-160S,H/2300,3300,4300
|
32,40,50,63,80, 100,125,140,160
|
2,3,4
|
63/90/120x155x75.5/91
|
|
NXM-250S,H/2300,3300,4300
|
125,140,160,180, 200,225,250
|
2,3,4
|
78/105/140x165x77/102
|
|
NXM-400S,H/3200, 3300,4300
|
250,280,315, 320,350,400
|
3,4
|
140/185x257x108.5/108.5
|
|
NXM-630S,H/3200, 3300,4300
|
400, 500,630
|
3,4
|
140/185x257x108.5/108.5
|
|
NXM-800S,H/3200, 3300,4300
|
630, 700, 800
|
3,4
|
182/240x270x114/114
|
|
NXM-1000S,H/3300,4300
|
800, 900，1000
|
3,4
|
210/280X280x118/118
|
|
NXM-1250S,H/3300,4300
|
1000, 1250
|
3,4
|
210/280x370x153/153
|
|
NXM-1600S,H/3300,4300
|
1000, 1250,1600
|
3,4
|
210/280x370x158/158(＜1600A:153/153)
|
Scope of application
It is applicable to factories, industries and other civil electric fields.
Production workshop
Certifications
Our services
1,Good quality control
2, Highly competitive prices
3, state-of-art technology products
4, Best professional team of lifestyle consumer electronics.
5, Smooth communication
6,Effective OEM&ODM service
FAQ
Can I order samples?
Yes, we welcome to order samples to test and check the quality. Mixed samples are acceptable.
1. When will the goods be delivered?
A: It takes three to five days to order samples in bulk and 15 days for mass production.
2. Is there a minimum order quantity for light order?
B: The minimum order quantity can be checked by sample.
3. How do you deliver the goods and how long does it take to arrive?
C: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to get there, and air and sea transportation are also optional.
4. Can you accept putting my logo on light products?
D: Yes. Please inform us of production in advance, and then confirm the design according to our samples.
5. Do you guarantee the product quality?
E: Yes, we guarantee our service quality and the product warranty is 2 years.
6. How to deal with failure?
F: First of all, our products are produced under strict quality control, and the system defect rate is less than 0.1%.
Actual situation, including calling again.
