According to the different material features, it adopts ideal,reasonable and high-efficiency
single
-layers extruder, which has the
characteristics of high output,good plasticizing capacity.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAOXU
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
17000X4000X3300MM
-
Power (kW):
-
90
-
Weight:
-
12 KG
-
Applicable Industries:
-
Luggage / Refrigerator industry
-
Sheet thickness:
-
1-4MM
-
Sheet width:
-
1-900MM
-
Used for:
-
Luggage/Suitcase making machine
-
two types of dies:
-
T-shaped and coat hanger
-
Processing Type:
-
reorient and guide the flow of polymer
-
Type:
-
ensure constant, uniform flow across the entire cross sectional area
-
Cooling:
-
deliver the necessary cooling but also determine sheet thickness
-
After Warranty Service:
-
Video technical support,Free spare parts,Commissioning And Training
-
Local Service Location:
-
Egypt,Turkey,Germany,VietNam,Indonesia,Pakistan,India,Thailand,Algeria
-
Certification:
-
ISO,CE
-
Marketing Type:
-
New Product 2021
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
35:1
-
Screw diameter (mm):
-
100MM
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAOXU
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
17000X4000X3300MM
-
Power (kW):
-
90
-
Weight:
-
12 KG
-
Applicable Industries:
-
Luggage / Refrigerator industry
-
Sheet thickness:
-
1-4MM
-
Sheet width:
-
1-900MM
-
Used for:
-
Luggage/Suitcase making machine
-
two types of dies:
-
T-shaped and coat hanger
-
Processing Type:
-
reorient and guide the flow of polymer
-
Type:
-
ensure constant, uniform flow across the entire cross sectional area
-
Cooling:
-
deliver the necessary cooling but also determine sheet thickness
-
After Warranty Service:
-
Video technical support,Free spare parts,Commissioning And Training
-
Local Service Location:
-
Egypt,Turkey,Germany,VietNam,Indonesia,Pakistan,India,Thailand,Algeria
-
Certification:
-
ISO,CE
-
Marketing Type:
-
New Product 2021
Products Description

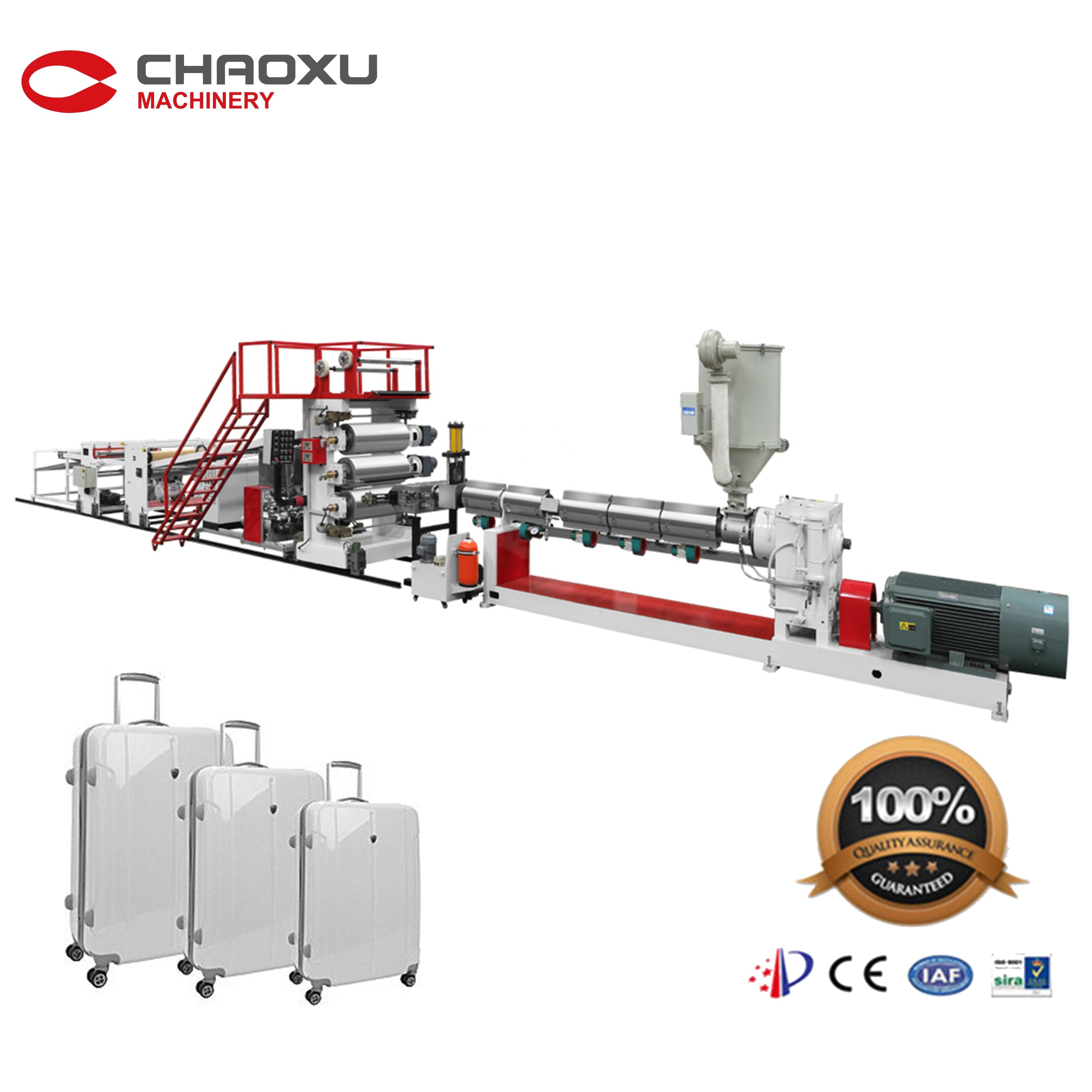

Plastic Travel Bags/Luggages Making Machine, Extruder Machine
Technique parameter
|
Model
|
YX-21A
|
|
Plate thickness
|
1-4MM
|
|
Plate Width
|
1-900MM
|
|
Yield
|
Around 230KG/HR
|
|
Weight
|
12T
|
|
Overall Dimension
|
17000*4000*3300MM
|
|
Suitable Material
|
ABS PC,PE,HIPS,etc
|
|
Auto Grade
|
Full Auto
|
|
Brand of Main Electrical Parts
|
Schneider,RKC,Rittal,Siemens,etc.
|
|
Diameter of Roller
|
400mm or customized
|
|
Diameter of Barrel
|
100/70/50mm or customized
|
|
Lamination Device
|
Included,printed film on the sheet is ok
|
|
Distribution Device
|
Included,more layers sheet can be made
|
|
Layers of Sheet
|
1-5 layers
|
Extrusion Screws
Mould
This mono-layer of multi-layer co-extrusion mould is adopted hanger design.It processes hard chrome plating and mirror polishing,
ensuring to extrude stable,uniform,good smooth finish sheet
ensuring to extrude stable,uniform,good smooth finish sheet
Three-roller Calender
It adopts vertical structure and the independent control of oil and water control device,to ensure precise constant temperature
control .Rollers adjust the speed independently,which has the characteristics of easy operation,easy to adjust thickness,high
density sheet
control .Rollers adjust the speed independently,which has the characteristics of easy operation,easy to adjust thickness,high
density sheet
Haul-off Unit
It adopts the design of upper-lower cylinder pressure type,stepless frequency conversion timing, which is suitable for different
extruded speed. Track the length of sheet transfer,it provides strong guarantee for the stable production.
extruded speed. Track the length of sheet transfer,it provides strong guarantee for the stable production.
Cutter
The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting It can cut the sheet
length effectively and smoothly.
length effectively and smoothly.
Application
This production line is capable of continuously produce mono-layer or multi-layer ABS,PC,PP,PE,PS,PMMA,HIPS sheet.
The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement,bathroom,automotive trim etc.
