Quick Details
-
Brand Name:
-
WYYW
-
Model Number:
-
YX-60C
-
Material:
-
black steel, brass
-
Size:
-
63
-
Case size:
-
60mm
-
pressure range:
-
0-250MPa
-
Accuracy class:
-
2.5%
-
connection size:
-
NPT, BSP(G,BF),BSPT(ZG,PT) 1/4"
-
Mounting:
-
bttom, back, panel
-
Certification:
-
CE,ISO
Quick Details
-
Type:
-
Bourdon Tube Pressure Gauges
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WYYW
-
Model Number:
-
YX-60C
-
Material:
-
black steel, brass
-
Size:
-
63
-
Case size:
-
60mm
-
pressure range:
-
0-250MPa
-
Accuracy class:
-
2.5%
-
connection size:
-
NPT, BSP(G,BF),BSPT(ZG,PT) 1/4"
-
Mounting:
-
bttom, back, panel
-
Certification:
-
CE,ISO

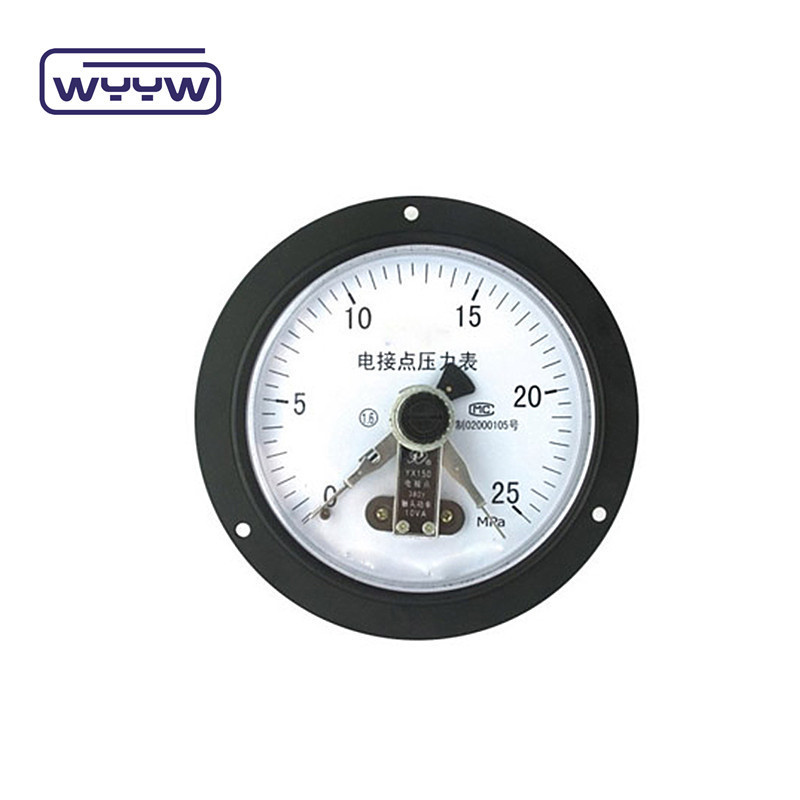

pressure gauge with back flange
Product Description
| Dials size | 2.5"(63mm),4"(100mm),6"(150mm) |
| Case | SS304, black steel |
| Pressure range | 0-100MPa, other scale unites bar, psi, kgf/cm2,ect. opitional |
| Movement | SS, brass |
| Socket | SS, brass |
| bourdon tube | phosphor bronze, SS |
| Dial plate and pointer | Aluminum |
| Window | Glass, safe glass |
| Connection size | 1/4" for 2", 2.5"case, 1/2" & 3/8" for 4" and 6" case |
| Connection thread | Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT) |
| Liquid | Silicone, glycerine or dry |
| Mounting | Bottom, back and panel |
| Accuracy | 2.5"(63mm)-2.5%; 4"(100mm) and 6"(150mm)-1.6% |
| Control | Upper and lower limits contact control |
| Working voltage | AC220V, DC380V and DC24V opitional |
| Pressure limitation |
Steady: 3/4x full scale value Fluctuation :2/3x full scale value Short time: full scale value |
