Quick Details
-
Description:
-

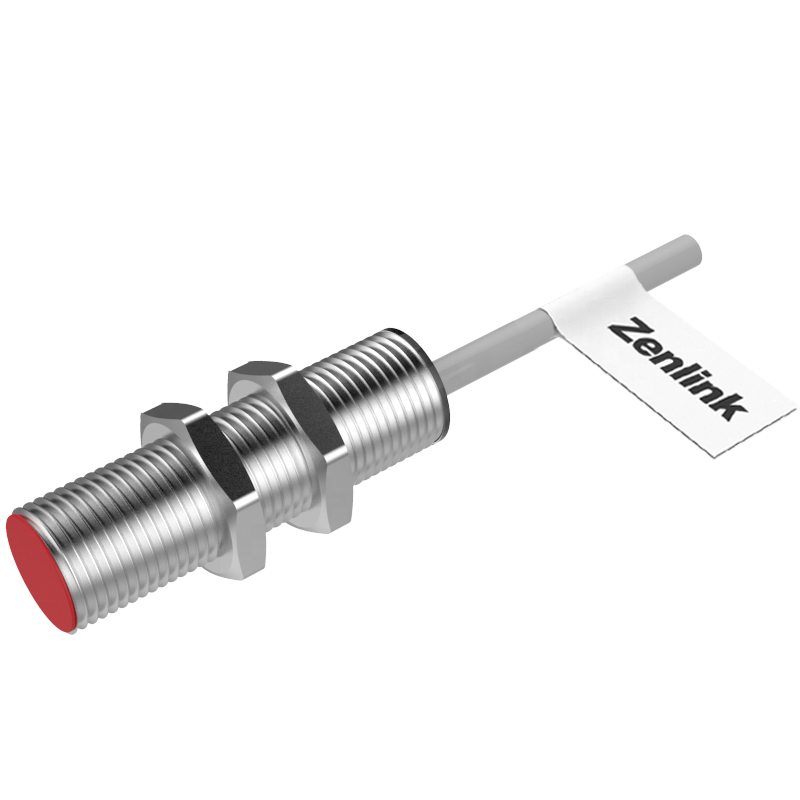

hall proximity sensor
-
Model Number:
-
MR2-M12H2L2-X6
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Zhunlian
-
Usage:
-
Magnetic hall Sensor
-
Output:
-
Switching Transducer
-
Detction distance:
-
0-10mm
-
Output status:
-
Normally open or closed
-
Certificate:
-
CE,ISO9001
-
Input voltage:
-
DC 5- 30 V
-
Waterproof grade:
-
IP67
-
Working temperature:
-
-10℃~+70℃
-
Warranty:
-
12 Months
Quick Details
-
Use:
-
position sensor
-
Series:
-
proximity sensor
-
Mounting Type:
-
Flush
-
Description:
-
hall proximity sensor
-
Model Number:
-
MR2-M12H2L2-X6
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Zhunlian
-
Usage:
-
Magnetic hall Sensor
-
Output:
-
Switching Transducer
-
Detction distance:
-
0-10mm
-
Output status:
-
Normally open or closed
-
Certificate:
-
CE,ISO9001
-
Input voltage:
-
DC 5- 30 V
-
Waterproof grade:
-
IP67
-
Working temperature:
-
-10℃~+70℃
-
Warranty:
-
12 Months
high frequency hall speed sensor switch for driveshaft 1mm sensing range mini sensor
Features
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) High on-off frequency commonly 600Hz
7) Wide voltage range
8) Dustproof, vibration-proof, waterproof and oil-proof
9) With short-circuit protection and inverted connecting protection
10) Service life up to one million
11) Adopts envelop glue, temperature resist, oil-proof colophony in it
12) Limit upgrade product
Technical data
| Detection object |
Iron or magnetic matter |
|
SN[mm] |
2 mm |
|
Power supply |
5 ~ 30V DC |
|
Housing size |
φ20mm |
|
Output |
NPN/PNP NO/NC |
|
Indicator |
Red LED light |
|
Protection grade |
IP67 |
|
Load current |
< 200mA |
|
Residual voltage |
≤1.5V |
|
Consumption current |
< 1 0 mA |
|
Protection circuit |
Surge,overload,short-circuit,reverse polarity |
|
Frequency |
DC 3wires:5000Hz |
|
Ambient temp. |
-25 ~+80 °C |
|
M aterial |
Housing: copper nickle plated Detection surface: PBT |
|
Connection |
2m PUR cable |
