Quick Details
-
Weight:
-
1-15 Ton
-
Size:
-
2.8*1.13*1.28-14.5*3.15*3.08m
-
Power:
-
5.57-30.95kW
-
Weight (KG):
-
2000 kg
-
DAF Material:
-
Carbon Steel or SS304
-
Anti-corrosion:
-
Epoxy Coating
-
To Remove:
-
Suspended Solids
-
Removal Rate:
-
> 90%
-
Oil Removal:
-
Suitable
-
Dyeing Wastewater:
-
Suitable
-
ISO Certificate:
-
ISO 9001
-
Patent Certificate:
-
Yes
-
Oversea Services:
-
No Problem
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JinWanTong
-
Material:
-
Seaworthy Package
-
Weight:
-
1-15 Ton
-
Size:
-
2.8*1.13*1.28-14.5*3.15*3.08m
-
Power:
-
5.57-30.95kW
-
Weight (KG):
-
2000 kg
-
DAF Material:
-
Carbon Steel or SS304
-
Anti-corrosion:
-
Epoxy Coating
-
To Remove:
-
Suspended Solids
-
Removal Rate:
-
> 90%
-
Oil Removal:
-
Suitable
-
Dyeing Wastewater:
-
Suitable
-
ISO Certificate:
-
ISO 9001
-
Patent Certificate:
-
Yes
-
Oversea Services:
-
No Problem
-
After Warranty Service:
-
Video technical support

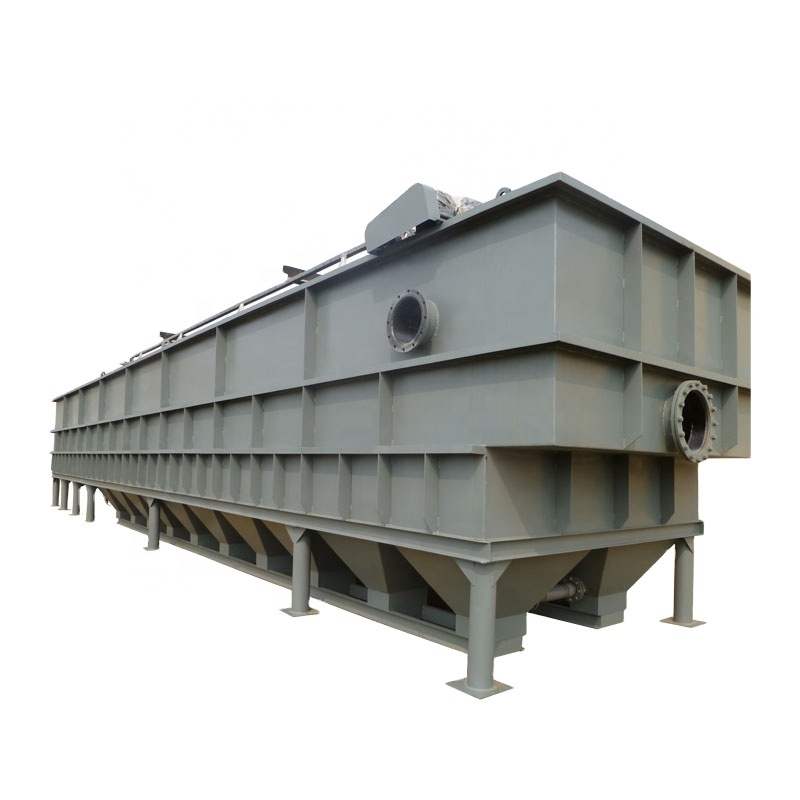

DAF dissolved air flotation daf water treatment plant
Product Description
DAF dissolved air flotation daf water treatment plant is an an open style high efficiency waste water treatment system that
clarifies waste water by removing suspended matters such as oil or solids.
The removal is achieved by dissolving air into waste water under pressure and then releasing the air to atmospheric pressure in
flotation tank.
As an experienced manufacturer started in year 2006, we provide one-stop services from project design to manufacturing,
installation and final commissioning, professional services with cheap factory price for
DAF dissolved air flotation daf water treatment plant is an an open style high efficiency waste water treatment system that
clarifies waste water by removing suspended matters such as oil or solids.
The removal is achieved by dissolving air into waste water under pressure and then releasing the air to atmospheric pressure in
flotation tank.
As an experienced manufacturer started in year 2006, we provide one-stop services from project design to manufacturing,
installation and final commissioning, professional services with cheap factory price for
DAF dissolved air flotation daf water treatment plant
working principles:
The feed water to DAF float tank is often (but not always) dosed with a coagulant (such as ferric chloride or aluminum sulfate) to
coagulate the colloidal particles and/or flocculants to conglomerate the particles into bigger clusters.
A portion of clarified effluent water leaving the DAF tank is pumped into a small pressure vessel (called air drum or saturator)
into which compressed air is also introduced. This process saturates pressurized effluent water with air under
pressure(2.5-4kg/cm2).
The air-saturated effluent water is recycled to the front of the float tank and flows through a pressure reduction valve just as
it enters the front of the float tank. This immediately results in the recycled effluent water becoming supersaturated with air as
millions of tiny bubbles form(Φ5-20μm).
These bubbles attach to, and form within, the solids or chemical flocculants entering the vessel, causing them to float to the
surface where they are retained and subsequently removed by a skimmer.
working principles:
The feed water to DAF float tank is often (but not always) dosed with a coagulant (such as ferric chloride or aluminum sulfate) to
coagulate the colloidal particles and/or flocculants to conglomerate the particles into bigger clusters.
A portion of clarified effluent water leaving the DAF tank is pumped into a small pressure vessel (called air drum or saturator)
into which compressed air is also introduced. This process saturates pressurized effluent water with air under
pressure(2.5-4kg/cm2).
The air-saturated effluent water is recycled to the front of the float tank and flows through a pressure reduction valve just as
it enters the front of the float tank. This immediately results in the recycled effluent water becoming supersaturated with air as
millions of tiny bubbles form(Φ5-20μm).
These bubbles attach to, and form within, the solids or chemical flocculants entering the vessel, causing them to float to the
surface where they are retained and subsequently removed by a skimmer.
There is a wide range of industrial and municipal applications for DAF system including:
Industrial Applications
* Poultry processing
* Meat processing
* Laundries and textiles
* Egg processing
* Byproduct rendering
* Pulp and paper
* Plastics recycling
* Dairy and milk products
* Metal plating and finishing
* Bakeries
* Confectionaries
* Food processing
* Snack food processing
* Beverage
* Petroleum and petrochemical refining
* Natural gas and petroleum fracking
* Biochemical
* Personal care products
Industrial Applications
* Poultry processing
* Meat processing
* Laundries and textiles
* Egg processing
* Byproduct rendering
* Pulp and paper
* Plastics recycling
* Dairy and milk products
* Metal plating and finishing
* Bakeries
* Confectionaries
* Food processing
* Snack food processing
* Beverage
* Petroleum and petrochemical refining
* Natural gas and petroleum fracking
* Biochemical
* Personal care products
Municipal Applications
* Waste activated sludge thickening
* Biological solids clarification
* Phosphorous removal
* Algae removal
Product Features
Features of DAF dissolved air flotation daf water treatment plant:
DAF dissolved air flotation daf water treatment plant is an efficient flotation method for water clarification, tiny bubbles
diameter 5-20μm, performs much better than CAF cavitation air flotation.
1. Large Treatment Capacity
Standard DAF system treatment capacity is 5-500m3/h, suitable for 80% applications. We also provide customized services for
special applications which require larger treatment capacity.
2. Different DAF Tank Body Material For Choosing
Standard DAF tank material is epoxy lined carbon steel Q235B, with excellent anti-corrosion performance and long service life.
Stainless steel SS304 is optional for corrosive waste water treatment.
3. Optional Sludge Hopper
Internal sludge hopper is optional to conveniently remove sedimentation.
4. Optional PLC Automatic Control
Standard DAF system control type is onsite manual control, PLC automatic control is optional.
Detail Specification
* Waste activated sludge thickening
* Biological solids clarification
* Phosphorous removal
* Algae removal
Product Features
Features of DAF dissolved air flotation daf water treatment plant:
DAF dissolved air flotation daf water treatment plant is an efficient flotation method for water clarification, tiny bubbles
diameter 5-20μm, performs much better than CAF cavitation air flotation.
1. Large Treatment Capacity
Standard DAF system treatment capacity is 5-500m3/h, suitable for 80% applications. We also provide customized services for
special applications which require larger treatment capacity.
2. Different DAF Tank Body Material For Choosing
Standard DAF tank material is epoxy lined carbon steel Q235B, with excellent anti-corrosion performance and long service life.
Stainless steel SS304 is optional for corrosive waste water treatment.
3. Optional Sludge Hopper
Internal sludge hopper is optional to conveniently remove sedimentation.
4. Optional PLC Automatic Control
Standard DAF system control type is onsite manual control, PLC automatic control is optional.
Detail Specification
|
Model
|
Flow Rate(m3/h)
|
Recycle Pump Power(kW)
|
Air Compressor Power(kW)
|
Overall Size(mm)
|
|
DAF-5
|
5
|
3
|
0.37
|
3200*1200*1200
|
|
DAF-10
|
10
|
3
|
0.37
|
4000*1200*1200
|
|
DAF-20
|
20
|
4
|
0.37
|
4800*1200*1500
|
|
DAF-30
|
30
|
4
|
0.37
|
5800*1500*1500
|
|
DAF-50
|
50
|
7.5
|
0.37
|
6500*1800*1800
|
|
DAF-80
|
80
|
7.5
|
0.55
|
7500*2000*2000
|
|
DAF-100
|
100
|
15
|
0.55
|
12500*2200*2000
|
|
DAF-150
|
150
|
18.5
|
0.75
|
14000*2200*2200
|
|
DAF-200
|
200
|
18.5
|
0.75
|
15500*2600*2200
|
|
DAF-250
|
250
|
22
|
1.1
|
16500*2800*2200
|
|
DAF-300
|
300
|
22
|
1.1
|
17500*2800*2400
|
|
DAF-350
|
350
|
22
|
1.1
|
18500*3600*2400
|
|
DAF-400
|
400
|
30
|
1.5
|
20000*3600*2600
|
|
DAF-450
|
450
|
30
|
1.5
|
21500*4000*2800
|
|
DAF-500
|
500
|
37
|
1.5
|
23000*4400*2800
|
Customized services are available:
Standard treatment capacity is 5-500m3/h, if you need larger treatment capacity, please feel free to contact us (customizable).
Detailed Images
Detail images of DAF dissolved air flotation daf water treatment plant:
or more details, please feel free to contact us:
Experienced manufacturer started in year 2006, one-stop services from project design to manufacturing, installation and final
commissioning, professional services with cheap factory price for you.
Standard treatment capacity is 5-500m3/h, if you need larger treatment capacity, please feel free to contact us (customizable).
Detailed Images
Detail images of DAF dissolved air flotation daf water treatment plant:
or more details, please feel free to contact us:
Experienced manufacturer started in year 2006, one-stop services from project design to manufacturing, installation and final
commissioning, professional services with cheap factory price for you.
