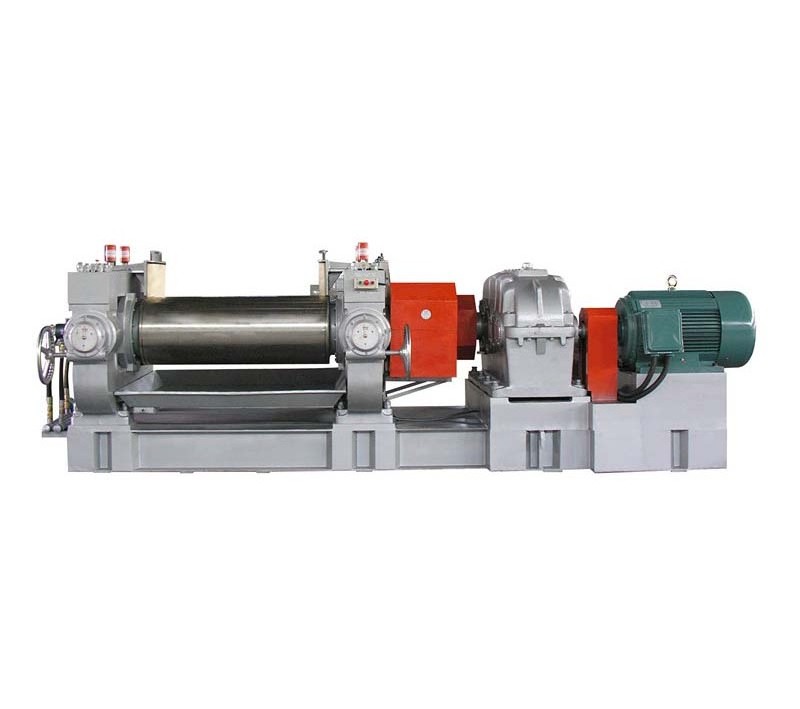

X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill

X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill

FOB Reference Price: Get Latest Price
≥1 Sets
US $7900
≥3 Sets
US $6200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Voltage:
110V/220V
Dimension(L*W*H):
3500*3200*2800mm, 1600*2000*1800mm
Year:
2023
Power (kW):
4.5kw
Weight (KG):
8000 KG
Application:
mixing mill for rubber
Working diameter of rolls(mm)::
400
Working length of rolls(mm)::
1000
Friction ratio::
1:1.3
Max.nip(mm)::
8
Length of Roll(mm)::
1200mm
Rotation Speed of Front Roll(rpm)::
17-18

Quick Details

Diameter of Roll(mm):
400 mm
Rotation Speed of Front Roll(rpm):
1 - 30 rpm
Length of Roll(mm):
2300 mm, 1000 mm
Place of Origin:
Shandong, China
Voltage:
110V/220V
Dimension(L*W*H):
3500*3200*2800mm, 1600*2000*1800mm
Year:
2023
Power (kW):
4.5kw
Weight (KG):
8000 KG
Application:
mixing mill for rubber
Working diameter of rolls(mm)::
400
Working length of rolls(mm)::
1000
Friction ratio::
1:1.3
Max.nip(mm)::
8
Length of Roll(mm)::
1200mm
Rotation Speed of Front Roll(rpm)::
17-18
X(S)K-400 open type two roll rubber mixing mill for silicone rubber processing open two roll mill


Characteristic and advantage:
1. For the convenience of maintenance and installation and reliable operation, the principal and auxiliary machine adopt wholly cast steel seat mixing.

2. Oil seal device is set in roll bearings and oil circuit lubrication adopts manual dry oil cup in to keep the lubrication well, operation convenient and environment clean.

3. All drive gears are made from cast steel, and of such advantages as high strength material, stable running, high wearability and long working life, etc.

4. Equipped with emergency brake equipment. When emergency accidents occur, it will brake automatically with reliability and safety.

5. Using hard-tooth surface gearbox to drive the rollers, which has lower noise and longer life.

6. In order to save labor and operate conveniently, roll gap adopts worm wheel and worm adjustment.
model
XK-400
XM-450
XK-560
roller diameter
400mm
450mm
560mm
roller woorking
1000mm
1200mm
1530mm
front roller linear speed
16.5m /min
18.65 m/min
24.5m/min
friction ratio of rollers
1:1.25
1:1.27
1:1.2
Max gap
10mm
15mm
20mm
motor
37 kw
55 kw
75 kw
batch capacity
18-35 kg
25-50 kg
50-65 kg
machine size
4250*1850*1870mm
5200*2380*1700mm
6120*2282*2000mm
machine weight
7600kg
13000 kg
22000 kg
CROWNS MACHINERY
Qingdao crowns machinery co.,ltd was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.

CROWNS MAIN PRODUCTS

* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.

Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.

Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
