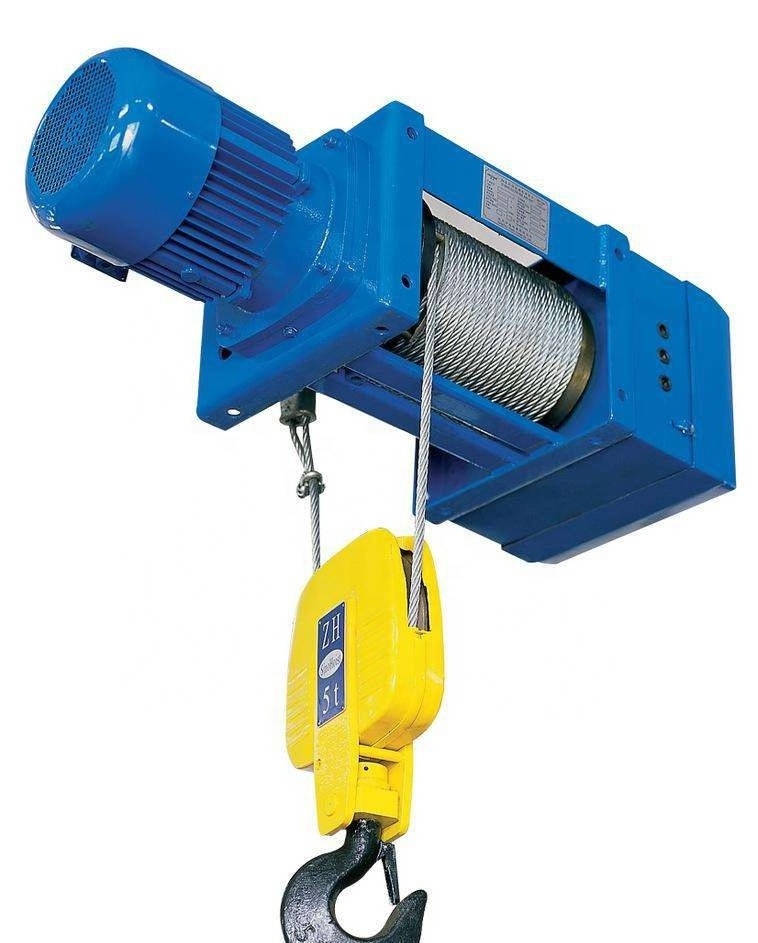

CD,MD Electric Wire rope Hoist is a small-sized lifting equipment, which can be mounted on single beam bridge crane and single beam gantry crane and jib crane. With Light weight, small size, compact structure, stable operation, etc. It can also be used as a winch.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. CD Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kehao
-
Lift Speed:
-
2.6m/min~7.2m/min
-
Weight (KG):
-
600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
PDH
-
Color:
-
As your requirements
-
Test load:
-
0.625t~6.25t
-
Power source:
-
Three-phase AC 380V 50HZ
-
Operated:
-
Safety and convenience
-
Protection device:
-
Include
-
Application:
-
Used in factories,mines,Harbous,etc
-
Capacity:
-
100kg -1000kg
-
After Warranty Service:
-
Video technical support
Quick Details
-
Warranty:
-
1 Year
-
Applicable Industries:
-
Factory or workshop
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kehao
-
Lift Speed:
-
2.6m/min~7.2m/min
-
Weight (KG):
-
600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
PDH
-
Color:
-
As your requirements
-
Test load:
-
0.625t~6.25t
-
Power source:
-
Three-phase AC 380V 50HZ
-
Operated:
-
Safety and convenience
-
Protection device:
-
Include
-
Application:
-
Used in factories,mines,Harbous,etc
-
Capacity:
-
100kg -1000kg
-
After Warranty Service:
-
Video technical support
RELATED PRODUCTS
PRODUCT OVERVIEW
Products Descreption
PRODUCTS SHOW
Pure Copper Motor
Hook
Wire Rope
Rope Guide Device
Limiter
Electrical Control Box
SPECIFICATION
|
Technical Parameters for CD1 Electric Wire Rope Hoist
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Unit
|
CD1-0.5T
|
CD1-1T
|
CD1-2T
|
CD1-3T
|
CD1-5T
|
CD1-10T
|
CD1-16T
|
||||||||
|
Lifting capacity
|
Ton
|
0.5
|
1
|
2
|
3
|
5
|
10
|
16
|
||||||||
|
Lifting speed
|
m/min
|
8
|
8
|
8
|
8
|
8
|
7
|
3.5
|
||||||||
|
Lifting height
|
m
|
6 / 9 / 12
|
6/9/12/18/24/30
|
|
|
|
9/12/18/24/30
|
|
||||||||
|
Running speed
|
m/min
|
20
|
20
|
20
|
20
|
20
|
20
|
18
|
||||||||
|
Min. radius of curvature
|
m
|
1.8 / 2
|
2 / 2.5 / 3.0
|
|
|
|
|
3.5 / 4 / 9
|
||||||||
|
Power supply
|
V
|
380V 50Hz 3Phase
|
|
|
|
|
|
|
||||||||
|
Rail I-beam model
|
/
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32b-63c
|
45a-63c
|
||||||||
|
Technical Parameters for MD1 Electric Wire Rope Hoist
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Unit
|
MD1-0.5T
|
MD1-1T
|
MD1-2T
|
MD1-3T
|
MD1-5T
|
MD1-10T
|
MD1-16T
|
||||||||
|
Lifting capacity
|
Ton
|
0.5
|
1
|
2
|
3
|
5
|
10
|
16
|
||||||||
|
Lifting speed
|
m/min
|
0.8 / 8
|
|
|
|
|
0.7 / 7
|
0.35 / 3.5
|
||||||||
|
Lifting height
|
m
|
6 / 9 / 12
|
6/9/12/18/24/30
|
|
|
|
9/12/18/24/30
|
|
||||||||
|
Running speed
|
m/min
|
20
|
20
|
20
|
20
|
20
|
20
|
18
|
||||||||
|
Min. radius of curvature
|
m
|
1.8 / 2
|
2 / 2.5 / 3.0
|
2 / 2.5 / 3.0
|
2 / 2.5 / 3.0
|
2 / 2.5 / 3.0
|
2 / 2.5 / 3.0
|
3.5 / 4 / 9
|
||||||||
|
Power supply
|
V
|
380V 50Hz 3Phase
|
|
|
|
|
|
|
||||||||
|
Rail I-beam model
|
/
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32b-63c
|
45a-63c
|
||||||||
PRODUCTS STOCK
PACKING & SHIPPING
Our Services
1. 18Months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2. Two years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
2. Two years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
