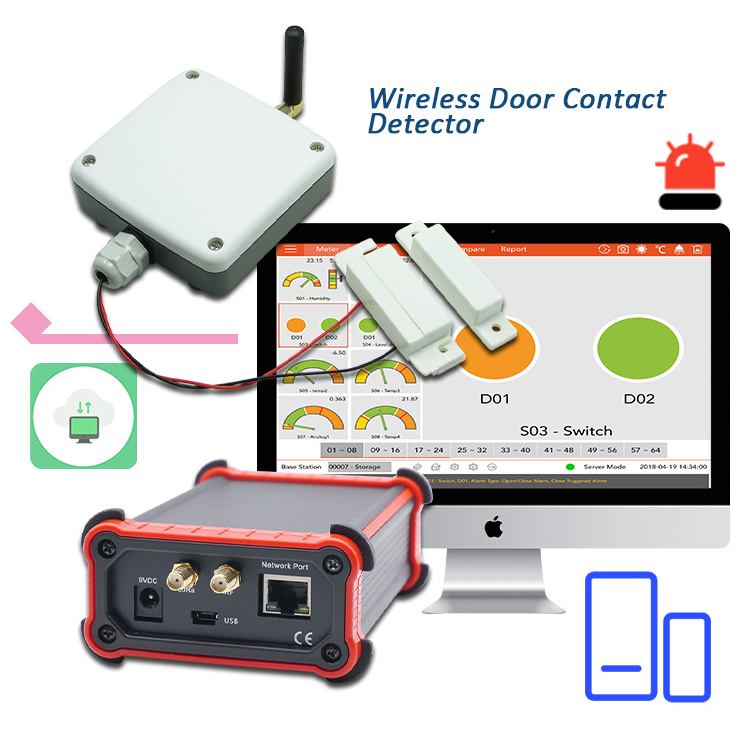

Wireless Remote Sensor 433 mhz Building Management Door Contact Sensor Wireless Magnetic Door detector iot device

G7-D2 Wireless Digital Alarm Input

With G7 wireless digital alarm input and Base Station, you can start monitoring sensor measurement online remotely.

Wireless sensor G7 transmits measurement of any detector with dry contact output signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.

G7-Centre App receives data from Base Station over Internet or LAN.

G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by alarm triggered by alarm e.g. smoke detector, level switch, water leakage.

G7-D2 is a wireless digital alarm sensor.

It transmits analog sensor data wireless via RF.

[In the Package]

1 x Base Station & RF Antenna

1 x AC/DC Adaptor

1 x Ethernet Cable

Up to 64 x Wireless Sensors in one single system

[How it Works]

(1) Wireless Sensor

The sensor transmits the digital detector alarm to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.

* G7-AD Wireless Analog Sensor

* G7-D2 Wireless Digital Alarm Input

* G7-T2/TX Wireless Temperature Sensor

* G7-H2/H3 Wireless Temperature Humidity Sensor

* G7-T2/TX-Ex Wireless Temperature Sensor [Extended Power]

* G7-H2/H3-Ex Wireless Temperature Humidity Sensor [Extended Power]

(2) Base Station

It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.

(3) G7 Wireless Client App for Windows, iPad, Android

By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.

[Technical Specification]

[Applications]

applications:
- building management
- hotel room or office door open
- hospital or dangerous sites
- machines room or data centre
