High density and long life
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
65 KG
-
Ink Type:
-
water based Pigment ink, Pigment Ink
-
Product name:
-
Fluorescent DTF Printer
-
Printhead:
-
EPN i3200/4720
-
Printheads Number:
-
2~4
-
Print Width:
-
600mm/300mm
-
Precision Mode:
-
VSD 3
-
Color:
-
K C M Y W
-
Ink Capacity:
-
5*2L
-
RIP Software:
-
Maintop/Optional
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
po-try
-
Dimensions(L*W*H):
-
1740*805*1300mm
-
Weight:
-
65 KG
-
Ink Type:
-
water based Pigment ink, Pigment Ink
-
Product name:
-
Fluorescent DTF Printer
-
Printhead:
-
EPN i3200/4720
-
Printheads Number:
-
2~4
-
Print Width:
-
600mm/300mm
-
Precision Mode:
-
VSD 3
-
Color:
-
K C M Y W
-
Ink Capacity:
-
5*2L
-
RIP Software:
-
Maintop/Optional
PO-TRY Provides
Lifelong
After-Sales Services
↑ New Upgrade
SAME PRICE $
SAME PRICE $
PO-TRY DTF Printer 1.0
PO-TRY DTF Printer 2.0
Why you must try
PO-TRY
's DTF printer
$1.5
T-shirt cost
$0.2
Ink cost
$1.7
Whole Cost
$1.7
Self made
$20
Selling
$18
Earning
|
type
|
size
|
Box regulations
|
Configuration
|
Remark
|
|
Ink C1
|
|
|
White
|
For more types of ink, please consult customer service
|
|
|
|
|
black, color
|
|
|
Fluorescent ink
|
|
|
Fluorescent color
|
|
|
Hot melt powder
|
BC01-XS
|
20KG/box |
White(ultrafine powder)
|
Special for fluorescent colors
|
|
|
BC02-S
|
|
white (fine powder)
|
/
|
|
|
BCO4-M
|
|
White (medium pink)
|
/
|
|
|
BC08-MS
|
|
White (medium fine powder)
|
/
|
|
|
BC06
|
|
White (super soft pink)
|
/
|
|
single face mask
|
C1-30cm*1000cm
|
2 rolls/box
|
/
|
For more types of heat transfer films, please consult customer service
|
|
|
C1-60cm*1000cm
|
1 roll/box
|
/
|
|
|
|
C2-30cm*1000cm
|
2 rolls/box
|
/
|
|
|
|
C2-60cm*1000cm
|
1 roll/box
|
/
|
|
|
|
C2-A3
|
|
|
|
|
|
C2-A4
|
|
|
|
|
double mask
|
C1-30cm*1000cm
|
2 rolls/box
|
/
|
|
|
|
C1-60cm*1000cm
|
1 roll/box
|
/
|
|
|
|
C2-30cm*1000cm
|
2 rolls/box
|
/
|
|
|
|
C2-60cm*1000cm
|
1 roll/box
|
/
|
|
|
|
C2-A3
|
|
Minimum order of 1 box
|
|
|
|
C2-A4
|
|
|
|
Product Size

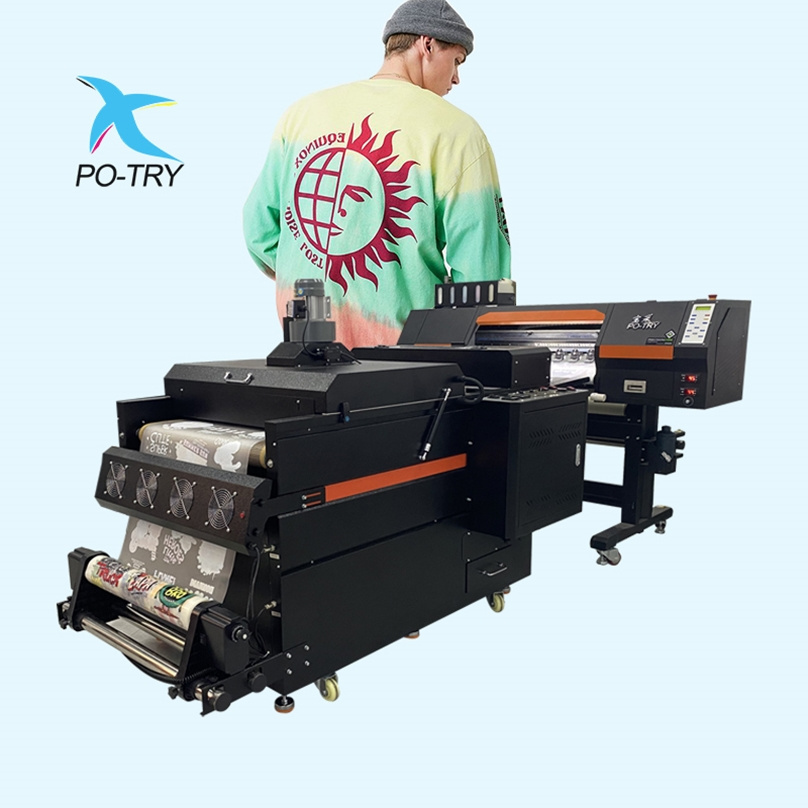

PO-TRY DTF Printer
Shaking Powder Machine
Core Advantages
01
EPSON Print Heads Optional
I3200/4720 Original Print Heads
02
Lacking Ink Alarming System
Protect the print head and printer
03
I
ntelligent Control Panel
Easily adjust print head and printing position
04
Aluminum Capping Station
System
Protect the print head and reduce the lose
05
Japan THK
ultra-quiet guide rail
1*15mm guide rail-M
ore stable
06
White Ink
circulation
system-WIMS(white ink management system)
Prevent the white ink setting and reduce ink loss
07 Central/Stepper Shaft
Diameter=20mm, provides stable and highly accurate printing
08 JAPAN NSK Bearing
Better printing accuracy
09
Big Pinch Roller
Three Level adjustable,
adapt to various printing consumables
10
Leadshine brushless
integrated
serve motor
Strictly control high mechanical precision printing
11
Guide Platform
Heating
Segmented heating, front and back heating, protects the print head from clogging while preventing ink flow
|
Specification & Technical Data
|
|
|
||
|
Model Number
|
HT-0602IA-01
|
HT-0604IA-01
|
||
|
Printhead
|
EPSON 4720/ EPSON i3200
|
|
||
|
Number of Printheads
|
2
|
4
|
||
|
Print Resolution /Speed
|
4pass:16㎡/H
6pass:8㎡/H
|
4pass:25㎡/H
6pass:14㎡/H
|
||
|
Print Width
|
600mm
|
|
||
|
Ink Type
|
Water-based pigment ink, white ink
|
|
||
|
Ink Capacity
|
5*2L
|
|
||
|
Precision Mode
|
VSD
|
|
||
|
Color
|
K C M Y W
|
|
||
|
Work Environmen
|
Temperature: 15℃-28℃;Relative Humidity: 40%-60%
|
|
||
|
Rolling System
|
Automatic
|
|
||
|
Drying System
|
External Drying system
|
|
||
|
Print Interface
|
USB3.O/ Network Interface
|
|
||
|
RIP Software
|
Maintop
|
|
||
|
Power Supply
|
AC110V ± 10%.AC220V ± 10%.50/60 ± 1Hz
|
|
||
|
Power (Watt)
|
2000W
|
|
||
|
Language Of Operating System
|
Chinese & English
|
|
||
|
Printer Size
|
L2000mm*W800mm*H1100mm
|
|
||
|
Printer Outer Box Size
|
L2100mm*W900mm*H1200mm
|
|
||
|
Powder Dryer Machine size
|
L2023mm*W1210mm*H1337mm
|
|
||
|
Powder Dryer Machine Outer Box Size
|
L1850mm*W1310mm*H1367mm
|
|
||
|
Net Weight
|
100KG ( printer weight)
|
180KG( Powder dryer weight)
|
||
|
Gross Weight
|
130KG( printer weight)
|
260KG (Powder dryer weight)
|
||
Printing Process
01
DESIGN PICTURE
02
Printing
03
Powder shaking
04
Printed Film
05
Heat Press
06
Get the products
Application
Suitable for all clothes, textile fabric
T-shirts, sweaters, jerseys, jeans, canvas bags, and other clothing textile fabrics, such as aprons, and even shoes.
