Quick Details
-
Power:
-
180W
-
Dimension(L*W*H):
-
1100*800*1750
-
Weight:
-
1300 KG
-
Product name:
-
Wiped Thin Film Oil Distiller System Hybrid Molecular Distillation
-
Effective Evaporation Area (M2):
-
0.06
-
Barrel Diameter(mm):
-
60
-
Feeding Funnel Volume:
-
1L
-
Feed Rate (G/H):
-
250-500
-
Motor Power (W):
-
90
-
Maximum Speed (Rpm):
-
0-500
-
Distillate Receiving Flask :
-
1L
-
Recicle Receiving Flask :
-
1L
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FBL
-
Voltage:
-
220V/50HZ
-
Power:
-
180W
-
Dimension(L*W*H):
-
1100*800*1750
-
Weight:
-
1300 KG
-
Product name:
-
Wiped Thin Film Oil Distiller System Hybrid Molecular Distillation
-
Effective Evaporation Area (M2):
-
0.06
-
Barrel Diameter(mm):
-
60
-
Feeding Funnel Volume:
-
1L
-
Feed Rate (G/H):
-
250-500
-
Motor Power (W):
-
90
-
Maximum Speed (Rpm):
-
0-500
-
Distillate Receiving Flask :
-
1L
-
Recicle Receiving Flask :
-
1L
-
After Warranty Service:
-
Video technical support

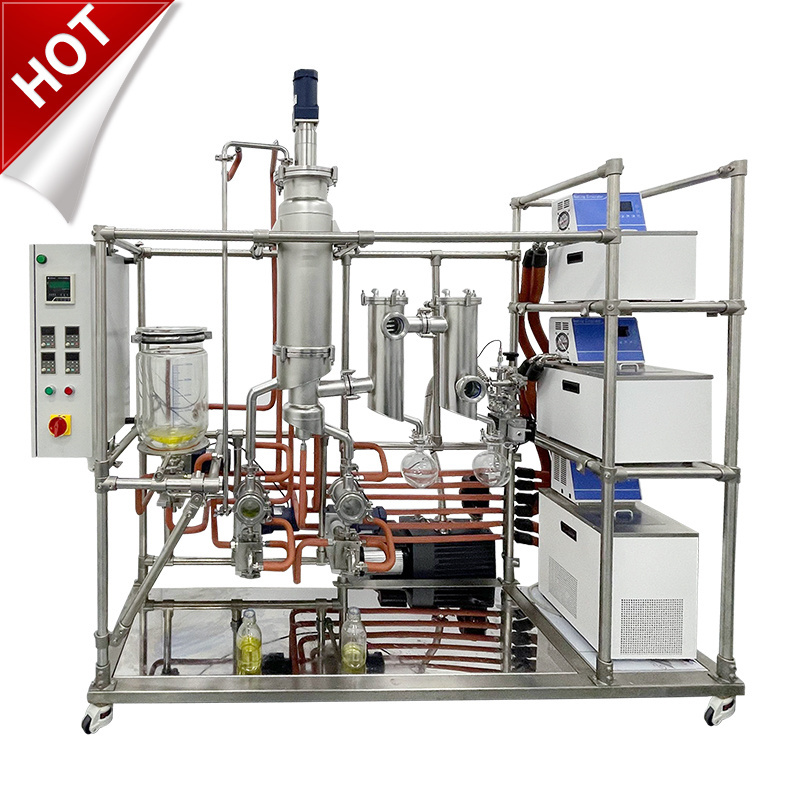

Wiped Thin Film Oil Distiller System Hybrid Molecular Distillation
Molecular distillation is a special liquid-liquid separation technique. It differs from traditional distillation by the principle of separation of boiling points, but by the difference in the mean free path of molecular motion of different substances. Using the working principle of molecular distillation, our KMD series of short-range molecular distillation systems are highly efficient plant essential oil purification equipment for high purity essential oils. Short Path Wiped Film Molecular Distillation Short Path Distillation
|
PARAMETER |
||||||
|
Model |
BM-60 |
BM-80 |
BM-100 |
BM-150 |
BM-200 |
BM-230 |
|
Main evaporator diameter (mm) |
60 |
80 |
100 |
150 |
200 |
230 |
|
Effective evaporation area |
0.06 |
0.1 |
0.15 |
0.25 |
0.35 |
0.5 |
|
Feeding speed (kg / h) |
0.5-3 |
1-5 |
2-8 |
3-15 |
5-20 |
8-30 |
|
Feed tank volume (L) |
1 |
1 |
2 |
2 |
5 |
5 |
|
Maximum speed (R / min) |
450 |
450 |
450 |
450 |
300 |
300 |
|
Volume of collecting bottle (L) |
1 |
1 |
2 |
3 |
5 |
5 |
|
Motor power (W) |
90 |
120 |
120 |
120 |
200 |
200 |
|
Operating temperature ( ℃ ) |
-90~220 |
|||||
|
Voltage (V /Hz ) |
220/50 (The voltage can be customized) |
|||||
