Quick Details
-
Brand Name:
-
Maxtor
-
Model Number:
-
MT-2803
-
Type:
-
potting compound
-
Product name:
-
two component potting AB Glue
-
Material:
-
100% Silicone
-
Keywords:
-
Silicone Potting Compound
-
Shelf life:
-
6 Months
-
Color:
-
Grey
-
Package:
-
50kg/set
-
Advantage:
-
New raw material
Quick Details
-
CAS No.:
-
63148-60-7
-
Other Names:
-
silicone potting adhesive
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maxtor
-
Model Number:
-
MT-2803
-
Type:
-
potting compound
-
Product name:
-
two component potting AB Glue
-
Material:
-
100% Silicone
-
Keywords:
-
Silicone Potting Compound
-
Shelf life:
-
6 Months
-
Color:
-
Grey
-
Package:
-
50kg/set
-
Advantage:
-
New raw material
MT-2803 LED driver silicone potting compound adhesive Fine powder good epoxy resin potting 1.0W/mk Heat transfer waterproof
Application
Product Description
Parameter
|
Before Mixing
|
Component
|
A
|
B
|
|
Color
|
White fluid
|
Black
fluid
|
|
|
Viscosity(CP)
|
2600~3200
|
2600~3200
|
|
|
Density (g/ml)
|
1.64~1.65
|
1.64~1.65
|
|
After Mixing
|
Mixing Ratio(weight ratio)
|
MT-2804
|
|
Color
|
Grey
|
|
|
Viscosity(CP)
|
2600~3200
|
|
|
Operating Time (min)
|
40~60
|
|
|
Curing Time (25℃,H)
|
2~4
|
|
|
Curing Time (80℃,min)
|
10~20
|
|
|
Hardness(shore A)
|
53~63
|
|
|
Thermal Conductivity(W/m.k)
|
0.8±0.2
|
|
|
Dielectronic strength(KV/mm)
|
14
|
|
|
Volume resistivity(Ω·cm)
|
≥1.0×10
14
|
Using Guide
Product Features (1:1 )
1.Two-part 1:1 mixture addition type silicone adhesive
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4. Moisture resistance and good waterproof
5. Excellent flame resistanceProduct Features (1:1)
1.Two-part 1:1 mixture addition type silicone adhesive
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4. Moisture resistance and good waterproof
5. Excellent flame resistance
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4. Moisture resistance and good waterproof
5. Excellent flame resistanceProduct Features (1:1)
1.Two-part 1:1 mixture addition type silicone adhesive
2.Low hardening shrinkage
3.Excellent electrical insulation in high temperature and stability
4. Moisture resistance and good waterproof
5. Excellent flame resistance
Instruction
1.Please make sure the coated surface is absolutely clean and dry,and remove the rust,dust and oil stains on the surface before use.
2.Cut the projecting part on the top of the tube,then squeeze out the glue on the bojects and apply it evenly.
3.If the thickness of glue applied on the objects ranges from 2mm to 4mm,it's better to place th objects under indoor temperature and with 55% relative humidity,then it'll cure naturally within 24 hours.But if the thickness of glue applied on the objects surpasses 6mm.it'll takes at least 7 days to cure under the same condition.
4.Please store the glue sealed after used
.
Caution
1.This product is non-toxic after completely cured,but should avoid contact with the eyes and childrenbefore curing.
2.working area maintain ventilation.
3.If contact with th skin,wipe clean,and then rinse with water;if contact with eyes,immediately wash with water,and go to the hospital to check.
4.Before a large amount of use, Please try a small amount of trial to confirm Is it appropriate.
Product Advantage
A None White Oil
We used 100% silicone oil into our products and avoid the influence from white oil which is cheap raw material used to construct silicone sealant.
B Strong Bonding
Our silicone gel has better bonding for many material as glass/metal/PC/ABS/PVC and so on.
C Excellent Waterproof
Our silicone gel can reach IP67 level that make sure electronic product can work normally.
D Longterm-Shelf life
Because of customers from all around the world, our silicone gel will has 6 months Storage period that make sure customers can use within a long time.
E Different Packages
We can customize different package for customers,anyway we have packages as 5kg/10kg/20kg/50kg/400kg to meet customer’s process requirements.

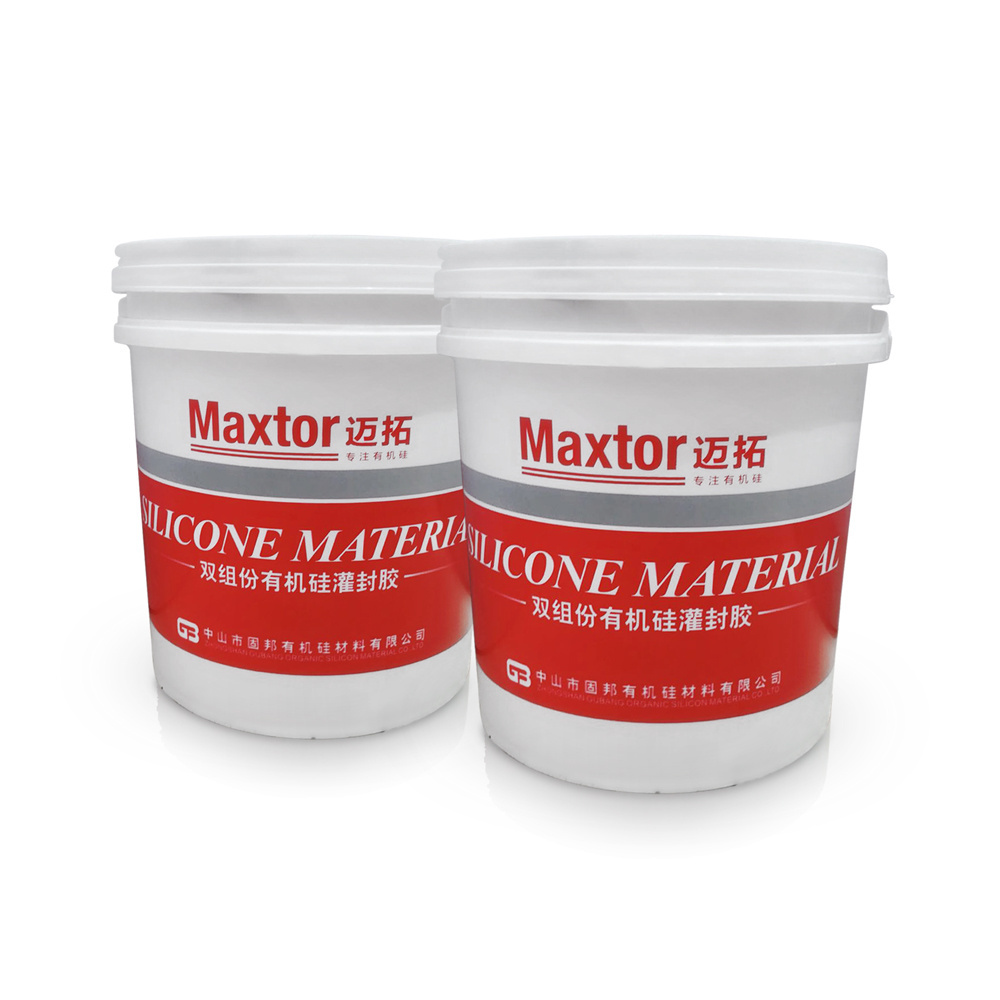

Packing
1. 10L barrel
20kg/set(A10kg+B10kg),
2. 20L barrel
50kg/set(A25kg+B25kg)
3. Customized special package
Company picture
Exhibition Records
Contact Information
MAXTOR NEW MATERIAL CO.,LTD Kinny
MOB:86-13560622308 Tel:+86-760-22771827 Fax:+86-760-89768189 Add:JiChang Industrial Zone,DongFeng Town.ZhongShan City,GuangDong Province.China
