Long life electric lightweight thin battery heater portable silicone rubber heating pad

Long life electric lightweight thin battery heater portable silicone rubber heating pad

FOB Reference Price: Get Latest Price

≥10 Pieces

US $4.3

≥500 Pieces

US $4

≥1000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Topright

Dimension(L*W*H):: customized

Weight:: KG

Working Temperature Range:: -5 - 200 ℃

Core Components:: resistance wire

Power(W):: 1w/cm2

Heating resistance wire:: Ni-Cr or FeCrAl

thermostat:: with or w/o

Thermocouple:: K or J type

Lead wire:: 300-1500mm

Color:: Red or special as the customer's requirements

3M adhesive:: with or w/o

After Warranty Service:: Online support

Quick Details

Type:: Air Heater

Power Source:: Electric

Voltage:: 12-240V

Place of Origin:: Jiangsu, China

Brand Name:: Topright

Dimension(L*W*H):: customized

Weight:: KG

Working Temperature Range:: -5 - 200 ℃

Core Components:: resistance wire

Power(W):: 1w/cm2

Heating resistance wire:: Ni-Cr or FeCrAl

thermostat:: with or w/o

Thermocouple:: K or J type

Lead wire:: 300-1500mm

Color:: Red or special as the customer's requirements

3M adhesive:: with or w/o

After Warranty Service:: Online support

Products Description

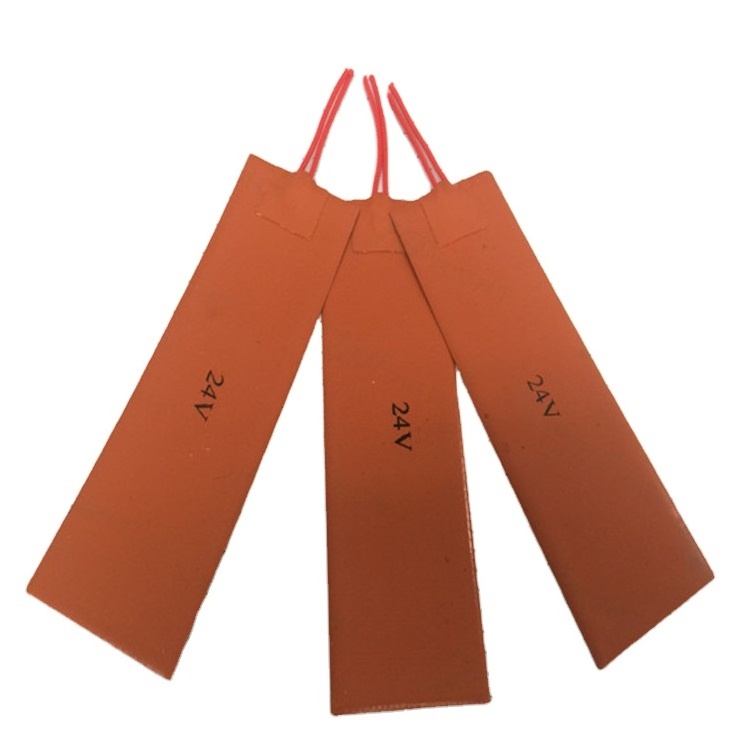

Topright Brand silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact; the heating elements of nickel alloy foil processing form, more uniform heating. In this way, we can let the heat transfer to any desired place.

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm,.

Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.

Details Images

Product Paramenters

Maximum temperature resistant of insulant	300°C
Maximum Operating Temperatures	250 °C
Power deviation	8%
Insulating resistance	≥ 5 MΩ
Compressive strength	1500V/5
Width range	20mm-1000mm
Length range	25mm-1000mm

Application

Main Application:

* Industrial equipment, pipelines, barrels, tanks, etc;
* Thermal transfer equipment;
* Medical equipment and devices;
* Airplane engine heaters and aerospace industry;
* Laser printers, duplicating machines;
* 3D printer.
