Quick Details
-
Dimension(L*W*H):
-
950*98*180cm
-
Power (kW):
-
46
-
Weight (KG):
-
3500 kg
-
Panel Feed Speed(m/min):
-
6m/min
-
Minimum panel width:
-
150mm
-
Gas tank capacity:
-
5L
-
Plate thickness:
-
18-25mm
-
Minimum plate length:
-
350mm
-
Oblique straight edge banding strip size:
-
40*0.8mm
-
Special-shaped edge banding strip size:
-
56*0.6mm
-
Glue pot capacity:
-
2.6L
-
Glue pot temperature:
-
110-210℃
-
Air source:
-
0.6-0.8Mpa
-
Speed:
-
6m/min
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOODFUNG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
950*98*180cm
-
Power (kW):
-
46
-
Weight (KG):
-
3500 kg
-
Panel Feed Speed(m/min):
-
6m/min
-
Minimum panel width:
-
150mm
-
Gas tank capacity:
-
5L
-
Plate thickness:
-
18-25mm
-
Minimum plate length:
-
350mm
-
Oblique straight edge banding strip size:
-
40*0.8mm
-
Special-shaped edge banding strip size:
-
56*0.6mm
-
Glue pot capacity:
-
2.6L
-
Glue pot temperature:
-
110-210℃
-
Air source:
-
0.6-0.8Mpa
-
Speed:
-
6m/min
Products Description

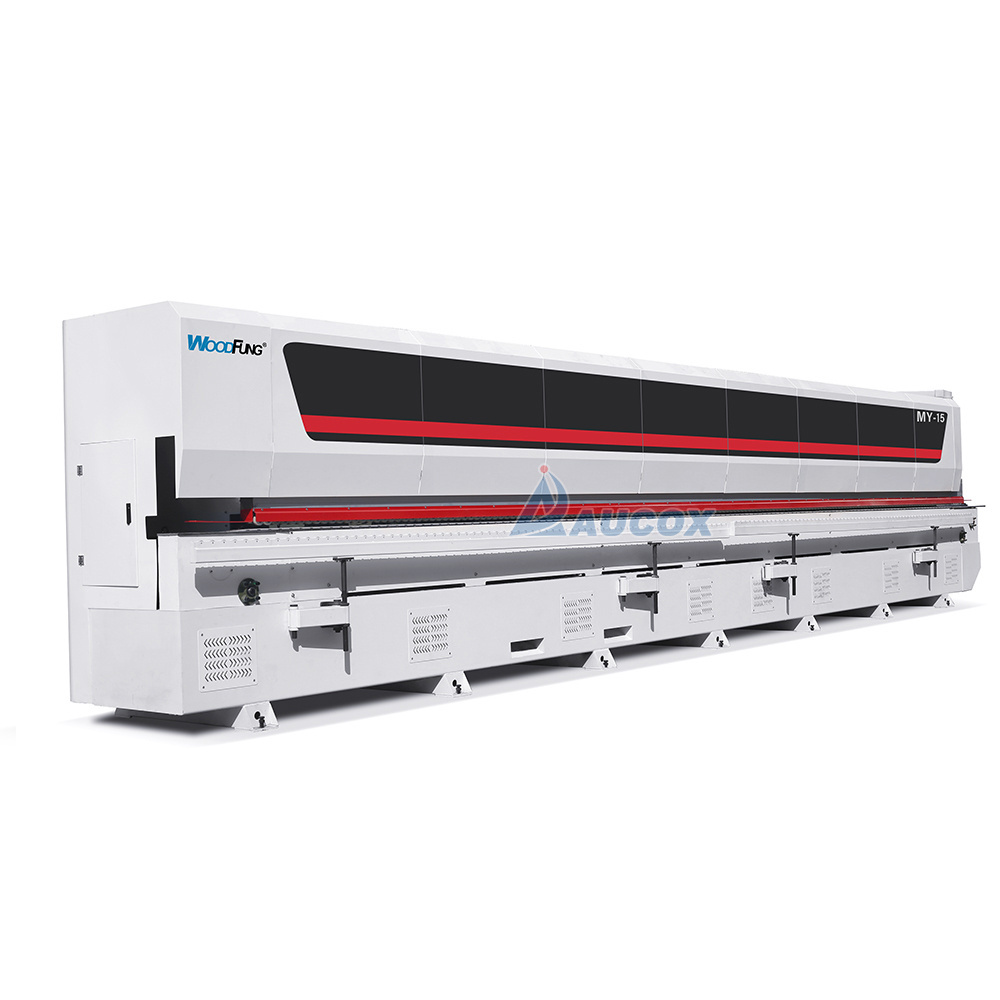

MY-15 Automatic Soft Forming Edge Banding Machine J-shape, C-shape, L-shape, the arc shape Wheels Forming | Multiple temperature control | Remote Upgrade
Advantage
1、Multi-wheeled pressing, reduce the friction when pressing and pasting, the edge banding tape is more closely pasted, more solid and more beautiful.
2、Multiple pre-milling design, so that the plate will not be displaced when milling, to ensure that the slotting position is accurate, and the milling shape is more smooth.
3、Using 6 infrared baking lamps, 9 heating tubes, and air conditioning to stabilize the temperature of the pressing area, to ensure that the machine can operate normally in a low-temperature environment.
4、Operating system can switch processing shapes with one key, and support remote upgrade and remote control.
5、Built-in 16 kinds of processing shape, can be matched with dozens of cabinet door shape.
6、Rigid body, heavy-duty aluminum alloy pressure beam, and electrical parts of famous brands ensure that the machine can run stably.
|
Model
|
MY-15
|
Transmission motor power
|
5.5KW
|
||
|
Total power
|
46kw
|
Vertical pre-milling motor power
|
2.2KW*2
|
||
|
Voltage
|
380V 50Hz
|
Bevel edge pre-milling motor power
|
4KW
|
||
|
Air source
|
0.6-0.8Mpa
|
Special-shaped rough milling motor power
|
4KW
|
||
|
Speed
|
6m/min
|
Special-shaped precision milling motor 1 Power
|
6KW
|
||
|
Glue pot capacity
|
2.6L
|
Special-shaped precision milling motor 2 power
|
6KW
|
||
|
Glue pot temperature
|
110-210℃
|
Special-shaped precision milling motor 3 power
|
0.55KW
|
||
|
Hot melt adhesive type
|
EVA
|
Precision milling servo motor power
|
0.75KW*3
|
||
|
Gas tank capacity
|
5L
|
Infrared baking lamp power
|
0.29KW*6
|
||
|
Cooling nozzle
|
Separating water
|
Air conditioning power
|
3.3KW
|
||
|
Cleaning nozzle
|
Wash board water
|
Edge banding strip slotting motor power
|
0.65KW
|
||
|
Oblique straight edge banding strip size
|
40*0.8mm
|
Glue coating motor power
|
0.3KW
|
||
|
Special-shaped edge banding strip size
|
56*0.6mm
|
Glue pot heating tube power
|
1.2KW
|
||
|
Edge banding material
|
PVC
|
Pressure beam motor power
|
0.37KW
|
||
|
Plate thickness
|
18-25mm
|
Pressing wheel heating tube power
|
0.02KW*7
|
||
|
Minimum plate length (edge banding direction)
|
350mm
|
Edge banding strip preheating heating tube power
|
0.02KW*2
|
||
|
Minimum plate width
|
150mm
|
Crushing motor power
|
0.55KW
|
||
|
Vacuum interface size
|
Φ150mm
|
Simultaneous motor power
|
0.55KW*2
|
||
|
Overall dimensions
|
950*98*180CM
|
Trimming motor power
|
0.75KW*2
|
||
|
Weight
|
3500KG
|
Profile trimming motor power
|
0.55KW
|
||
|
Polishing motor
power |
0.37KW*2
|
|
|
||
|
Processing shape
|
Straight,bevele & straight,full J-shape,C-shape,left water,right water,left half J-shape,right half J-shape,left round half J-shape,right round half J-shape,left long triangle,right long triangle,triangle,trapezoid,cowhorn,arc.
|
Processing shape Straight,bevele & straight,full J-shape,C-shape,left water,right water,left half J-shape,right half J-shape,left
round half J-shape,right round half J-shape,left long triangle,right long triangle,triangle,trapezoid,cowhorn,arc. Polishing motor power 0.37KW*2 |
Processing shape Straight,bevele & straight,full J-shape,C-shape,left water,right water,left half J-shape,right half J-shape,left
round half J-shape,right round half J-shape,left long triangle,right long triangle,triangle,trapezoid,cowhorn,arc. Polishing motor power 0.37KW*2 |
||
Details Images
EDGE BANDER
SOFT VANEER,PVC,ACRYLIC,PMMA,ABS EDGE BANDERS
Automatic Edge bander application:
kitchin,cabinet,door,des,etc.
Recommend Products
FAQ
Q1: What is the warranty for the machine?
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
Warranty
1. AUCOX Provide 15 months warranty for all customers.
2. During warranty, we provide free normal spare parts once machine has probem.
3. AUCOX will solve customer's machine problem within 24 hours from the time problem raised.
4. AUCOX has enough spare parts for machines.
5. When machine out of warranty, AUCOX still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.
