Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qearim
-
Model Number:
-
P8-Q3-4M-10X
-
Style:
-
Four lens Three screen WIFI Camera
-
Product name:
-
IPC360 Home 16MP Four lens Wireless WiFi Camera Outdoor
-
Resolution:
-
16MP(4MP+4MP+4MP+4MP)
-
Power Supply:
-
DC12V
-
Night vision:
-
Support 3 kinds of night vision
-
Audio:
-
2 Ways Audio
-
Zoom:
-
10X hybrid zoom
-
Waterproof:
-
IP66 Water-proof
-
Lens:
-
4 lens*4MP
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof, PAN-TILT, Two-way Audio
-
Function:
-
Two-way Audio, PAN-TILT, RESET, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Built-in Siren, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qearim
-
Model Number:
-
P8-Q3-4M-10X
-
Style:
-
Four lens Three screen WIFI Camera
-
Product name:
-
IPC360 Home 16MP Four lens Wireless WiFi Camera Outdoor
-
Resolution:
-
16MP(4MP+4MP+4MP+4MP)
-
Power Supply:
-
DC12V
-
Night vision:
-
Support 3 kinds of night vision
-
Audio:
-
2 Ways Audio
-
Zoom:
-
10X hybrid zoom
-
Waterproof:
-
IP66 Water-proof
-
Lens:
-
4 lens*4MP
Specification

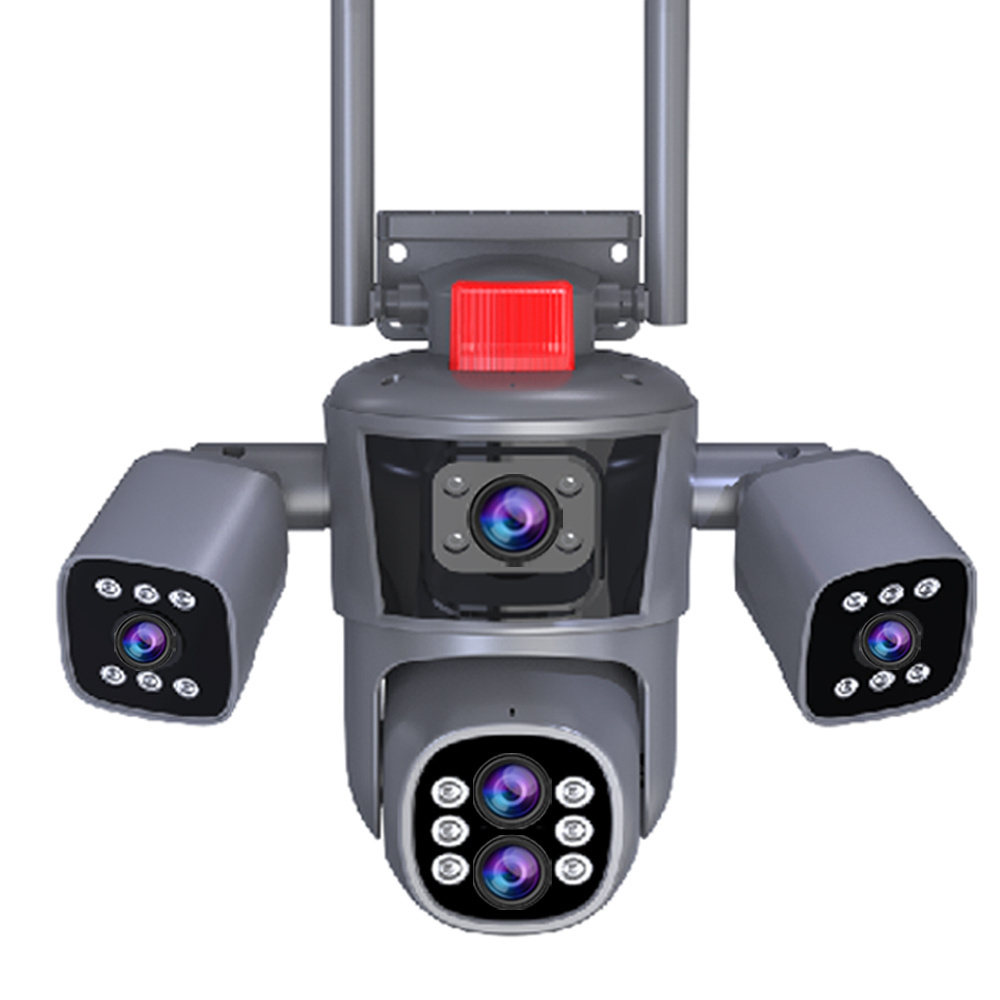

IPC360 Home 16MP Four lens Wireless WiFi Outdoor Camera 360 Home Security Surveillance CCTV IP Camera
For more inforation , pls click here to contact our sales.
Product Description
|
Model
|
Model
|
P8-Q3-4M-10X
|
|
|
Name
|
3 screen 10X zoom WIFI Camera
|
|
Video camera
|
Appearance and material
|
3.5-inch spherical, high-strength plastic shell
|
|
|
Processor
|
T31
|
|
|
Type of sensor
|
1/3 CMOS
|
|
|
Minimum illuminance
|
5Lux @(F2.0AGC ON), 2.3 Lux with IR;
|
|
|
Shutter
|
Shutter adaptive
|
|
|
Camera lens
|
four lenses
|
|
|
The angle of the head
|
Horizontal 0°-355°, vertical 0°-90°
|
|
|
Lens interface type
|
M12
|
|
|
Day and night change mode
|
Automatic, ICR infrared filter type
|
|
|
Infrared irradiation distance
|
30 meters (varied by environment)
|
|
|
Digital noise reduction
|
2D/3D digital noise reduction
|
|
|
Wide dynamic range
|
Digital wide dynamics
|
|
Audio and video
|
Video compression standard
|
Smart H.264 ultra-low code stream
|
|
|
Video compression code rate
|
Code rate adaptive
|
|
|
Audio compression standard
|
G.711a/k8
|
|
|
Audio compression code rate
|
Code rate adaptive
|
|
|
Audio working mode
|
Single-work two-way
|
|
|
Audio and video cloud storage
|
Three-way 1080p synchronous storage, synchronous look back
|
|
|
Audio and video local storage
|
Micro SD, three-way 1080p synchronous storage, synchronous look back
|
|
|
Real-time preview
|
Three pictures, three-way 1080p synchronous preview,
|
|
|
Image size
|
HD:2560x1440, SD:640x360
|
|
|
Frame rate
|
15 frames (day)/12 frames (night)
|
|
|
Image settings
|
Mirroring/flip
|
|
|
Backlight compensation
|
Hold out
|
|
Network function
|
Intelligent alarm
|
Input: Humanoid Detection/Mobile Tracking/Mobile Alarm Output: Linkage Light
|
|
|
One-click configuration
|
Intelligent configuration, hot spot AP configuration, manual addition
|
|
|
Interface protocol
|
Cloud Private Protocol
|
|
|
General functions
|
Three-code stream, mirroring, password protection
|
|
Port
|
Storage interface
|
Micro SD card (maximum 128G) or cloud storage
|
|
|
Power interface
|
Φ5.5 Round head power interface
|
|
|
Resump interface
|
Support tailline key reset (requires tailline to be supported)
|
|
|
Wired network port
|
Support RJ45 network port (10/100M adaptive)
|
|
Wireless parameters
|
Wireless standard
|
802.11b/g/n
|
|
|
Frequency
|
2.4 GHz
|
|
|
Channel bandwidth (channel)
|
Support 20MHz
|
|
|
Safe
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
|
|
Transmission rate
|
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
|
|
Cloud services
|
Cloud services
|
Puwei Video Cloud PDES Cloud Encryption
|
|
|
APP
|
IPC360 Home (App Store IPC360 Home Download)
|
|
|
Cloud storage
|
Puwei Video Cloud
|
|
General norms
|
Operating temperature and humidity
|
-10°C~50°C, 10%~90 (no condensation)
|
|
|
Power supply
|
DC12V-2A±10%
|
|
|
Power consumption
|
<5W without night vision
|
|
|
Packge
|
18pcs/CTN
|
|
|
Weight
|
1.2kgs/pcs
|
|
|
Carton size
|
71*49*55cm
|
