Quick Details
-
Warranty:
-
12years
-
Brand Name:
-
Karstsolar/OEM/ODM
-
Model Number:
-
KSM-565-585/144-S5
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2278*1134*35(30)mm
-
Application:
-
Commercial
-
Product name:
-
Photovoltaic Solar Panels
-
Solar cell:
-
TOPCon 182-16BB
-
No.of cells:
-
144(6x24)
-
Cable Length:
-
300mm(+)/300mm(-)
-
Cable Cross Section Size:
-
4mm²(IEC)
-
Junction Box:
-
IP68,3 diodes
-
Connector:
-
MC4 Compatible
-
Packaging:
-
31/620pcs 37/740pcs
-
OEM Order:
-
Customized Solar Panel Aavilable
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, TOPCON
-
Panel Efficiency:
-
22.64%
-
Warranty:
-
12years
-
Brand Name:
-
Karstsolar/OEM/ODM
-
Model Number:
-
KSM-565-585/144-S5
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2278*1134*35(30)mm
-
Application:
-
Commercial
-
Product name:
-
Photovoltaic Solar Panels
-
Solar cell:
-
TOPCon 182-16BB
-
No.of cells:
-
144(6x24)
-
Cable Length:
-
300mm(+)/300mm(-)
-
Cable Cross Section Size:
-
4mm²(IEC)
-
Junction Box:
-
IP68,3 diodes
-
Connector:
-
MC4 Compatible
-
Packaging:
-
31/620pcs 37/740pcs
-
OEM Order:
-
Customized Solar Panel Aavilable
Product Overviews
|

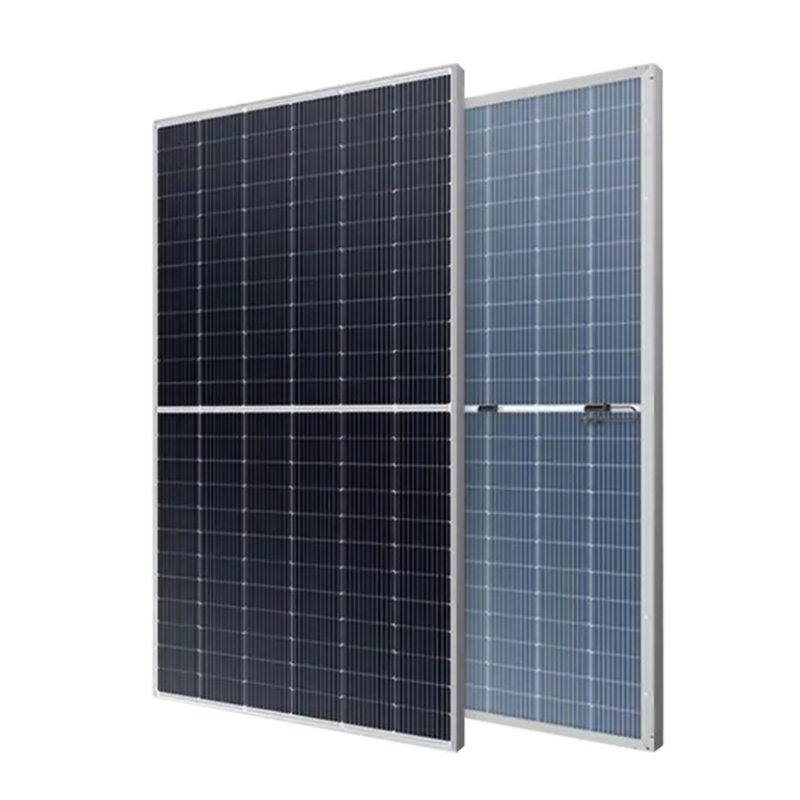

TOPCon 182-16BB
|
182mm Half-Cell High Efficiency PV Module
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV NORD.
PID Resistance
Excellent Anti-PID performance guarantee limited power degradation for mass production.(Potential Induced Degradation) under the test conditions.
High Efficiency
Higher module conversion efficiency(up to 22.24%) benefit from half cell structure(low resistance characteristic).
Low-light Performance
Advanced glass and cell surface textured design ensure
excellent performance in low-light environment.
Severe Weather Resilience
Certified to withstand:Wind load(2400 pascal)
and snow load(5400 pascal).
12-year Warranty for Materials and Processing
30-year Warranty for Extra Linear Power Output
|
| Module Type | KSM-565/144-S5 | KSM-570/144-S5 | KSM-575/144-S5 | KSM-580/144-S5 | KSM-585/144-S5 | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 565 | 425 | 570 | 429 | 575 | 433 | 580 | 436 | 585 | 440 |
| Open Circuit Voltage(Voc/V) | 50.60 | 48.05 | 50.74 | 48.15 | 50.88 | 48.29 | 51.02 | 48.42 | 51.16 | 48.55 |
| Short Circuit Current(Isc/A) | 14.23 | 11.51 | 14.31 | 11.55 | 14.39 | 11.62 | 14.47 | 11.68 | 14.55 | 11.74 |
| Voltage at Maximum Power(Vmp/V) | 41.92 | 39.46 | 42.07 | 39.59 | 42.22 | 39.68 | 42.37 | 39.75 | 42.52 | 39.87 |
| Current at Maximum Power(Imp/A) | 13.48 | 10.76 | 13.55 | 10.85 | 13.62 | 10.92 | 13.69 | 10.98 | 13.76 | 11.04 |
| Module Efficiency(%) | 21.87 | 22.06 | 22.25 | 22.44 | 22.64 | |||||
