Quick Details
-
Power:
-
14kw, 14kw
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
YUANXING
-
Maximum Digging Height:
-
4427mm
-
Maximum Digging Depth:
-
2830mm
-
Machine Weight:
-
2750 kg
-
Max Digging Radius:
-
4835mm
-
Rated Speed:
-
2.6/4.5km/h
-
Marketing Type:
-
New Product 2024
-
Engine Model:
-
Kubota
-
Rubber track:
-
300mm
-
Machine weight:
-
2750kg
-
Boom length:
-
2200mm
-
Arm length:
-
1300mm
-
Max. Digging height:
-
4427mm
-
Max. Digging depth:
-
2830mm
-
Overall dimension (L*W*H):
-
4195mm*1550mm*2480mm
Quick Details
-
Operating Weight:
-
3ton
-
Bucket capacity:
-
0.1m³
-
Engine Brand:
-
Kubota
-
Power:
-
14kw, 14kw
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
YUANXING
-
Maximum Digging Height:
-
4427mm
-
Maximum Digging Depth:
-
2830mm
-
Machine Weight:
-
2750 kg
-
Max Digging Radius:
-
4835mm
-
Rated Speed:
-
2.6/4.5km/h
-
Marketing Type:
-
New Product 2024
-
Engine Model:
-
Kubota
-
Rubber track:
-
300mm
-
Machine weight:
-
2750kg
-
Boom length:
-
2200mm
-
Arm length:
-
1300mm
-
Max. Digging height:
-
4427mm
-
Max. Digging depth:
-
2830mm
-
Overall dimension (L*W*H):
-
4195mm*1550mm*2480mm

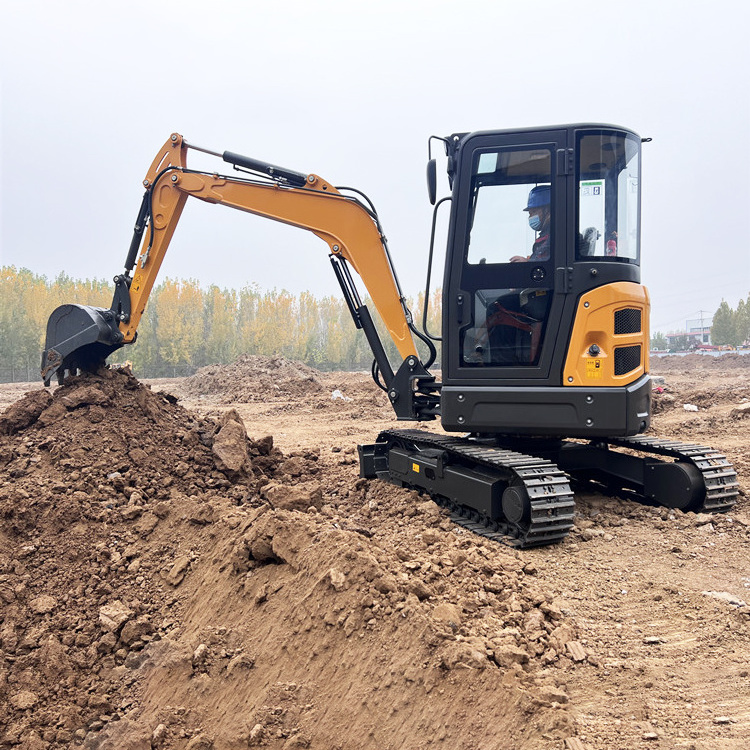

YXE-30 Crawler Excavator
1-KUBOTA D1105 engine,14kw/2200rpm,EPA4,Euro 5
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-china brand driving motor
6-closed cabin （Optional）
7-Hydraulic pilot servo operation system
8-Rubber track :300mm
9-With Hydraulic hammer pipeline system
10-Bucket capacity:0.1m
|
ENGINE
|
|
|
|
Emission Standard
|
EPA4/EURO 5
|
|
|
Make
|
KUBOTA
|
|
|
Model
|
D1105
|
|
|
Power /Rotation speed
|
14kw(19HP)@2200rpm
|
|
|
Number of cylinder
|
3
|
|
|
Type
|
Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated
|
|
|
Max. torque of engine
|
70.3Nm/ 1600rpm
|
|
|
Displacement of engine
|
1.123L
|
|
|
Engine oil capacity
|
5.1L
|
|
|
TRACK SYSTEM
|
|
|
|
Maximum Travel speed(High-Low speed)
|
2.6/4.5km/h
|
|
|
Width of track shoe(Rubber )
|
300mm
|
|
|
Carrier roller(one side)
|
1
|
|
|
Support wheel(one side)
|
3
|
|
|
PERFORMANCE PARAMETER
|
|
|
|
Standard bucket capacity
|
0.1m³
|
|
|
Width of standard bucket
|
500mm
|
|
|
Swing speed
|
10 rpm
|
|
|
Max. Grade ability
|
58%
|
|
|
Max. Bucket digging force
|
23.5KN
|
|
|
Max. Arm digging force
|
14KN
|
|
|
Hydraulic system pressure
|
20.5Mpa
|
|
|
Ground pressure
|
24Kpa
|
|
|
Machine weight
|
2750kg
|
|
|
Fuel tank capacity
|
23L
|
|
|
Hydraulic oil tank capacity
|
24L
|
|
|
Flow of main pump(Variable piston pump)
|
61.6L/ min
|
|
|
MACHINE SIZE
|
|
|
|
Overall dimension (L*W*H)
|
4195mm*1550mm*2480mm
|
|
|
Axle base(Track length on ground)
|
1565mm
|
|
|
Track gauge
|
1250mm
|
|
|
Min.Ground clearance
|
286mm
|
|
|
Swing radius at tail
|
860mm
|
|
|
Boom length
|
2200mm
|
|
|
Arm length
|
1300mm
|
|
|
WORKING RANGE
|
|
|
|
Max. Digging height
|
4427mm
|
|
|
Max. Dumping height
|
3005mm
|
|
|
Max. Digging depth
|
2830mm
|
|
|
Max. Vertical digging depth
|
2530mm
|
|
|
Max. Digging radius
|
4835mm
|
|
|
Min .swing radius at front
|
2160mm
|
|
|
Max. Lifting height of blade
|
308mm
|
|
|
Max. Cutting depth of blade
|
363mm
|
|
|
Boom swing angle(Left)
|
69°
|
|
|
Boom swing angle(Right)
|
45°
|
|
