Quick Details
-
Applicable Industries:
-
Stone cutting
-
Production Capacity:
-
200sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
3800mmx2100mmx1600mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Working area:
-
1300*2500*500mm
-
Keyword:
-
3d Stone Carving Machine
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Control system:
-
DSP Control System
-
Application:
-
granite marble quartz
-
Motor:
-
Stepper Motor
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Spindle speed:
-
24000r/min
-
Cutting thickness:
-
0.5-100mm
-
Transmission:
-
Ball Screw
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
5.5 KW
-
Cutting thickness (max):
-
8mm
-
Applicable Industries:
-
Stone cutting
-
Production Capacity:
-
200sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
3800mmx2100mmx1600mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Working area:
-
1300*2500*500mm
-
Keyword:
-
3d Stone Carving Machine
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Control system:
-
DSP Control System
-
Application:
-
granite marble quartz
-
Motor:
-
Stepper Motor
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Spindle speed:
-
24000r/min
-
Cutting thickness:
-
0.5-100mm
-
Transmission:
-
Ball Screw

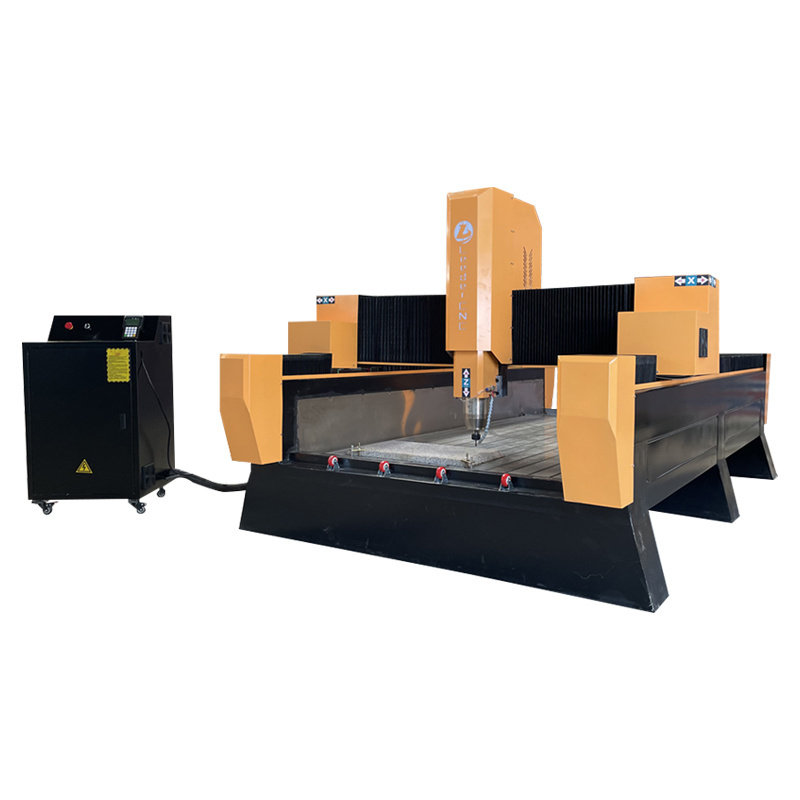

# It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
# The table has a sinking design, which can make the stone CNC machine run more smoothly.
# The Z-axis motor has a brake function, which can prevent the machine head from falling and hitting the table.
# The dustproof design prevents debris from entering the guide rail, effectively prolonging the service life of the guide rail.
# With a movable rotary device, it can be used for engraving cylindrical workpieces.
Specification
|
X,Y,Z Working Area
|
1300*2500*500mm|4*8ft
|
|
Spindle Power
|
5.5kw water cooling spindle
|
|
Table Surface
|
T-slot table + stainless steel water tank
|
|
Max. Rapid Travel Rate
|
30m/min
|
|
Max. Working Speed
|
20m/min
|
|
Cutting Thickness
|
According materials
|
|
Drive Motors
|
Stepper motor and driver
|
|
Control System
|
DSP/NC Studio
|
|
X, Y Structure
|
Taiwan linear guide 25#
|
|
Command Language
|
G code
|
|
Interface
|
USB
|
|
Running Environment
|
Temperature: 0℃~45℃ Relative Humidity: 50%~85%
|
|
Voltage
|
AC 380V (Optional)
|
