Quick Details
-
Table Travel (Y) (mm):
-
550 mm
-
Dimension(L*W*H):
-
2620X2260X2600MM
-
Weight (T):
-
5.5 T
-
Table Travel (Z) (mm):
-
600 mm
-
Positioning Accuracy (mm):
-
±0.005/300 JIS
-
Repeatability (X/Y/Z) (mm):
-
±0.003 JIS
-
Range of Spindle Speed(r.p.m):
-
40 - 8000
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000
-
Rapid Feed Speed(m/min):
-
36/36/30
-
Warranty:
-
12 MONTHS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEIDA
-
Voltage:
-
Customer's Requirement
-
Certification:
-
CE, ISO9001
-
Production name:
-
vmc 850 vertical milling machine
-
Guideway type:
-
Taiwan Linear guideway
-
ballscrew type:
-
Taiwan Hiwin ballscrew
-
Spindle:
-
Taiwan 8000rpm spindle
-
Tool magazine type:
-
Taiwan arm type
-
magazine capacity:
-
24pcs
-
lubrication:
-
auto lubrication
-
tapping fuction:
-
rigid tapping
-
protection:
-
full protection
-
spindle taper:
-
BT40
Quick Details
-
Table Size (mm):
-
1000*550
-
Number of Axes:
-
3, 4
-
Table Travel (X) (mm):
-
850 mm
-
Table Travel (Y) (mm):
-
550 mm
-
Dimension(L*W*H):
-
2620X2260X2600MM
-
Weight (T):
-
5.5 T
-
Table Travel (Z) (mm):
-
600 mm
-
Positioning Accuracy (mm):
-
±0.005/300 JIS
-
Repeatability (X/Y/Z) (mm):
-
±0.003 JIS
-
Range of Spindle Speed(r.p.m):
-
40 - 8000
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000
-
Rapid Feed Speed(m/min):
-
36/36/30
-
Warranty:
-
12 MONTHS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEIDA
-
Voltage:
-
Customer's Requirement
-
Certification:
-
CE, ISO9001
-
Production name:
-
vmc 850 vertical milling machine
-
Guideway type:
-
Taiwan Linear guideway
-
ballscrew type:
-
Taiwan Hiwin ballscrew
-
Spindle:
-
Taiwan 8000rpm spindle
-
Tool magazine type:
-
Taiwan arm type
-
magazine capacity:
-
24pcs
-
lubrication:
-
auto lubrication
-
tapping fuction:
-
rigid tapping
-
protection:
-
full protection
-
spindle taper:
-
BT40

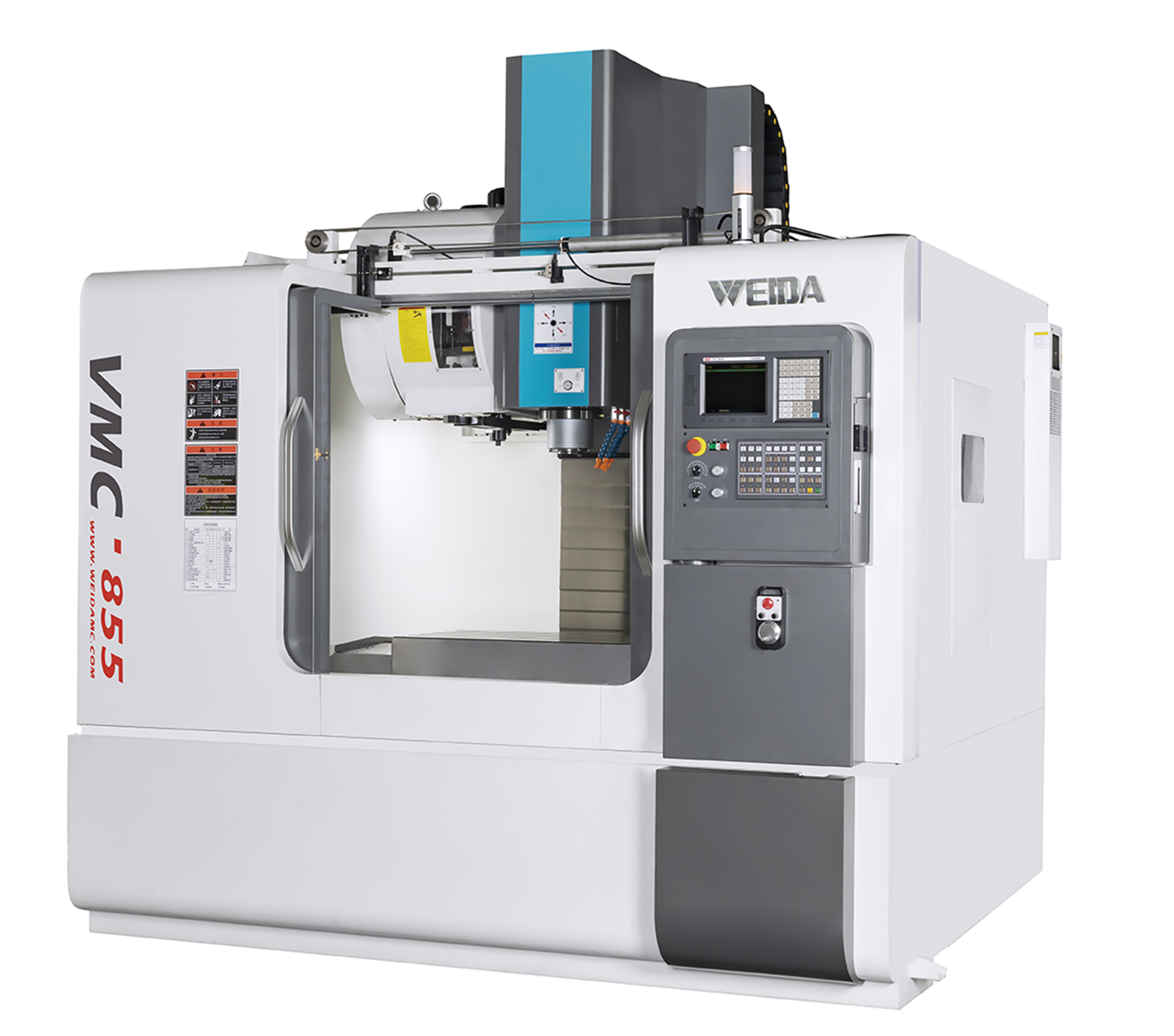

ATC Cnc machining center vmc 850 vertical milling machine with cnc controller
| specifications | Unit | VMC855 |
| Table size | mm | 1000×550 |
| T-slot | 5-18-100 | |
| Max. load | kg | 500 |
| Travel X, Y, Z | mm | 850×550×600 |
| Spindle nose to table surface | mm | 100~700 |
| Rapid feed speed X, Y, Z | m/min | 36/36/30 |
| Feed speed X, Y, Z | mm/min | 1~10000 |
| Spindle Taper | BT40 | |
| Spindle Speed | r/min | 40~8000 |
| Spindle power | kw | 7.5 |
| Tool magazine with capacity | 24 | |
| Min. time of tool change(tool-tool/cut-cut) | s | 1.75/5 |
| Positioning accuracy | mm | ±0.005/300 JIS |
| Re-positioning accuracy | mm | ±0.003 |
| Overall dimension | mm | 2620*2260*2600 |
| Machine weight | kg | 5500 |
vmc 850 vertical milling machine is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.
International advanced linear rolling guide way pair are adopted on X, Y shafts, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~8000 rpm,rapid speed is 36/36/30m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality control.
We will test every machines carefully in different status by our professional engineers to make sure our machines quality. For linear guides cnc milling machine , we will test the accuracy by Renishaw laser interferometer and will make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines' quality.
Machine model:vmc 850 vertical milling machine
Type of package: Plywood case
Packing dimension:
289X228X255CM
Suitable Container and quantity:
40 High container: 4sets
Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.
Optional accessories
VMC850 vertical cnc milling machining center for metal can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
All our machines have been passed CE certification,such as cnc vertical center machine ,vertical machining
center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc
From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine quality. When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical will be installed, finally, the machine will be assembled well and tested. We will control each step, so finally, there should be no problem for assembled machine. We will deliver an qualified machine to you.
Processing equipment
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line . Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.
