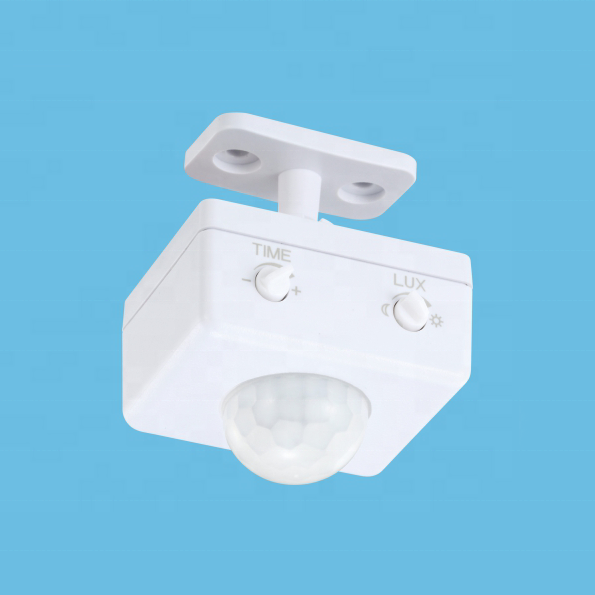

Ceiling Mount Sensor ST36B 360 Degree detector Infrared Pir Motion Sensor

360 Degree Ceiling Mount With CE ROHS REACH Approval ST36B Infrared Motion Sensor IR Motion sensor PIR Sensor

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.

SPECIFICATION:

Power Source: 110-240V/AC                                                             Detection Range: 360°

Power Frequency: 50/60Hz                                                                Detection Distance: 8m max(<24℃)

Time Delay: Min.10sec±3sec                                                              Ambient Light: <3-2000LUX (adjustable)

Max.10min±2min                                                              Working Temperature: -20~+40℃

Rated Load: Max.1200W (220-240V/AC)(incandescent lamp)           Working Humidity: <93%RH

800W (110-130V/AC)(incandescent lamp)             Power Consumption: approx 0.5W

300W (220-240V/AC) (energy-saving lamp)           Installation Height: 2-4m

200W (110-130V/AC)(energy-saving lamp)            Detection Moving Speed: 0.6-1.5m/s

Lifetime and Warranty:

FUNCTION :

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction period, it will compute time once more on the basic of the first time-delay rest

INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

Ø  Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.

Ø  Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.

Ø  Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.

CONNECTION:

Ø  Install the plastic base onto the sensor with two screws (refer to the figure 1) .The sensor and plastic base is apart when leaving factory.

Ø  Fix the plastic base with inflated screw on the selected position (refer to the figure 2).

Ø   Connect the power wire with the sensor according to the connection-wire diagram.

Ø  Switch on the power and test it.

CONNECTION-WIRE DIAGRAM : (See the below figure)

TEST:

Ø  Turn the LUX knob clockwise to the maximum (SUN position). Turn the TIME knob anti-clockwise to the minimum (-).

PRODUCT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.

CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on reserching and developing the contemporary household intelligent product.Our poduct can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
