Quick Details
-
CPU:
-
ARM Cortex-A7 528MHz, 32-bit ARM Cortex-A7 528MHz
-
RAM:
-
512 MB
-
SSD:
-
8 GB
-
Operation System:
-
Linux 4.9
-
Compatible Devices:
-
Linux 4.9
-
printer technology:
-
none
-
Place of Origin:
-
Guangdong, China
-
Standard Communication:
-
4G+WIFI+Ethernet
-
Standard Version:
-
With 2D barcode scanner module
-
Functions:
-
NFC Reader+GPS+Buzzer+Audio speaker+RTC
-
SAM Sockets:
-
4 ID -000 slots
-
Certification:
-
IP54/CE/FCC/RoHS
-
Display:
-
4.3 inch 160*80 dot matrix LCD display
-
Supply Voltage:
-
8 - 40 V DC
-
Type:
-
Bus/Parking Ticketing System
-
Warranty:
-
1 Year
Quick Details
-
Model Number:
-
P18-L2C
-
Country of Origin:
-
China
-
Brand Name:
-
HCCTG
-
CPU:
-
ARM Cortex-A7 528MHz, 32-bit ARM Cortex-A7 528MHz
-
RAM:
-
512 MB
-
SSD:
-
8 GB
-
Operation System:
-
Linux 4.9
-
Compatible Devices:
-
Linux 4.9
-
printer technology:
-
none
-
Place of Origin:
-
Guangdong, China
-
Standard Communication:
-
4G+WIFI+Ethernet
-
Standard Version:
-
With 2D barcode scanner module
-
Functions:
-
NFC Reader+GPS+Buzzer+Audio speaker+RTC
-
SAM Sockets:
-
4 ID -000 slots
-
Certification:
-
IP54/CE/FCC/RoHS
-
Display:
-
4.3 inch 160*80 dot matrix LCD display
-
Supply Voltage:
-
8 - 40 V DC
-
Type:
-
Bus/Parking Ticketing System
-
Warranty:
-
1 Year
Product Description

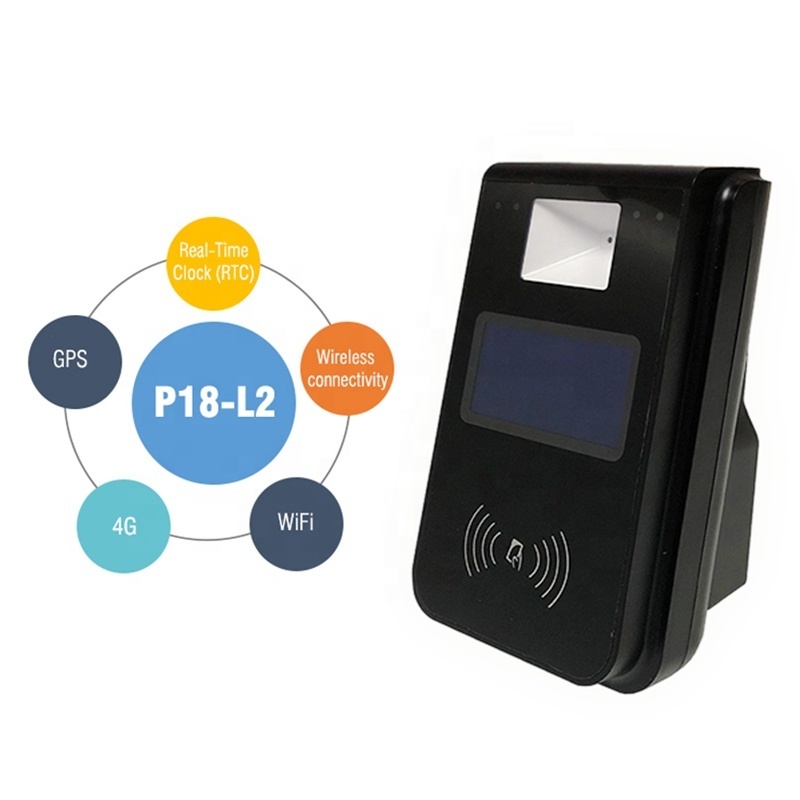

P18-L2C Bus Validator
is perfectly suitable for various types of
automatic fare collection systems
, e.g. for buses, trams and other transportation means. With GPS features, the P18 enables you to locate the vehicle and set fare flexibly with reference to distance.
|
OS
|
Linux 4.9
|
|
|
Processor
|
32-bit ARM Cortex-A7 528GHz
|
|
|
Memory
|
|
|
|
DDR (RAM)
|
512 MB
|
|
|
EMMC (Flash)
|
8 GB
|
|
|
SPI Flash
|
64 MB
|
|
|
FRAM
|
8 KB
|
|
|
Power
|
|
|
|
Supply Voltage
|
9 – 48 V DC
|
|
|
Supply Current
|
Max. 2A
|
|
|
Over Voltage Protection
|
Supported
|
|
|
Over Current Protection
|
Supported
|
|
|
Connectivity
|
|
|
|
RS232
|
3 lines R*D, T*D and GND without flow control
|
|
|
RS485
|
3 lines A, B and GND
|
|
|
Ethernet
|
Built-in 10/100-base-T with RJ45 connector
|
|
|
USB
|
USB 2.0 Host Full Speed
|
|
|
GSM/GPRS/EDGE
|
900 MHz/1800 MHz
|
|
|
Dual Band UMTS/HSDPA/HSPA+
|
B1/B8
|
|
|
Dual Band TD-SCDMA
|
B34/B39
|
|
|
Four-Band FDD-LTE
|
B1/B3/B7/B8
|
|
|
Four-Band TDD-LTE
|
B38/B39/B40/B41
|
|
|
WiFi
|
IEEE 802.11 b/g/n
|
|
|
GPS
|
Supported
|
|
|
Barcode Scanner
|
|
|
|
1D Barcode Scanning
|
Supported
|
|
|
2D Barcode Scanning
|
Supported
|
|
|
QR Code Scanning
|
Supported
|
|
|
Contactless Smart Card Interface
|
|
|
|
Standard
|
ISO-14443 A & B part 1-4, ISO-18092
|
|
|
Protocol
|
Mifare® Classic Protocols, T=CL, FeliCa
|
|
|
Smart Card Read /Write Speed
|
Up to 424 kbps
|
|
|
Operating Distance
|
Up to 50 mm
|
|
|
Operating Frequency
|
13.56 MHz
|
|
|
SAM Card Interface
|
|
|
|
Number of Slots
|
4 ID -000 slots
|
|
|
Card connect slot
|
Contact
|
|
|
Standard
|
ISO/IEC 7816 Class A, B (5V, 3V)
|
|
|
Protocol
|
T=0, T=1
|
|
|
Smart Card Read /Write Speed
|
9,600-115,200 bps
|
|
|
Firmware Upgrade Interface
|
|
|
|
Firmware Upgradeable through
|
RS232
|
|
|
Built-in Peripherals
|
|
|
|
LCD Display
|
160×80 dot-matrix LCD display with backlight, 4.3 inch
|
|
|
Speaker
|
Supported
|
|
|
Buzzer
|
Supported
|
|
|
LED Status Indicators
|
4LEDs for indicating status (from left most: blue, yellow, green, red)
|
|
|
Other Features
|
Real Time Clock
|
|
|
Working environment
|
Temperature: -20℃～60℃
|
|
|
|
Humidity: 5℅～93℅(Non-condensing)
|
|
|
Storage environment
|
Temperature:－30℃～80℃
|
|
|
|
Humidity: 5℅～95℅(non-condensing)
|
|
|
Physical Specifications
|
|
|
|
Dimensions
|
227mm×140mm×99mm
|
|
|
Case Color
|
Black
|
|
|
Weight
|
880g
|
|
|
Certifications/Compliance
|
ISO-7816, ISO-14443, CE, FCC, RoHS, Contactless L1/L2, IK08/EN50155,
IP54 |
|
