Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**CX2(3)/203
-
Name:
-
3 position rotary selector push button switch with short handle
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
safety cover:
-
AQG7 Transparent protective cover
-
Certificate:
-
CCC CE ROSH
-
web:
-
http://en.cjel.com
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54/IP65
-
Max. Current:
-
AC-15 220V/5.5A
-
Max. Voltage:
-
500V
-
Place of Origin:
-
China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**CX2(3)/203
-
Name:
-
3 position rotary selector push button switch with short handle
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
manual rotation
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
safety cover:
-
AQG7 Transparent protective cover
-
Certificate:
-
CCC CE ROSH
-
web:
-
http://en.cjel.com
-
Certification:
-
CE

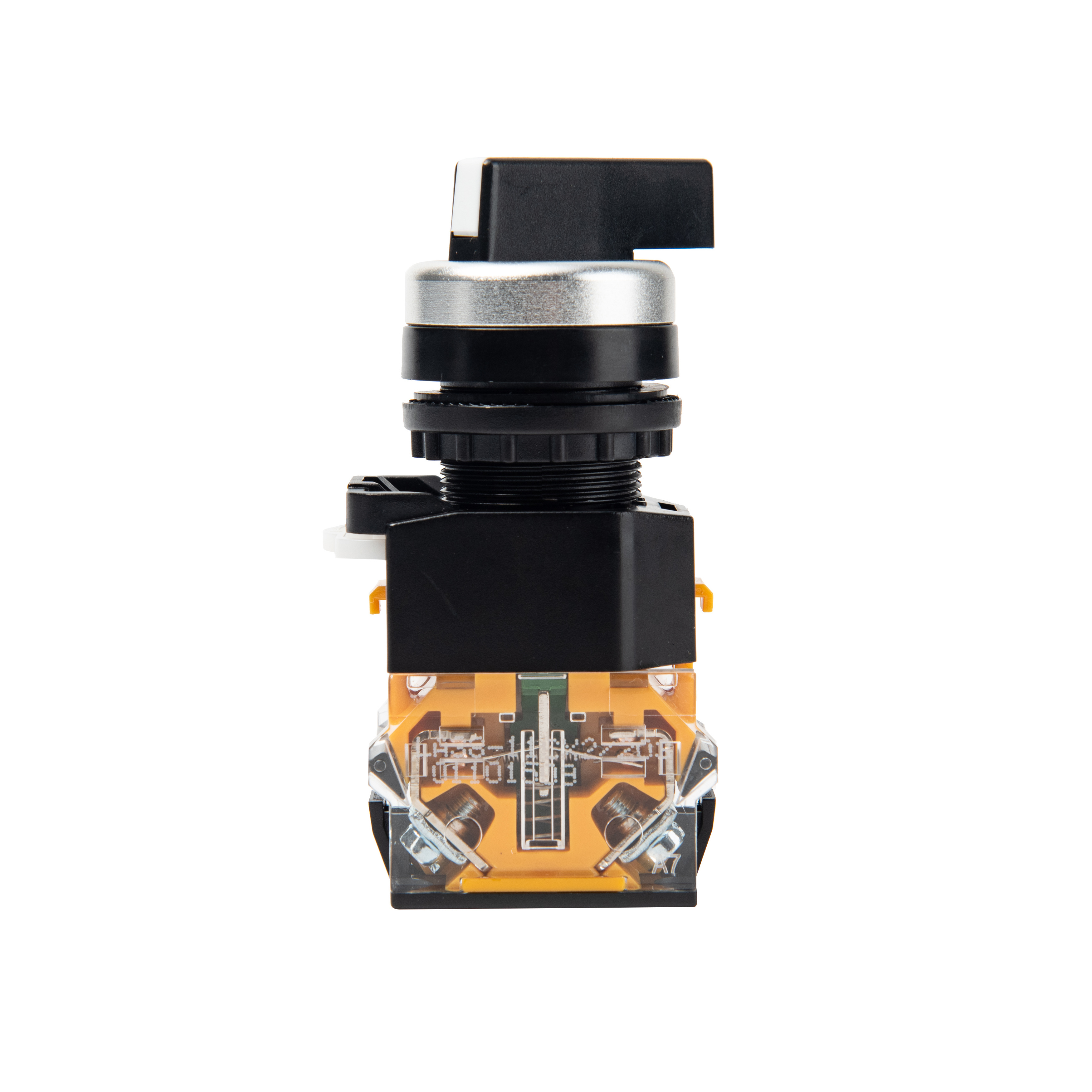

22mm plastic 2 or 3 position rotary selector push button switch with short handle
China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996 . When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd
Outline
|
LA38-**CX2(3)/203 |
|||||||||
|
Name |
2 or 3 position rotary switch,short handle (**means contact,10:1NO,01:1NC,11:1NO+1NC,20: 2NO,02: 2NC,and so on ) |
||||||||
|
Products Standard |
GB/T14048.5 IEC60947-5-1 |
||||||||
|
Operation Condition |
Altitude height |
Environment temperature |
Storage temperature |
Relative humidity |
Pollution class |
Install type |
|||
|
≤2000m |
-25℃~+55℃ |
-40℃~+70℃ |
≤90% |
3 |
Ⅲ |
||||
|
Main technical index |
|
Rated insulated Voltage |
500V |
||||||
|
Rated impulse withstand voltage |
4000V |
||||||||
|
Insulated resistance |
≥50MΩ |
||||||||
|
protection degree |
can customize IP65 |
||||||||
|
Withstand Voltage |
1.89KV/5S |
||||||||
|
button parameter |
Stipulated hot current Ith |
10A |
|||||||
|
Contact resistance |
≤50mΩ |
||||||||
|
Type Rated working Voltage /Current |
AC-15 |
DC-13 |
|||||||
|
220V/5.5A 380V/4A |
220V/0.45A 110V/1A |
||||||||
|
Electrical life |
10E4 times |
||||||||
|
Mechanical life |
20E4 times |
||||||||
Certificate
About us
Our company was founded in 1992, it is a strong capital and continuous innovation manufacturer,This enables us to provide the most advanced and competitively-priced products and services available today.OEM also can available, Customers' designs are warmly welcome.
Company history
1972-1992 Jiangyin transistor factory
1992-1993 Jiangyin Changjiang electronic industrial company
1993-1996 Jiangyin Changjiang electronic industrial corporation
1997-2002 Jiangyin Changjiang electric appliance Co., Ltd.
Jiangyin Changjiang electronic industry Co., Ltd.
2003- Jiangyin Changjiang electric appliance Co., Ltd.
Department and production line
FAQ
Q:Why choose us?
A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.
2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.
3.Certified by ISO9001:2015/CCC/CE/ROHS
Q:After-sale service
1. Indicator light:2 years' warranty; switch: 18 months' warranty.
2. Parts replacement for free
3. Free tech support .
Q:How long is your delivery time?
A:Door to door international express costs 5-7 days in general.
.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Contact us for more details about price,packing,shipping and discount.
