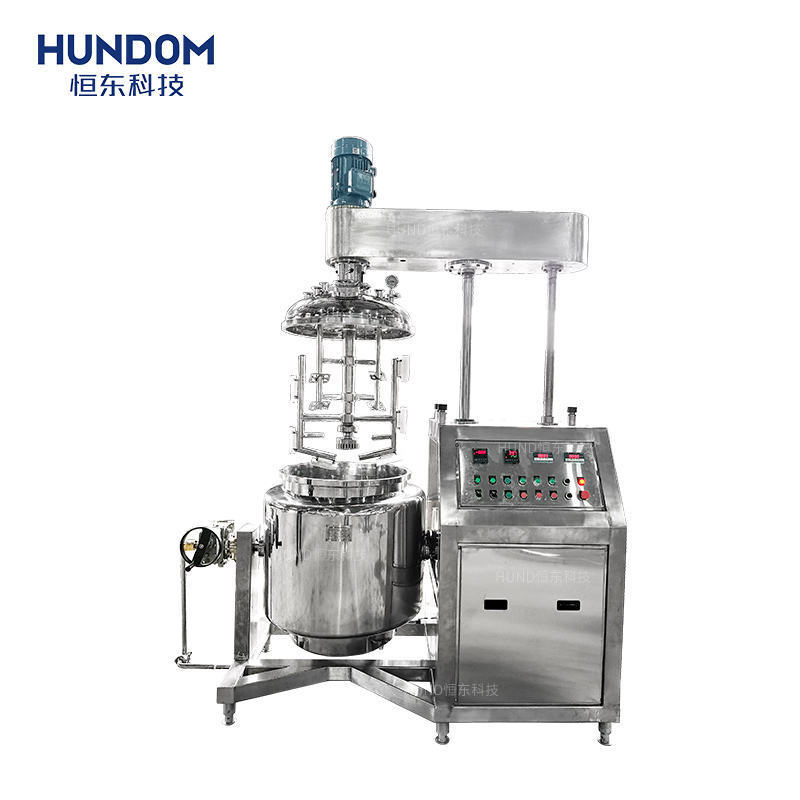

HENGDON 50L-1000L Customized Stainless Steel Cosmetics Mixer Machine Shampoo Cream Lotion Homogenizer Mixing Tank With Lifting

HENGDON 50L-1000L Customized Stainless Steel Cosmetics Mixer Machine Shampoo Cream Lotion Homogenizer Mixing Tank With Lifting

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Loading Capacity:: 10000

Weight (KG):: 300 KG

Place of Origin:: Zhejiang, China

Brand Name:: HUNDOM

Voltage:: 220V-480V, customized, 220V/380V/400V/415V/480V

Dimension(L*W*H):: can be customized

Power (kW):: 7.5 kW

Marketing Type:: Hot Product 2021

power:: 0.75-75KW

speed:: 0-65rpm,0-2800rpm

Heating method:: electric/steam/constant temp external circulation

Mixing type:: Homogenizer / agitator / propeller

insulation material:: PU Foam / rock wool

Function:: Heating , cooling and mixing

certificate:: CE

Quick Details

Barrel Volume (L):: 1000

Max. Loading Volume (L):: 1000 L

Range of Spindle Speed(r.p.m):: 1 - 3000 r.p.m

Max. Loading Capacity:: 10000

Weight (KG):: 300 KG

Place of Origin:: Zhejiang, China

Brand Name:: HUNDOM

Voltage:: 220V-480V, customized, 220V/380V/400V/415V/480V

Dimension(L*W*H):: can be customized

Power (kW):: 7.5 kW

Marketing Type:: Hot Product 2021

power:: 0.75-75KW

speed:: 0-65rpm,0-2800rpm

Heating method:: electric/steam/constant temp external circulation

Mixing type:: Homogenizer / agitator / propeller

insulation material:: PU Foam / rock wool

Function:: Heating , cooling and mixing

certificate:: CE

Products Description

Application:

It is widely used in dairy industry, food industry, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling,insulation, sterilization treatment or storage of slurry must be stainless steel mixing tanks, especially for pasteurization of milk and
insulation, ice cream production line is the necessary equipment.

Material: SS304 / 316L;
Capacity: 50-1000L ( customized is accepted );
Configuration with agitator and/or homogenizer ;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: steam, electricity;

Parameters：

Capacity	Heating power (KW)	Inner diameter(mm)	Jacket diameter (mm)	Speed(rpm)	power(KW)
HD-50L	4*2	400	600	23-600/2800	0.75kw/2.2kw
HD-100L	6*2	500	700	23-600/2800	1.1kw/3.0kw
HD-300L	6*4	800	1000	23-600/2800	2.2kw/4.0kw
HD-500L	9*4	900	1100	23-600/2800	3.0kw/7.5kw
HD-1000L	12*4	1200	1400	23-600/2800	4.0kw/11kw

Structure:

The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.

Single layer

the inner layer: adapts stainless steel plate SS304 or 316L material, and the surface mirror polishing.

Double jacket

the jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.

Three layers

the external insulation layer: the environmental polyurethane foam casting/ p erlite particles , maintaining the temperature difference with the outside, to the effect of insulation.

Reducer

Reducer output shaft connected with the stirring paddle, the use of looper connection, easy disassemble and cleaning.

Additional devices

Sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge, ladder, (Other special customized requirements from customers are acceptable.)

Agitator and emulsifier

Mixing speed rpm and impeller type can be customized according to customers’ request. Such as：

Anchor with scrapers

Frame with scrapers

Dispenser（single/ double/three layers ）

Triple impeller（double/three layers）

Turbine disk

P itched paddles

Ribbon mixer

Top entry high shear emulsifier

Bottom entry high shear emulsifier

Anchor+ Dispenser

Anchor+ Top e mulsifier

Anchor+ Bottom emulsifier

A nchor+ Emulsifier+ Dispenser

Anchor+ Emulsifier+ Pitched paddles

(one-direction/ Coaxial double-direction )

......

Type A: suitable for materials that are easy to mix and have no requirement for fineness.

Type B: applied to vacuum/pressure tank, mechanical seal is installed on the shaft to prevent liquid/gas leakage.
Type C: more suitable for materials that are not easy to mix and have requirement for fineness.
Type D: installed at the bottom of the tank and is usually used with overhead mixer together.

High Shear Mixer

A .Top entry

To be used both in open cover atmospheric pressure tank and sealed with manhole vacuum/positive pressure tank.

B .Bottom entry

It is outstanding when the liquid level in the tank gets very low during operation, or the space is limited. What is more, strong vortex as well as aeration is greatly reduced with the bottom mounted mixers.
