- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Aluminum alloy speed gate
-
Material:
-
Aluminum Alloy
-
Warranty:
-
2 Years
-
Size:
-
1400*168*1000mm
-
Power supply:
-
AC220V±, 50Hz
-
MCBF:
-
10 Million Times
-
Color:
-
Customized Color
-
Passage Width:
-
600-800mm
-
Motor:
-
DC Brushless Motor
-
Application:
-
Security Access Control Management
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZECHENG
-
Model Number:
-
ZC-B168
-
Product name:
-
Aluminum alloy speed gate
-
Material:
-
Aluminum Alloy
-
Warranty:
-
2 Years
-
Size:
-
1400*168*1000mm
-
Power supply:
-
AC220V±, 50Hz
-
MCBF:
-
10 Million Times
-
Color:
-
Customized Color
-
Passage Width:
-
600-800mm
-
Motor:
-
DC Brushless Motor
-
Application:
-
Security Access Control Management
Product Description

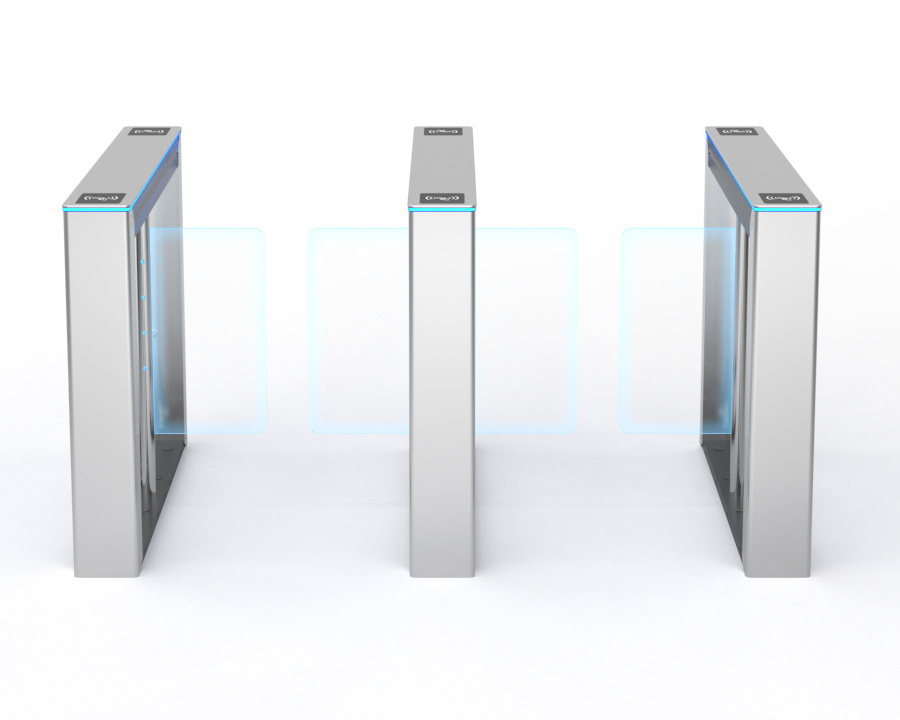

The aluminum alloy speed turnstile gate is a high-tech product mainly for intelligent management of personnel passages. It is an upgraded product of intelligent speed gates and swing gates. This product has fine processing, complete functions, and high-grade. It is mainly used in high-end communities, smart buildings, hotels, High-end places such as subways, docks, clubs, etc.
Specification
|
Physical size (mm):
|
1400 (length) × 168 (width) × 1000 (height)
|
|
Cabinet material:
|
Aluminum alloy, body multi-color customization
|
|
Material thickness (mm):
|
1.5
|
|
Passage width (mm):
|
800 (standard)
|
|
Gate wing material:
|
Plexiglass
|
|
Gate wing size (mm):
|
350 (width) × 600 (length) × 8 (thickness)
|
|
Response time of gate opening and closing:
|
<0.1 second
|
|
Gate wing running speed:
|
≥ Rad/s (adjustable)
|
|
Average number of failure-free operations:
|
10 million times
|
|
Passage target detection:
|
4 groups of infrared beams
|
|
Passing speed:
|
≥50 people/min (normally closed mode)
|
|
Application environment:
|
indoor/outdoor
|
|
Working temperature:
|
-30℃～60℃
|
|
Working humidity:
|
≤90%, no condensation
|
|
Power supply:
|
AC220V±, 50Hz
|
|
Average power consumption (W):
|
60
|
