Quick Details
-
Cylinder:
-
6-cylinder
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEICHAI
-
Dimension(L*W*H):
-
1185*744*1083mm
-
Weight:
-
750
-
Rated power/speed:
-
168KW/2525
-
Model:
-
WP6C250-25
-
Rated Power:
-
WEICHAI
-
Rated speed:
-
2425rpm
-
Application:
-
boat/ship
Quick Details
-
Displacement:
-
6.75L
-
Emission Standard:
-
IMO TIER 2
-
Power:
-
180HP, 200 kW, 160 Kw, 160KW
-
Cylinder:
-
6-cylinder
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEICHAI
-
Dimension(L*W*H):
-
1185*744*1083mm
-
Weight:
-
750
-
Rated power/speed:
-
168KW/2525
-
Model:
-
WP6C250-25
-
Rated Power:
-
WEICHAI
-
Rated speed:
-
2425rpm
-
Application:
-
boat/ship

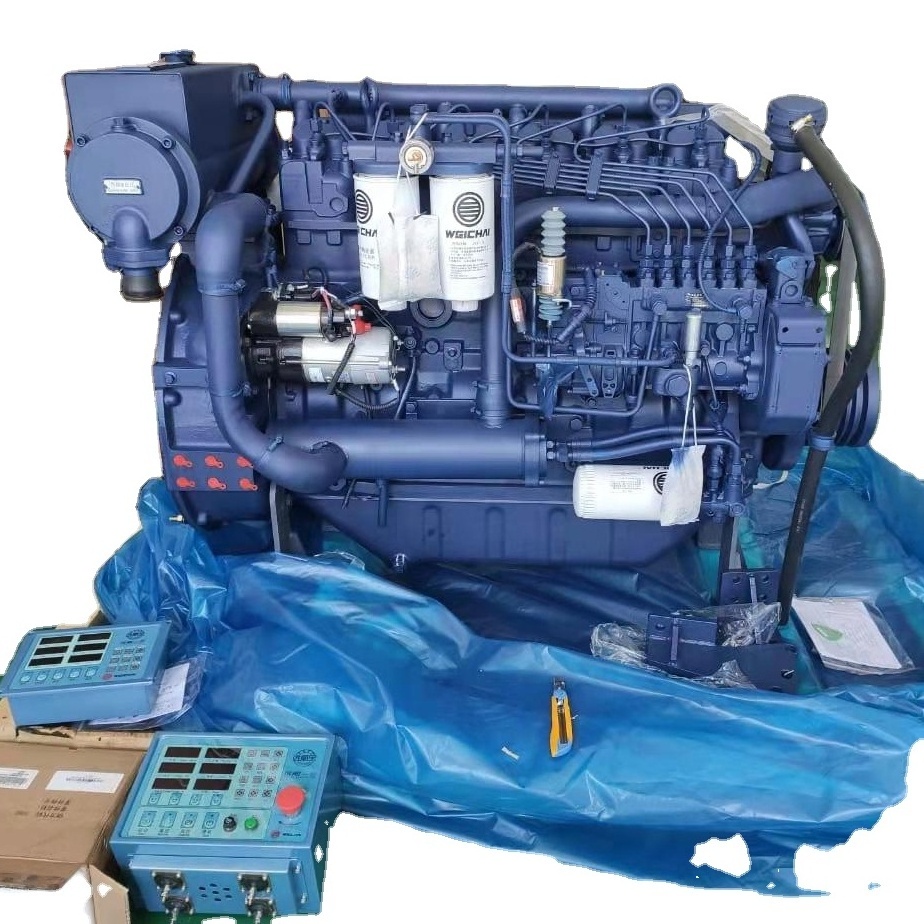

weichai Marine Diesel Engine WP6C250-25 Assembly with gearbox
Model Portfolio Table
| Series | Model | Air intake mode | Rated power kW/Ps |
Speed r/min |
Fuel feeding mode |
| WP6C122-15 | Turbocharged | 90/122 | 1500 | mechanical pump | |
| WP6C140-23 | Turbocharged | 103/140 | 2300 | mechanical pump | |
|
WP6C142-18 |
Turbocharged | 105/142 | 1800 | mechanical pump | |
| WP6C | WP6C150-15 | Turbocharged and intercooled | 110/150 | 1500 | mechanical pump |
| WP6C156-21 | Turbocharged | 115/156 | 2100 | mechanical pump | |
| WP6C185-21 | Turbocharged and intercooled | 136/185 | 2100 | mechanical pump | |
| WP6C198-23 | Turbocharged and intercooled | 145/198 | 2300 | mechanical pump | |
| WP6C220-23 | Turbocharged and intercooled | 162/220 | 2300 | mechanical pump |
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged/turbocharged and intercooled | Number of cylinders | 6 |
| Cylinder Bore/stroke | 105×130(mm) | Displacement | 6.75L |
| Oil consumption rate | ≤0.8g/kW·h | Noise | ≤105dB(A) |
| Minimum fuel consumption rate | 195g/kW·h | Idle speed | 650±30r/min |
| Torque reserve | 20-35% |
Rotation direction of crankshaft
(facing the flywheel end) |
Counter-clockwise |
|
Dimensions
|
1185×744×1083(mm) 750kg
|
||
Marine diesel engine Detail Display
(1) Engine Block ( 2) Cylinder Head (3) Crankshaft
(4) Flywheel (5 )Front and Rear Cover (6)Other Casting Parts
