Quick Details
-
Fiber Type:
-
G652D or Customized
-
Characteristics:
-
Self-supporting
-
Package:
-
Plywood Reel/customized
-
Jacket Material:
-
PE PVC LSZH HDPE
-
Messenger wire:
-
Steel Wire
-
Color:
-
Black
-
Operating temperatur:
-
-40℃~85℃
-
Warranty Time:
-
3 years
-
Certification:
-
CE/ROHS/ISO9001, CCC, ce
Quick Details
-
Brand Name:
-
KEXINT
-
Model Number:
-
GYXTC8S
-
Place of Origin:
-
Guangdong, China
-
Fiber Type:
-
G652D or Customized
-
Characteristics:
-
Self-supporting
-
Package:
-
Plywood Reel/customized
-
Jacket Material:
-
PE PVC LSZH HDPE
-
Messenger wire:
-
Steel Wire
-
Color:
-
Black
-
Operating temperatur:
-
-40℃~85℃
-
Warranty Time:
-
3 years
-
Certification:
-
CE/ROHS/ISO9001, CCC, ce
Products Description
Product Description：

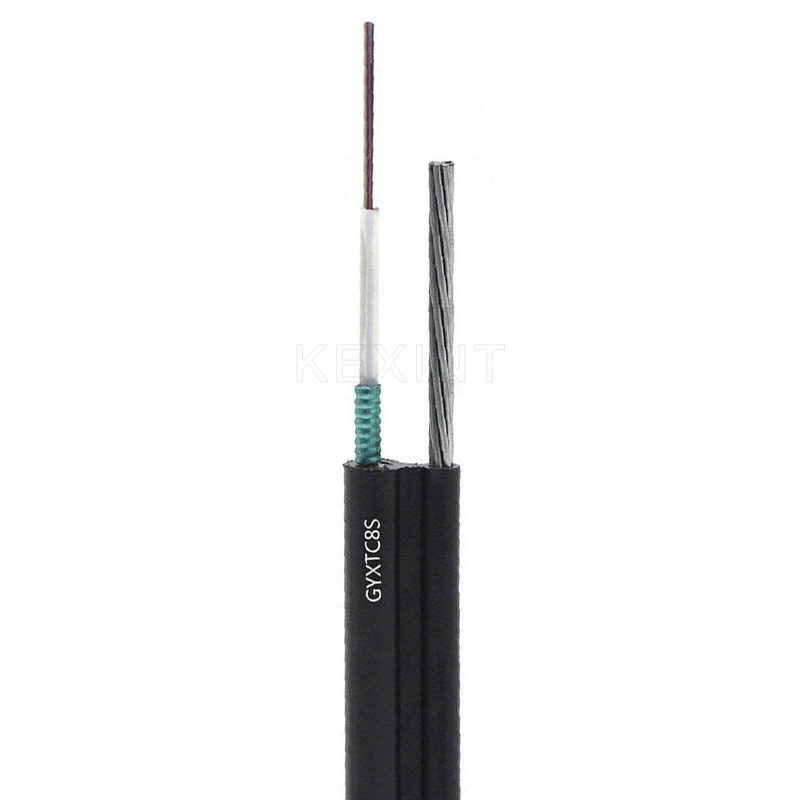

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Product Characteristics：
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.
Optical Fibre
Performance：
|
Type
|
Attenuation(+20℃)
|
|
|
|
Bandwidth
|
|
Numerical aperture
|
||||
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
|
||||
|
G.652
|
---
|
---
|
≤0.36dB/km
|
≤0.22dB/km
|
---
|
---
|
---
|
||||
|
G.655
|
---
|
---
|
≤0.40dB/km
|
≤0.23dB/km
|
---
|
---
|
---
|
||||
|
50/125µm
|
≤3.3dB/km
|
≤1.2dB/km
|
---
|
---
|
≥500MHz·km
|
≥500MHz·km
|
0.200±0.015 NA
|
||||
|
62.5/125µm
|
≤3.5dB/km
|
≤1.2dB/km
|
---
|
---
|
≥200MHz·km
|
≥500MHz·km
|
0.275±0.015 NA
|
||||
Technical Performance：
|
Cable Type
|
Fiber Count
|
Cable Diameter
mm |
Cable Weight kg/km
|
Supporting Wire Spec
|
Connection Diameter
|
Tensile Strength
Long/Short Term N |
Crush Resistance
Long/Short Term N/100mm |
Bending Radius
Static /Dynamic mm |
|
GYXTC8S
|
2~12
|
7.65×14.5
|
118
|
Φ1.0mm*7
Stranded wires |
Height×Width
3.0×2.5 mm |
1000/2500
|
300/1000
|
80/160
|
|
GYXTC8S
|
14~24
|
8.2×15.1
|
129
|
Φ1.0mm*7
Stranded wires |
Height×Width
3.0×2.5 mm |
600/1500
|
300/1000
|
90/180
|
