Quick Details
-
Optical Resolution:
-
≥4mil
-
Scan Speed:
-
300times/S
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
Image Sensor:
-
Image CMOS Sensor
-
Image Pixels:
-
640*480 CMOS
-
Cable(Optional):
-
USB 2.0m,RS232 2.0m
-
Dimensions:
-
85mm*85mm*155mm(L*W*H)
-
Weight:
-
250g
-
Product name:
-
2D Barcode Scanner
-
Fill light:
-
Red
-
Interface:
-
2.4G wireless + Buetooth
-
Battery:
-
2000amh
-
Reading method:
-
Approach, Movement Reading
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
contact us
-
Optical Resolution:
-
≥4mil
-
Scan Speed:
-
300times/S
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
Image Sensor:
-
Image CMOS Sensor
-
Image Pixels:
-
640*480 CMOS
-
Cable(Optional):
-
USB 2.0m,RS232 2.0m
-
Dimensions:
-
85mm*85mm*155mm(L*W*H)
-
Weight:
-
250g
-
Product name:
-
2D Barcode Scanner
-
Fill light:
-
Red
-
Interface:
-
2.4G wireless + Buetooth
-
Battery:
-
2000amh
-
Reading method:
-
Approach, Movement Reading
Details Images
Product Paramenters
|

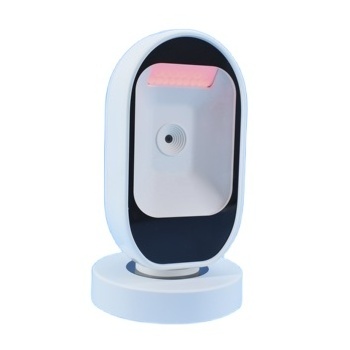

B2D-OW10 2D 2.4g wireless +bluetooth omni directional barcode scanner
|
|
|
|
|
||||
|
Scanning Mode
|
Image CMOS Sensor
|
|
|
|
||||
|
Scanning Speed
|
300times/S
|
|
|
|
||||
|
View angle
|
Horizontal 45°, Vertical 35°
|
|
|
|
||||
|
Precision
|
≥ 4mil
|
|
|
|
||||
|
Reading method
|
Approach, Movement Reading
|
|
|
|
||||
|
Depth of field
|
|
Depth of field(mm)
|
Moveing(m/s)
|
|
||||
|
1D
|
|
|
Horizontal
|
Vertical
|
||||
|
|
Code 128 10mil 18bytes
|
20~170
|
2.5
|
4
|
||||
|
|
EAN13 15mil 13bytes
|
10~280mm
|
2
|
6
|
||||
|
2D
|
QR 10mil 160bytes
|
10~100mm
|
2
|
|
||||
|
|
QR 20mil 11bytes
|
10~240mm
|
3
|
|
||||
|
|
DM 15mil 100bytes
|
20~160mm
|
1.5
|
|
||||
|
Scanning Angle
|
Rotation 360°，elevation ±65°，deflection ± 60°
|
|
|
|
||||
|
Decoding ability
|
international and domestic general Standard QR code，QR Code, Data Matrix, PDF417，etc
|
|
|
|
||||
|
|
International and domestic universal one-dimensional code standards
|
|
|
|
||||
|
|
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,
|
|
|
|
||||
|
|
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
|
|
|
|
||||
|
|
Industrial 2 of 5,Matrix 25, Standard 25, Codabar,
|
|
|
|
||||
|
|
MSI/MSI PLESSEY, GS1 DataBar,etc
|
|
|
|
||||
|
Print contrast
|
20%
|
|
|
|
||||
|
Fill light
|
Red
|
|
|
|
||||
|
Interface
|
2.4G wireless + Buetooth
|
|
|
|
||||
|
Battery
|
2000amh
|
|
|
|
||||
|
Dimension(mm)
|
85mm*85mm*155mm（L×W×H）
|
|
|
|
||||
|
Weight
|
250g
|
|
|
|
||||
|
Scann Mode
|
Command mode/Sensing mode/Trigger mode
|
|
|
|
||||
|
Prompt for successful reading
|
Voice、Green LED
|
|
|
|
||||
|
Cable（Optional）
|
USB 2.0m、RS232 2.0m
|
|
|
|
||||
|
Working Temperture
|
-30℃ ~ 70℃
|
|
|
|
||||
|
Storage Temperture
|
-40℃ ~ 80℃
|
|
|
|
||||
|
Humidity
|
5% ~ 95%（No condensation）
|
|
|
|
||||
|
Ambient light
|
Max.100,000 Lux
|
|
|
|
||||
|
input Voltage
|
5V
|
|
|
|
||||
|
Working Current
|
<500mA
|
|
|
|
||||
