Quick Details
-
Gear material:
-
Metal
-
Case material:
-
Aluminum Mid Case
-
Motor:
-
Brushed Motor
-
Torque:
-
9.6kg-cm/4.8V; 10.5kg-cm/6.0V
-
Speed:
-
0.15sec/60°/4.8V; 0.13sec/60°/6.0V
-
Dimension:
-
40*20*40mm
-
Weight:
-
58g / 2.0oz
-
Signal:
-
Digital
-
Bearing:
-
2BB
-
Brand Name:
-
K-power
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DMM090
-
Style:
-
Radio Control Toy
-
Gear material:
-
Metal
-
Case material:
-
Aluminum Mid Case
-
Motor:
-
Brushed Motor
-
Torque:
-
9.6kg-cm/4.8V; 10.5kg-cm/6.0V
-
Speed:
-
0.15sec/60°/4.8V; 0.13sec/60°/6.0V
-
Dimension:
-
40*20*40mm
-
Weight:
-
58g / 2.0oz
-
Signal:
-
Digital
-
Bearing:
-
2BB
-
Brand Name:
-
K-power
Product Description

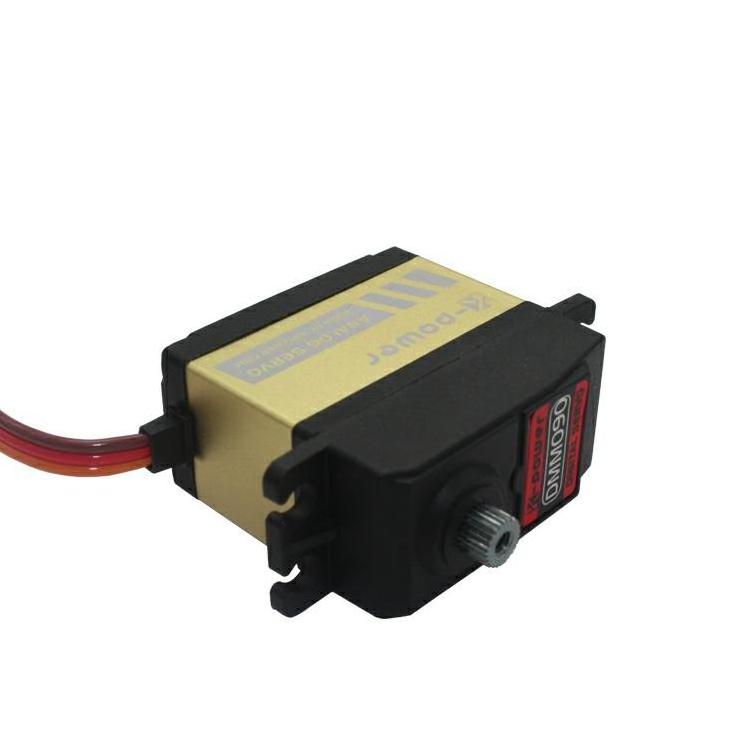

K-power DMM090 10kg torque metal gear standard sail winch servo for rc Yacht boat
Feature:
1.Standard size digital servo with metal gear and mid Aluminum case.
2.The Aluminum mid case design allows cooler and smoother operating temperature.
3.The metal gears form a solid construction for precise control and operation.
4.Dual ball bearings.
5.Ideal for 1:8 / 1:10 rc car throttle / steering servo.
Detailed Image
Servo Parameter
|
Model Type:
|
Digital Servo DMM090
|
|
|
||
|
Motor Type:
|
Brushed
|
|
|
||
|
Case material:
|
Aluminum Mid Case
|
|
|
||
|
Gear material:
|
Metal
|
|
|
||
|
Bearing Type:
|
2BB
|
|
|
||
|
Weight:
|
58g / 2.0oz
|
|
|
||
|
Dimension:
|
40*20*40mm/ 1.6*0.8*1.6in
|
|
|
||
|
Operation Voltage:
|
4.8-6V
|
|
|
||
|
Torque:
|
9.6kg-cm/4.8V; 10.5kg-cm/6.0V
|
|
|
||
|
|
132oz-in/4.8V; 145oz-in/6.0V
|
|
|
||
|
Speed:
|
0.15sec/60°/4.8V; 0.13sec/60°/6.0V
|
|
|
||
|
Pulse Width:
|
900-2100μs
|
|
|
||
|
Dead band width:
|
2μs
|
|
|
||
|
Interface Type:
|
JR / FT / JST1.5 / JST2.0 / Other
|
|
|
||
|
Operating Temperature:
|
-20 to 60 centigrade
|
|
|
||
|
Splining:
|
25T
|
|
|
||
|
Wire Length:
|
Based on your requirement
|
|
|
||
|
Certification:
|
CE & FCC
|
|
|
||
|
Application:
|
RC robot/airplane/car/boat
|
|
|
||
|
Service:
|
One year warranty. Customized and OEM are available.
|
|
|
||
If this servo does not match your demands, please kindly contact with us, we have hundreds of different types servos for optional, and we are professional rc servo manufacturer since 2005. Customizing servo according to client's demands is our advantage.
Servo Certifications
K-Power servo has CE, FCC, ROHS certifications.
Our Company
KPower Technology Co., Ltd. established in 2005, is located in Hengli Town, Dongguan City, Guangdong Prov.. It is a smart modeling enterprise integrating R&D, production and sales of precision transmission systems, motor control systems and robot steering gears. The company has a R&D center in Nanshan, Shenzhen, with 12000㎡ manufacturing site in Dongguan. The square production site provides customers with customized solutions for transmission design and production assembly. It also cooperates with many well-known engineering college laboratories and research institutes at home and abroad in production & research and talent training exchanges.
As a High Tech Enterprise, we have strong and excellent R&D team, skilled and experienced workers in manufacture. After years of hard R&D and innovation, we have obtained more than 100 patents. By now, we have developed thousands of relevant servos for different industries, to meet the various application requirements of customers.
Our workshop
CNC DEPT.
GEAR PROCESSING DEPT.
WELDING DEPT.
ASSEMBLY DEPT.
QC DEPT.
WAREHOUSE
FAQ
1.Are you a trading company or manufacturer?
-We are a manufacturer in China.
2. Can I OEM and print my own logo on the products?
-Yes, you can. Just provide us your design files, we will do all the rest for you.
3. How do I know if your products are of good quality?
-Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.
4. what is your mass production lead time?
Our production lead time is only around 7-15 days (according to the order QTY) .
5. Can I get a free sample?
-Some servos support free sample. Please contact us for more detailed information.
