Truck Battery Tester 12V 24V Digital Detector 7 LED Display Automotive Loading Test Car Motorcycle Diagnostic Tool

Truck Battery Tester 12V 24V Digital Detector 7 LED Display Automotive Loading Test Car Motorcycle Diagnostic Tool

FOB Reference Price: Get Latest Price

≥5 Pieces

US $3.77

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Models:: 12V/24v Battery

Place of Origin:: GUA

Brand Name:: OEM

Model Number:: ET2210

Warranty:: 12 Months

Product Name:: Automobile Battery Detector

Product function:: Detect Voltage And Battery Test

Weight:: 80g

Number of LED lights:: 7 indicators

Color:: Black/OEM

Connector:: 2 Battery Hookup

Product Size:: 53*140*17mm

Package Dimensions:: 57*37*150mm

Package:: Box Package

Quick Details

Car Fitment:: Universal

Voltage:: 12V/24v

Power:: 3W

Applicable Models:: 12V/24v Battery

Place of Origin:: GUA

Brand Name:: OEM

Model Number:: ET2210

Warranty:: 12 Months

Product Name:: Automobile Battery Detector

Product function:: Detect Voltage And Battery Test

Weight:: 80g

Number of LED lights:: 7 indicators

Color:: Black/OEM

Connector:: 2 Battery Hookup

Product Size:: 53*140*17mm

Package Dimensions:: 57*37*150mm

Package:: Box Package

Product Description

1.Product Description:

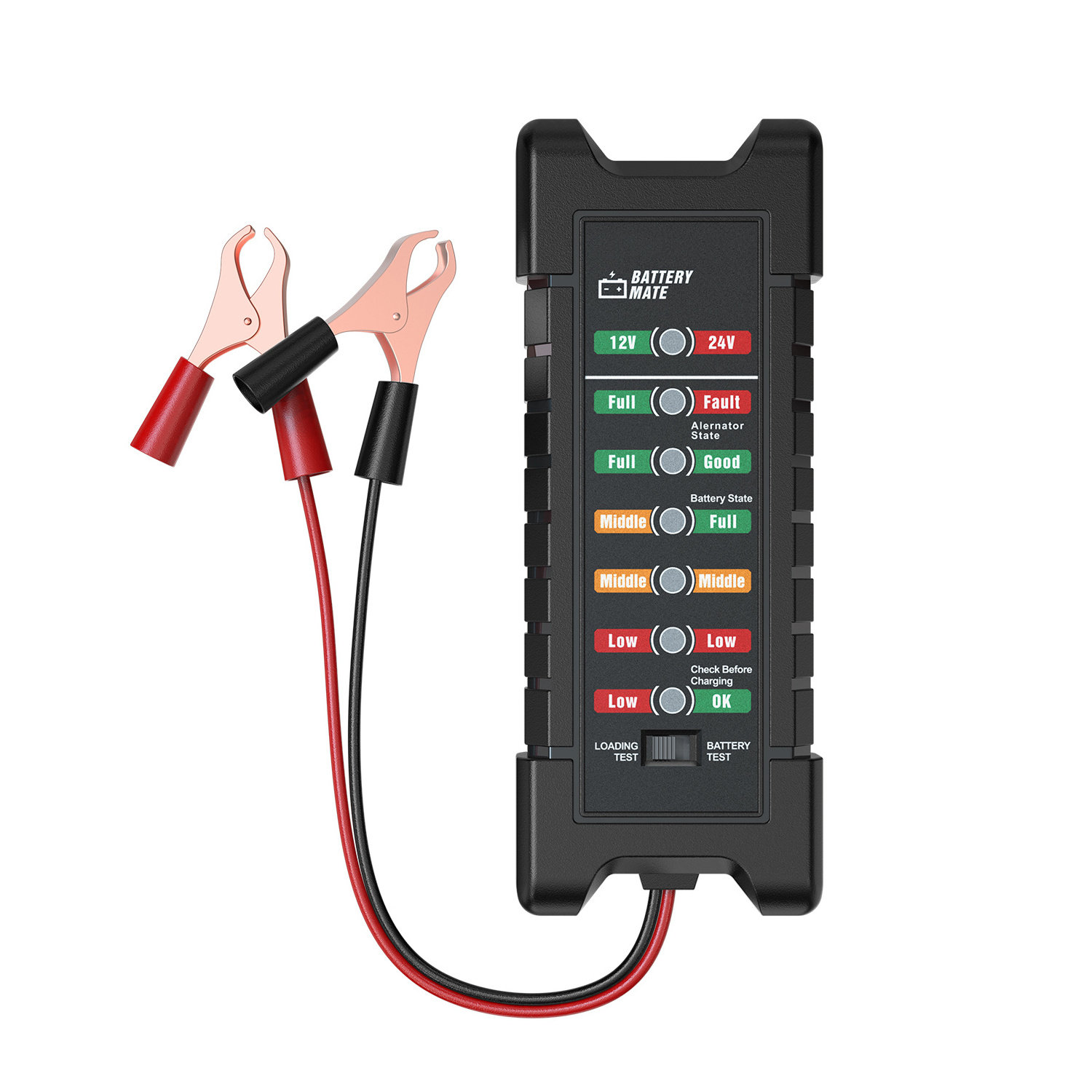

It is a portable car battery analyzer tool for daily use, perform fast and effective.

Switch to the left is Battery Load Test Mode:
*12V Green LED: Current test battery is 12V
* Full Green LED: Indicates that the battery is in good condition and has a good load capacity
* Middle Yellow LED: Indicating that the battery is in very moderate condition, the carrying capacity is average
* Low Red LED: Indicates poor battery condition and low load capacity

Switch to the right is Battery Charging Test Mode:
* 24V Red LED: Current test battery is 24V
* Fault Red LED: Abnormal battery condition, high voltage
* Good Green LED: Normal working voltage
* Full Green LED: Good battery condition
* Middle Yellow LED: Medium battery
* Low Red LED: Low power, need to be charged
* OK Green LED: Check before charging

How to operate it?

2. 12V/24V Battery Tester

For checking and testing the battery capacity, battery load capacity and the dynamo.

1) Connection: Attach the cabla clip of the red cable to the positive(+) of the battery and the black to the negative (-).

2) Checking The Dybamo: Connect the testing device. Start the engine and switch off the headlights, radio etc. Star the engine again and switch on the
headlights, radio etc. In both cases, then green signal LED "GOOD" should shine. The red signal LED " Defective" will start to shine if the dynamo in bad condition. If the situation happen, please go to local car workshop in your earliest time.

3) Checking The Charging Level: Switch on the headlights for 1-2 minutes, then switch off. Remove the cable clips from the battery, wait approx. 10 mins then switch the testing device on again. A signal LED will shine according to the charging status of the battery indicating " Full" "Half-full" or "Very low charge" .

4) Battery Start Capability:
The battery needs to be charged up to the maximum. Remove the connection of the ignition coil then connect the testing device. Try to start the vehicle using the key in the ignition switch. The engine cannot start (interrupted ignition). When the green signal LED "Battery OK" starts to shine, the charging status of the battery is ok.

5) Start The Battery Capability Load:
Switch to the loading test mode, then start the engine.
Full: six-five LED will be shine ;
Middle: four-three LED will be shine ;
Low: two-one LED will be shine, if no LED shine it means the battery capacity is very low, please charging the battery or change the battery.

Comment:
If the battery is not in good condition, the signal lamp "Battery OK" will start to go off and charging status of the battery LED will not light up.

Warning:
Please use the battery mate in safe area, and follow the instruction.
Parking The car in safe area before performing the testing.

Voltage Thresholds Details:
Please check the below table for reference.
The threshold might be a little different due to the different battery type, please go to professional car battery workshop for further testing if in emergency.

Details Images

Packing Delivery

Packaging

Generally, Individual packing with box/PE/Antiplastic Bag, a bubble bag for protection, then brown master carton outside. (Or per client's request)

Due to the facts that our model tress are very light in weight & packing may very depending on quantity of orders & destination. specific packaging can be made to order.

Packing list

1 x Host

1 x Carton box

1 x Manual

You also can customize your own package

Shipping

1. For small order, products will be shipped with 1-3 working days. For OEM/ODM order, please check the shipping time with us.
2. We can send out goods by express (UPS/DHL/TNT/FEDEX), by air, by sea. Or to your shipping agent/forwarder.
Our customer decides the way for delivery. We always get cheapest freight from forwarder for our customers.
