Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
leaka
-
Model Number:
-
M16-3
-
Product name:
-
m16 waterproof circular connector
-
Pin:
-
2pin,3pin,4pin,5pin,6pin,7pin,8pin,12pin,14pin,16pin,19pin,24pin
-
Coupling:
-
Threaded coupling
-
Termination:
-
Solder
-
Temperature range:
-
-25℃~85℃
-
MOQ:
-
1 pcs for sale
Quick Details
-
Type:
-
BNC
-
Application:
-
Power
-
Gender:
-
Male and female
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
leaka
-
Model Number:
-
M16-3
-
Product name:
-
m16 waterproof circular connector
-
Pin:
-
2pin,3pin,4pin,5pin,6pin,7pin,8pin,12pin,14pin,16pin,19pin,24pin
-
Coupling:
-
Threaded coupling
-
Termination:
-
Solder
-
Temperature range:
-
-25℃~85℃
-
MOQ:
-
1 pcs for sale
Product Description
The M16 connector is part of the circular connector family standardized by the International Electrotechnical Commission (IEC) under IEC 61076-2-106. These connectors are popular in industrial applications due to their robustness and reliability. Design: The M16 connector has a circular shape, with male and female components designed to fit together. The connector typically has a threaded coupling mechanism, ensuring a secure and reliable connection.
Variety:
M16 connectors come in various configurations, including different numbers of pins or sockets, as well as variations in voltage and current ratings. This allows them to be used in a wide range of applications, from data transmission to power distribution.
Materials:
M16 connectors are often made of durable materials such as metal or high-grade plastics, making them suitable for use in harsh environments where factors like moisture, dust, or vibration are present.
Applications:
These connectors find applications in diverse industries, including automotive, aerospace, machinery, telecommunications, and industrial automation. They are used for power transmission, signal transmission, data communication, and control purposes.
Waterproofing: Some variants of M16 connectors come with waterproof or IP-rated designs, making them suitable for outdoor or wet environments.
Standards:
M16 connectors are designed to meet specific industry standards to ensure compatibility and interoperability between different equipment and systems.
Customization:
While standard configurations are readily available, M16 connectors can also be customized to meet specific requirements of a particular application, including special pin arrangements, cable lengths, or protective coatings.
|
Product types
|

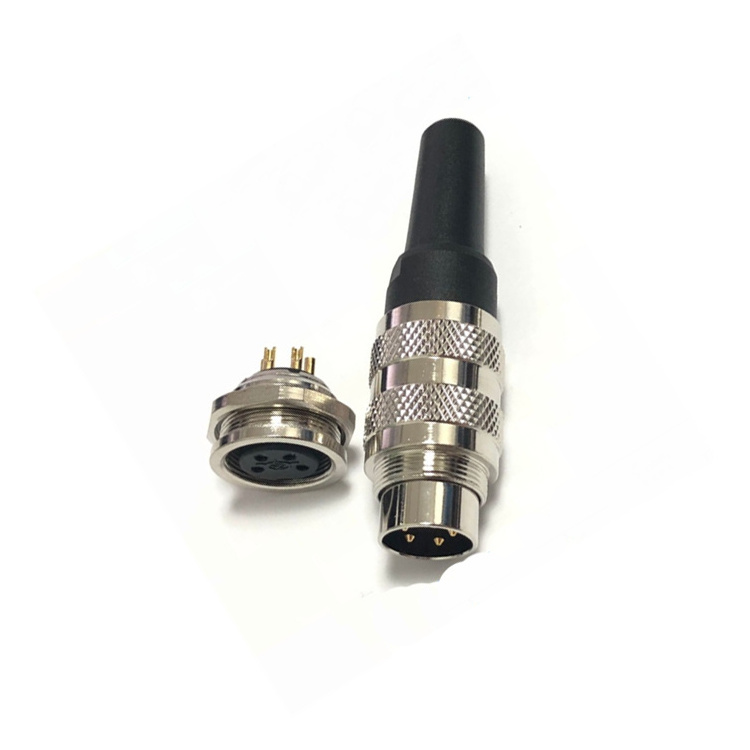

IP65 IP67 electrical plug socket m16 series 7 8 12 14 16 19 24 pin pole waterproof straight circular connector
|
|
Design Standard
|
IEC/EN 61984 Binder
|
|
Cable diameter
|
≤Ф 6.0mm~ ≤Ф 8.5mm
|
|
Shell material
|
Zinc alloys with nikelplate
|
|
Contact material
|
copper( silver/ gold plated)
|
|
Insert material
|
PA66+GF20%
|
|
Assemble way
|
assemble board
|
|
Solder cup mouth aperture
|
0.6~1
|
|
Solder inter diameter
|
0.5~1.5
|
|
Rated current/voltage
|
5A~7A, 60V~200V
|
|
Operation limit voltage(AC.V.rms)
|
125V~250V
|
|
Withstanding voltage( AC.V.rms) 1minute
|
500, 1500
|
|
Insulation resistance (MΩ MIN) at DC 500V
|
1000, 1500
|
|
contact resistance (MΩ MAX.) at DC 1A
|
7~12
|
|
Mating cycle
|
500
|
|
MOQ
|
1 PCS sample offer
|
|
Places of origin
|
Xiamen,Fujian,China(Mainland)
|
|
OEM
|
Yes,we accept
|
|
Payment terms
|
100 % T/T,escrow,MasterCard credit card,e-Checking,Paypal,VISA
|
|
Delivery time
|
3-45 days depends on buying stock or OEM order
|
